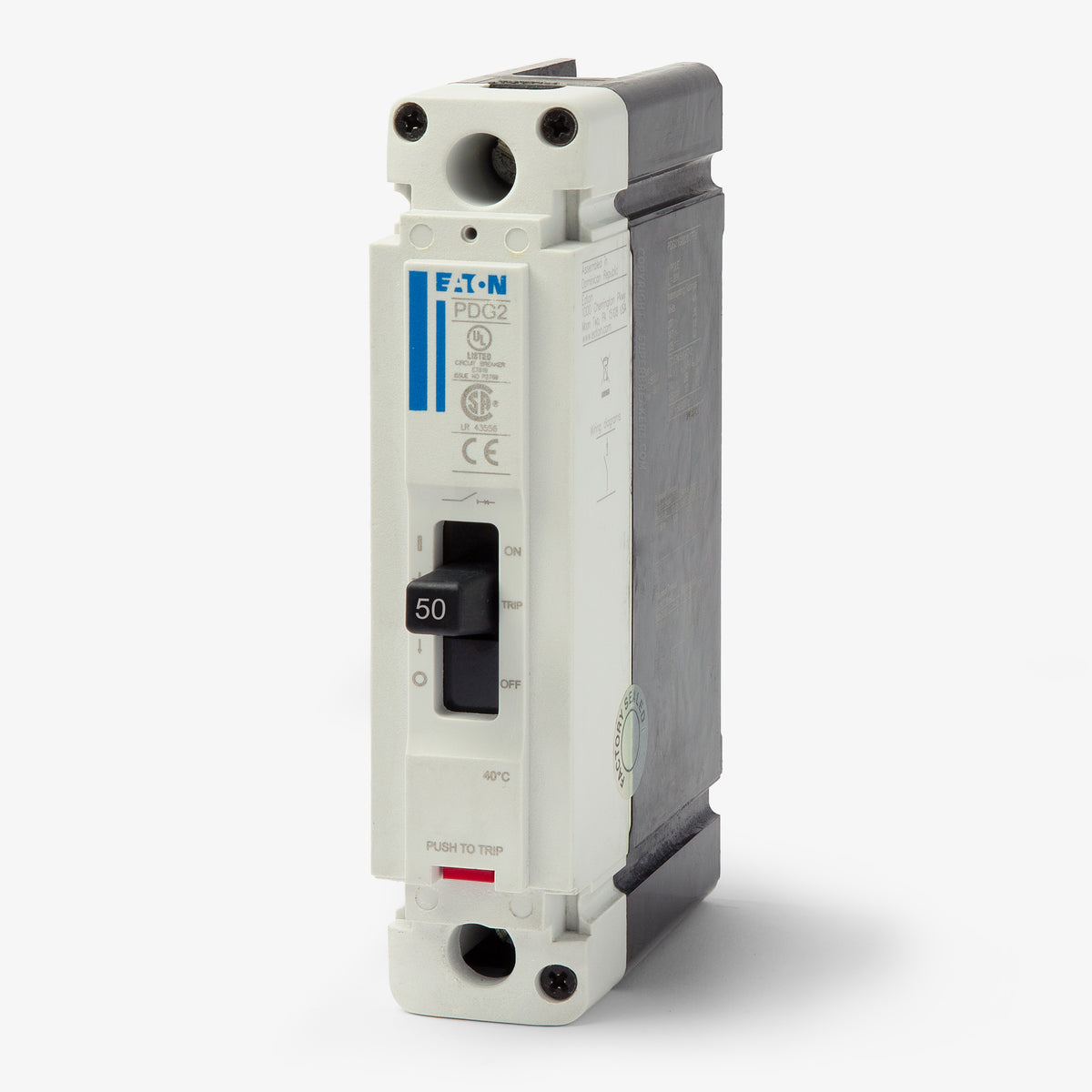

Eaton / Cutler-Hammer PDG21G0050TFFJ Molded Case Circuit Breaker
- 50A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG21G0050TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG21G0050TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG21G0050TFFJ - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG21G0040TFFL
40A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0030TFFJ
30A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0030TFFL
30A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 50A molded case circuit breaker provides fixed long-time and instantaneous (LI) protection. The unit installs into Eaton Power Defense Frame 2 enclosures and panelboards. It serves as an exact drop-in replacement for the discontinued FD1050, simplifying facility upgrades. With a 65kAIC interrupt capacity at 240VAC, it features standard line and load lug terminals for secure wire connections.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG21G0050TFFJ |
| Series | PDG2 |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Frame 2 Enclosures and Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment |
|---|---|

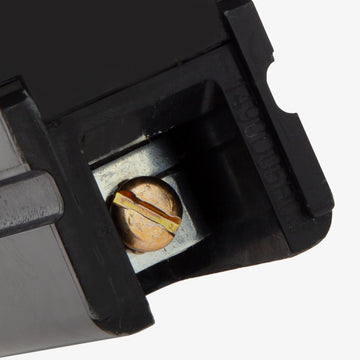

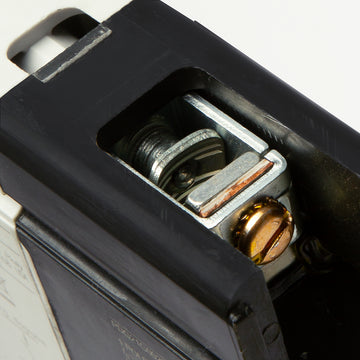

| Accessories | Standard Line and Load Terminals (PDG2X1T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
4 answersDoes the PDG21G0050TFFJ replace older Eaton Series C circuit breakers?
Yes, this Power Defense Frame 2 breaker serves as a drop-in replacement for the discontinued Series C FD1050 1-pole 50A breaker.
What do the letters 'TFFJ' indicate in the PDG21G0050TFFJ catalog number?
The 'TFFJ' suffix specifies the trip unit and terminal configuration. It stands for a Thermal Magnetic trip unit (T) with Fixed thermal (F) and Fixed magnetic (F) settings, equipped with standard line and load lug terminals (J).
What does the 'G' signify in the PDG21G0050TFFJ part number?
The 'G' indicates the breaker's interrupting capacity tier within the Power Defense series, designating a 35kAIC rating at 480VAC.
Can I use legacy Series C F-frame terminals on this Power Defense Frame 2 breaker?
Yes, Eaton Power Defense Frame 2 breakers are backward compatible and can use legacy Series C F-frame terminals and lugs.
