Eaton / Cutler-Hammer PDG23G0025TFFL Eaton/Cutler-Hammer 3 Pole Circuit Breaker
- 25
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0025TFFL
Eaton/Cutler-Hammer 3 Pole Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0025TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer PDG23G0025TFFL 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer PDG23G0025TFFL 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 25 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|

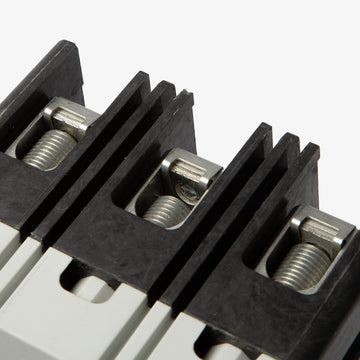

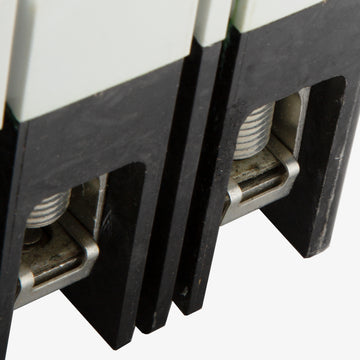

| Terminal Type | Standard Load Side Lug |
| For Use With | Eaton Power Defense Enclosures, Pow-R-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Handle Mechanism |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, RoHS Compliant, Global Rated |
Quantity
Eaton/Cutler-Hammer PDG23G0025TFFL 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 25 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Standard Load Side Lug |
| For Use With | Eaton Power Defense Enclosures, Pow-R-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Handle Mechanism |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, RoHS Compliant, Global Rated |
Similar Items
Eaton/Cutler-HammerPDG23G0030TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23G0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Description
Eaton/Cutler-Hammer PDG23G0025TFFL 3 Pole Circuit Breaker

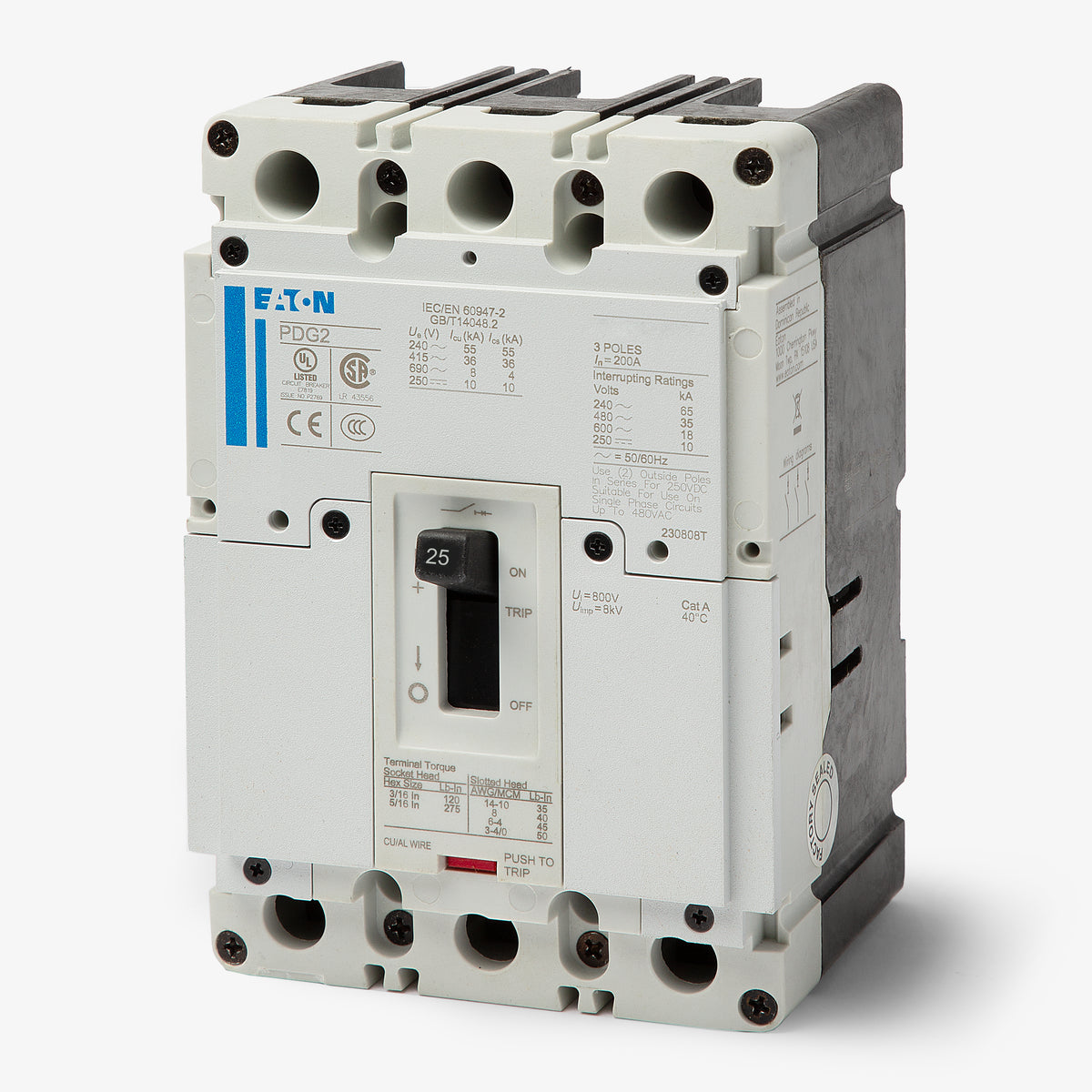

The Eaton/Cutler-Hammer PDG23G0025TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 25 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0025TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 25 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Standard Load Side Lug |
| For Use With | Eaton Power Defense Enclosures, Pow-R-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Handle Mechanism |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, RoHS Compliant, Global Rated |
Product FAQs
7 answersWhat panels and enclosures are compatible with the PDG23G0025TFFL?
This Frame 2 circuit breaker is designed for installation in Eaton Pow-R-Line panelboards, switchboards, and Power Defense enclosures.
What wire sizes and materials are accepted by the terminals on this breaker?
The standard terminals accommodate 14 AWG through 1/0 AWG wire and are rated for both aluminum and copper conductors.
What does the TFF designation in the PDG23G0025TFFL catalog number mean?
The TFF indicates that the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic settings for long-time and instantaneous (LI) protection.
Can the PDG23G0025TFFL be used in direct current (DC) systems?
Yes, in addition to its primary alternating current (AC) ratings, this Power Defense breaker is rated for use in DC applications up to 250VDC.
How is the PDG23G0025TFFL secured inside a panelboard?
This model utilizes a bolt-on connection type, requiring it to be physically bolted to the busbar or mounting chassis of a compatible Eaton panel or switchboard.
What global safety standards does this Power Defense breaker meet?
As a globally rated component, it carries multiple certifications including UL 489, CSA, CCC, and IEC 60947-2 for international compliance.
What frame size category does the PDG23G0025TFFL fall under?
This unit is part of the Eaton Power Defense Frame 2 (PDG2) family, which encompasses breakers with a maximum physical frame capacity of 225 amps.
