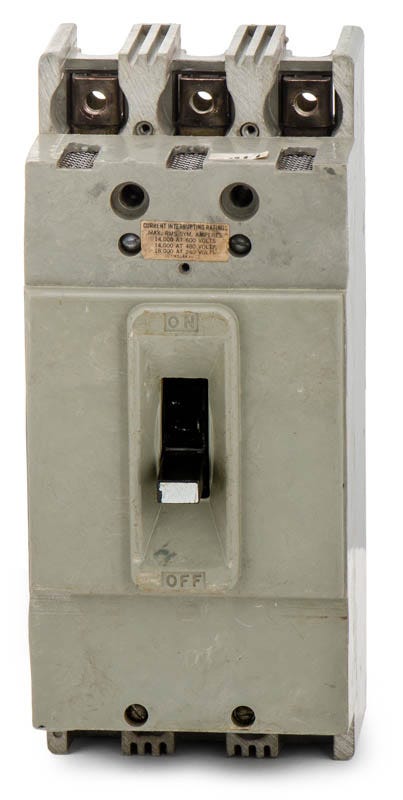

Federal Pacific HF631015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Federal Pacific
HF631015
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
HF631015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific HF631015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific HF631015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | HF631015 |
| Series | HF |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Quantity
Federal Pacific HF631015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | HF631015-R |
| Series | HF |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Similar Items
HF631030 - 30A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the HF631015 delivers robust overcurrent protection. This 15A, 3-pole MCCB maintains the exact dimensions of original Federal Pacific hardware. It installs securely into legacy F-Frame panelboards via a standard bolt-on connection, eliminating the need for retrofit kits. It also crosses to the UBIF015 substitute. Providing 22 kAIC at 480VAC, the unit utilizes fixed thermal-magnetic trip elements to handle long-time and instantaneous faults.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | HF631015 |
| Series | HF |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Product FAQs
7 answersWhich legacy panelboards are compatible with the HF631015?
This molded case circuit breaker is engineered as a direct replacement for older Federal Pacific F-Frame panelboards, restoring functionality to existing commercial and industrial infrastructure.
Does installing the HF631015 require retrofit kits for older panels?
No. It maintains the exact dimensions of the original Federal Pacific hardware and uses a standard bolt-on connection, allowing it to mount securely without any panel modifications.
What wire gauge range is supported by the load side lugs?
The included terminal lugs accommodate a wide range of conductors, accepting wire sizes from 14 AWG up to 1/0 AWG to support various field wiring requirements.
How does the interrupting capacity scale across different system voltages?
The breaker delivers a maximum short circuit rating of 25kA at 240VAC, which scales to 22kA at 480VAC and 14kA at 600VAC for higher voltage industrial applications.
Are the thermal and magnetic trip elements adjustable on this model?
No, the HF631015 utilizes fixed thermal and fixed magnetic trip elements to provide reliable long-time and instantaneous (LI) overcurrent protection.
Can this breaker replace older H-Frame Federal Pacific units?
Yes, it belongs to the legacy H-Frame group and serves as an exact replacement for aging 15A, 3-pole MCCBs in Federal Pacific distribution systems.
Is the HF631015 suitable for high-voltage industrial applications?
Yes, with a maximum voltage rating of 600VAC and robust thermal-magnetic protection, it is designed to safely interrupt faults in heavy commercial and industrial electrical networks.
