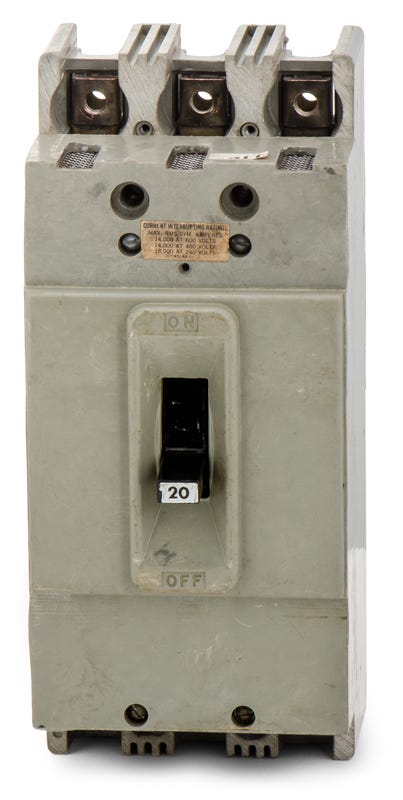

Federal Pacific HF631020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Federal Pacific
HF631020
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
HF631020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific HF631020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
HF631030 - 30A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Rated 22 kAIC at 480VAC, this Federal Pacific HF631020 molded case circuit breaker is engineered for heavy-duty commercial environments. The 20A, 3-pole device utilizes fixed thermal and magnetic trip units to safeguard industrial circuits against overloads and short circuits. Designed specifically for legacy installations, it bolts securely into existing FPE F-Frame panelboards, offering a seamless replacement solution for aging infrastructure.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | HF631020-R |
| Series | HF |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Common Trip, Trip-Free Mechanism |
Product FAQs
7 answersWhich panelboards accept the Federal Pacific HF631020 circuit breaker?
This legacy molded case circuit breaker is engineered to bolt directly into existing Federal Pacific F-Frame panelboards, allowing you to maintain aging infrastructure without retrofitting.
Does the HF631020 fit into H-Frame or F-Frame panelboards?
While this breaker belongs to the Federal Pacific H-Frame family, it is specifically designed and rated for use within legacy Federal Pacific F-Frame panelboards.
What wire gauge range is supported by the terminals on this 20A breaker?
The factory-installed load side lugs accept wire sizes from 14 AWG up to 1/0 AWG, providing flexibility for various field wiring requirements.
Can the trip curve be adjusted on the HF631020?
No. This breaker features fixed thermal and fixed magnetic trip elements, providing standard long-time and instantaneous (LI) protection without field adjustability.
Is the Federal Pacific HF631020 a current production model?
No. Federal Pacific Electric (FPE) is no longer manufacturing new equipment. This breaker serves as a direct drop-in replacement for maintaining existing legacy FPE systems.
Does this breaker require a mounting kit or adapter for installation?
No aftermarket adapters are required. The HF631020 features a standard bolt-on connection designed to mount securely to the original Federal Pacific busbar.
How does the thermal magnetic trip unit function on this breaker?
The thermal element protects against sustained overloads by heating up and tripping the breaker, while the magnetic element provides immediate response to clear instantaneous short circuits.
