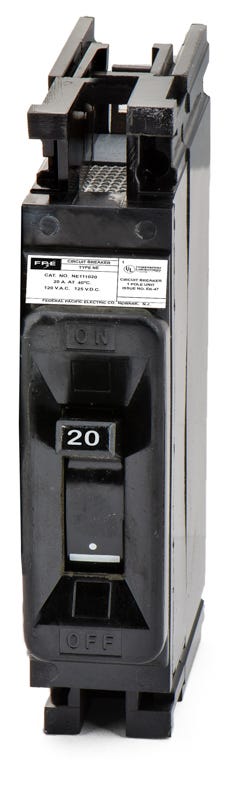

Federal Pacific NE111020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Federal Pacific
NE111020
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE111020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE111020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Federal Pacific NE111020 is a 20A, single-pole molded case circuit breaker. It provides an essential solution for maintaining older electrical infrastructure, offering reliable long-time and instantaneous trip functions. This N-Frame breaker mounts into Federal Pacific NE and NBLP panelboards. It replaces the NE114020 and UBINE114020 models, ensuring exact compatibility. It features a 14kAIC rating at 120VAC and is reverse feed suitable.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE111020-R |
| Series | NE |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 5kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the Federal Pacific NE111020?
This N-Frame breaker is designed to mount directly into legacy Federal Pacific NE and NBLP panelboards.
What are the direct replacements for the Federal Pacific NE111020?
The NE111020 serves as an exact replacement for the discontinued NE114020 and UBINE114020 models, ensuring compatibility without requiring aftermarket adapters.
Is the Federal Pacific NE111020 part of the Stab-Lok residential line?
No, the NE111020 is a commercial and industrial bolt-on molded case circuit breaker. It is not part of the residential Stab-Lok plug-on series.
Can the NE111020 be used in DC applications?
Yes, in addition to its 14kA at 120VAC rating, this breaker is rated for 5kA at 125VDC, making it suitable for specific direct current applications.
Is the NE111020 suitable for reverse feed applications?
Yes, this breaker is reverse feed suitable, allowing for flexible installation in commercial and industrial electrical systems.
