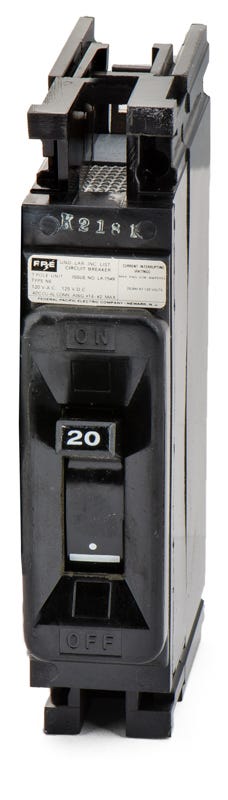

Federal Pacific NE113020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Federal Pacific
NE113020
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE113020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE113020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Federal Pacific NE113020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NE113020 |
| Series | NE |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Quantity
Federal Pacific NE113020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NE113020-R |
| Series | NE |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Similar Items
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the NE113020 serves as an exact replacement molded case circuit breaker for discontinued Federal Pacific systems. It installs into NE and NBLP panelboards via a sturdy bolt-on mount, ensuring a secure connection. Delivering 14kAIC interrupting capacity at 120VAC, this 20A breaker utilizes fixed thermal-magnetic trip units. It carries a Switching Duty (SWD) classification, making it suitable for switching 120V fluorescent lighting loads.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE113020-R |
| Series | NE |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the Federal Pacific NE113020?
This N-frame breaker is specifically designed to bolt into legacy Federal Pacific NE and NBLP series panelboards.
Will this breaker fit in a standard Federal Pacific Stab-Lok load center?
No. The NE113020 is a commercial N-frame molded case circuit breaker with a bolt-on mounting style. It will not fit in residential Stab-Lok enclosures.
What are the wiring requirements for the line and load terminals?
Both the line and load side lugs on this feed-thru breaker accept conductors ranging from 14 AWG to 2 AWG.
Is this breaker suitable for direct current applications?
Yes, the NE113020 is rated for use on 125VDC systems, providing a 10kA interrupting capacity for DC circuits.
Are the trip settings adjustable on the NE113020?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous (LI) trip functions are factory set and cannot be field adjusted.
