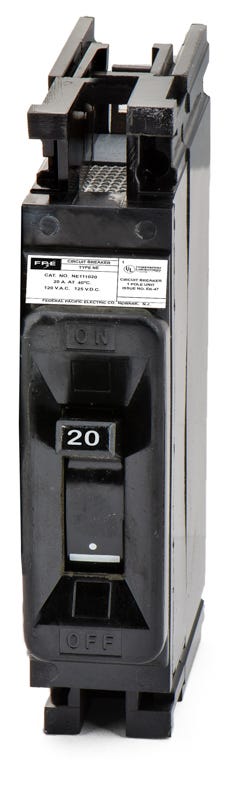

Federal Pacific NE114020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Federal Pacific
NE114020
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE114020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE114020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Designed to restore power in older commercial facilities, this 20A single-pole breaker fits Federal Pacific NE and NBLP panelboards. It mounts securely via bolt-on connections, serving as an exact replacement for discontinued hardware without requiring aftermarket adapters. Featuring a 14kAIC rating at 120VAC and reverse feed suitability, the unit delivers dependable long-time and instantaneous trip functions for standard industrial applications.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE114020-R |
| Series | NE |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Product FAQs
7 answersWhich panelboards accept the Federal Pacific NE114020 breaker?
This breaker is specifically engineered to fit legacy Federal Pacific NE and NBLP panelboards. As a dedicated replacement part, it allows you to service older commercial enclosures without the need for aftermarket retrofit kits.
Does the NE114020 require special mounting hardware?
This breaker features a standard bolt-on connection designed to attach directly to the busbars of compatible NE and NBLP panels. Ensure the panel is fully de-energized before bolting the breaker into place.
What wire sizes can be terminated on this breaker?
The load-side lugs accommodate conductors ranging from 14 AWG to 2 AWG. Always verify that your selected wire size matches the 20A circuit requirements and complies with local electrical codes.
Is the NE114020 suitable for DC applications?
Yes, in addition to its standard 120VAC rating, this breaker is rated for 125VDC systems with an interrupting capacity of 5kAIC. This makes it versatile for specific industrial control or battery circuits.
Can the NE114020 be used in reverse-feed configurations?
Yes, this molded case circuit breaker is reverse-feed suitable, allowing it to be back-fed in compatible panelboard setups where required by the system design.
What type of protection does the NE114020 provide?
It features a fixed thermal-magnetic trip unit that delivers both long-time protection against sustained overloads and instantaneous protection against short circuits, commonly referred to as LI trip functions.
Can I use this to replace a discontinued Federal Pacific 20A NE-frame breaker?
Yes, this unit serves as an exact drop-in replacement for original Federal Pacific NE114020 breakers. It restores reliable power distribution in aging infrastructure without requiring panel modifications.
