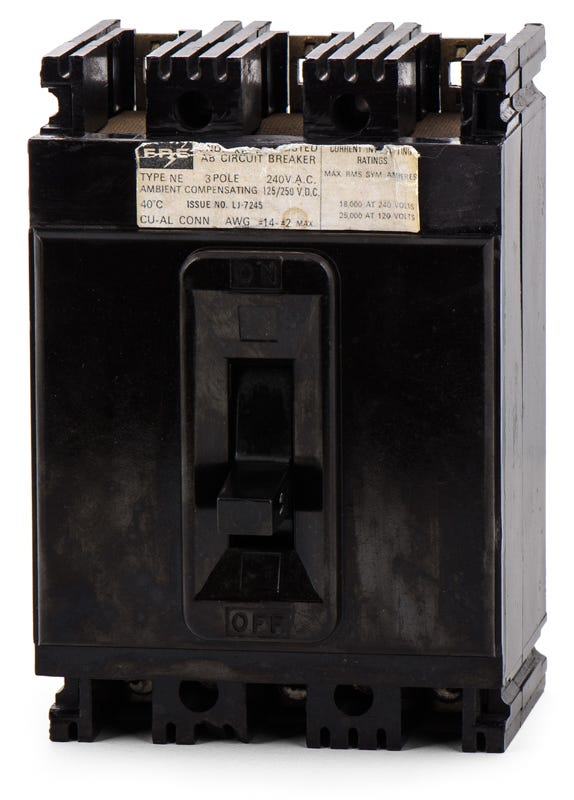

Federal Pacific NE233015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Federal Pacific
NE233015
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE233015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE233015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker

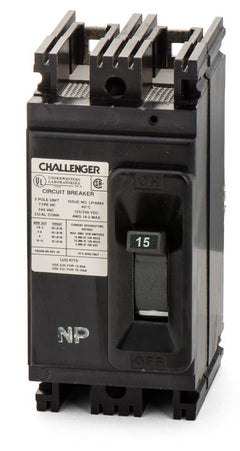

15A 2 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Built to support existing commercial power systems, this 15A molded case circuit breaker provides dependable long-time and instantaneous trip functions. It enables electrical contractors to service older installations safely and efficiently while maintaining original equipment specifications. Engineered for exact compatibility, the 3-pole breaker installs into Federal Pacific NE panelboards via a bolt-on configuration. It handles up to 240VAC with an 18 kAIC rating for robust fault protection.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE233015-R |
| Series | NE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhich panelboards accept the Federal Pacific NE233015?
This N-frame breaker is engineered specifically for legacy Federal Pacific NE panelboards. It requires a bolt-on connection to the panel's busbar.
Can the NE233015 be used in DC voltage applications?
Yes, in addition to its 240VAC rating, this breaker is rated for 250VDC applications, where it provides a 10kA interrupting capacity.
What wire gauge range is supported by the NE233015 terminals?
The integrated lug terminals are designed to accommodate wire sizes from 14 AWG up to 10 AWG.
Are the trip settings adjustable on the NE233015?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials.
Is the NE233015 interchangeable with Federal Pacific Stab-Lok breakers?
No. The NE233015 is a commercial-grade N-frame molded case circuit breaker. It will not fit in residential Stab-Lok load centers.
Does the NE233015 provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic breaker providing only long-time and instantaneous (LI) overcurrent and short-circuit protection. It does not include GFCI or AFCI safety features.
