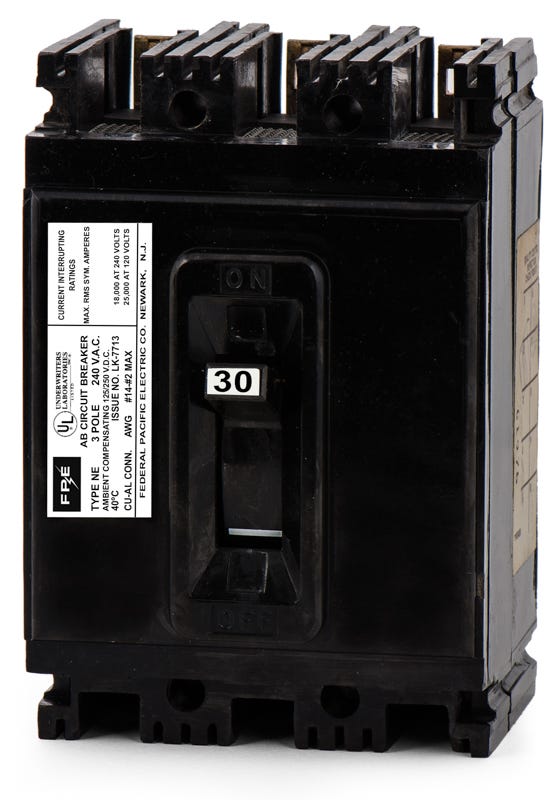

Federal Pacific NE233030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Federal Pacific
NE233030
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE233030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE233030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific NE233030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NE233030-R |
| Series | NE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Quantity
Federal Pacific NE233030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NE233030-R |
| Series | NE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Similar Items

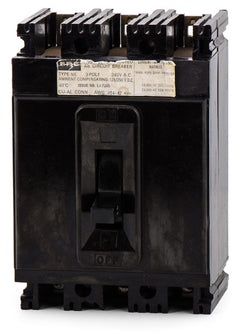

15A 3 Pole Molded Case Circuit Breaker

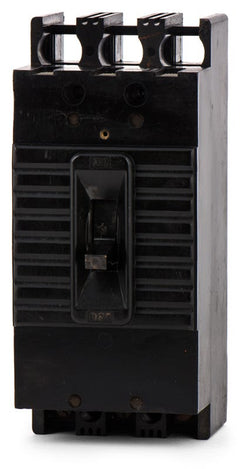

30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for aging systems, the Federal Pacific NE233030 restores reliable power to commercial facilities. This 30-amp, three-pole molded case circuit breaker features a rugged thermal-magnetic trip unit for long-time and instantaneous (LI) protection. It installs into legacy Federal Pacific NE panelboards without aftermarket adapters. Rated for 18kAIC at 240VAC, this bolt-on MCCB is reverse-feed suitable and accepts 14-2 AWG wire. Cross-reference with UBINE233030 for fitment.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE233030-R |
| Series | NE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the Federal Pacific NE233030 circuit breaker?
This N-frame breaker is engineered specifically for use in legacy Federal Pacific NE series panelboards. It installs directly without requiring aftermarket adapters or complex retrofits.
What is the direct aftermarket cross-reference for the NE233030?
The Connecticut Electric UBINE233030 is the exact aftermarket substitute for this breaker, designed to fit the same legacy Federal Pacific enclosures.
What wire gauge range is supported by the terminals on this breaker?
The included load-side lugs are designed to accept wire sizes ranging from 14 AWG to 2 AWG. Ensure proper torque specifications are followed during installation.
Is the NE233030 rated for use in direct current (DC) systems?
Yes, in addition to its standard 240VAC rating, this breaker is rated for 250VDC applications with a 10kAIC interrupting capacity.
Can the Federal Pacific NE233030 be reverse fed?
Yes, this molded case circuit breaker is reverse-feed suitable, allowing it to be used in applications where power is supplied to the load terminals rather than the line side.
What type of fault protection does the NE233030 offer?
It features a fixed, non-interchangeable thermal-magnetic trip unit providing long-time (L) protection against overloads and instantaneous (I) protection against short circuits.
