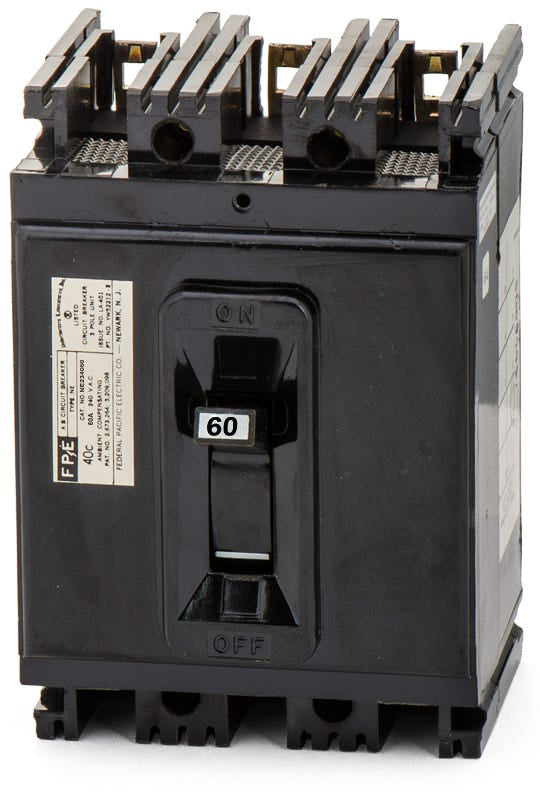

Federal Pacific NE234060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Federal Pacific
NE234060
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE234060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE234060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific NE234060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NE234060-R |
| Series | NE |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Quantity
Federal Pacific NE234060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Similar Items
45A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Part of the classic N-Frame lineup, the Federal Pacific NE234060 is a 60A, 3-pole molded case circuit breaker built for commercial and industrial power distribution. It utilizes proven thermal-magnetic trip technology to deliver dependable overcurrent and short-circuit protection. This unit mounts securely into existing Federal Pacific NE panelboards, ensuring an exact fit without adapters. Rated at 18kAIC at 240VAC, it supports reverse feed applications and accepts 14-1/0 AWG wire.Specifications
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the NE234060 circuit breaker?
This breaker is designed specifically as a drop-in replacement for legacy Federal Pacific NE panelboards. It mounts directly into existing enclosures without requiring adapters or panel modifications.
What wire sizes are compatible with the lugs on the NE234060?
The terminal lugs on this breaker accept wire gauges from 14 AWG up to 1/0 AWG.
Is the NE234060 rated for use in DC electrical systems?
Yes, this breaker is rated for 250VDC applications and provides an interrupting capacity of 5kA at that voltage, in addition to its standard AC ratings.
Is the NE234060 a direct replacement for older Federal Pacific NE frame breakers?
Yes, it is an exact replacement for aging 60A, 3-pole Federal Pacific NE frame installations. It restores power distribution functionality to legacy systems where modern equivalents are not available.
How does the NE234060 connect to the panelboard?
It utilizes a bolt-on connection, fastening directly to the busbar of legacy Federal Pacific NE panelboards for a secure installation.
Are the trip settings on the NE234060 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous (LI) protection functions are factory set and cannot be adjusted in the field.
