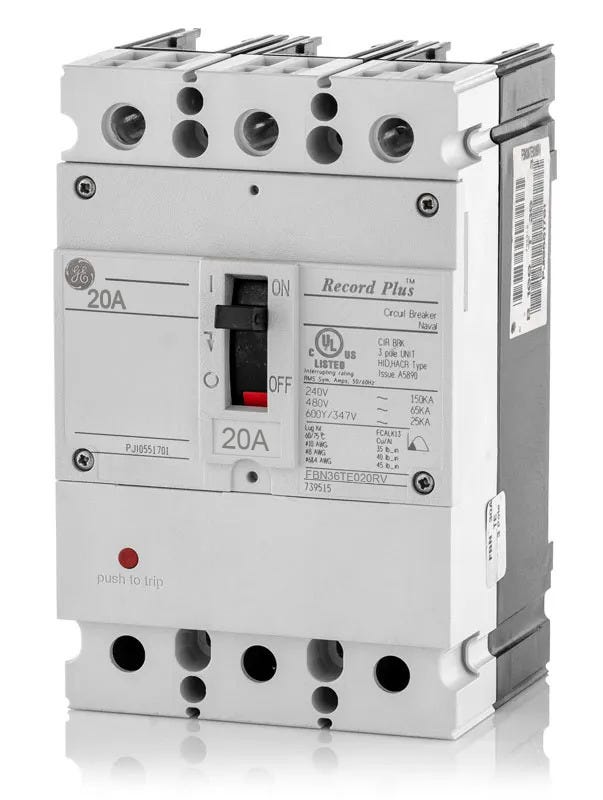

ABB / General Electric FBN36TE020RV Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
ABB / General Electric
FBN36TE020RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN36TE020RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN36TE020RV - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric FBN36TE020RV - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE020RV |
| Series | FBN |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, Double-Break Rotary Contact Structure, Naval Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Quantity
ABB / General Electric FBN36TE020RV - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | FBN |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, Double-Break Rotary Contact Structure, Naval Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricFBN36TE015RV
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE030RV
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE045RV
45A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the GE FBN36TE020RV is a 3-pole, 20A molded case circuit breaker from the Record Plus line. It delivers dependable thermal-magnetic trip functionality. This bolt-on MCCB is equipped with line connections designed to fit GE A-Series panelboards. It also functions as a drop-in replacement for older TED134020 breakers. Featuring a 65 kAIC rating at 480V, the FB100 frame breaker utilizes a double-break rotary contact structure and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE020RV |
| Series | FBN |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, Double-Break Rotary Contact Structure, Naval Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
9 answersWhat panelboards are compatible with the FBN36TE020RV?
This breaker features the RV catalog suffix, indicating it is equipped with specialized bolt-on line connections designed specifically for General Electric A-Series (type AD) panelboards.
Why might the FBN36TE020RV arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the production batch, Record Plus FB100 frame circuit breakers may carry either ABB or General Electric branding. The form, fit, and technical specifications are identical.
What does the FB100 frame designation mean for this breaker?
The FB100 designation means this model shares the same physical dimensions as all Record Plus FB-series breakers up to a 100-amp capacity. This specific unit is factory-calibrated with a fixed 20-amp thermal-magnetic trip unit.
What interrupting tier does the FBN36TE020RV fall under?
The N in the FBN prefix designates a high-tier interrupting capacity for the GE Record Plus line, providing a 65kAIC rating at 480VAC and up to 150kAIC at 240VAC.
How does this breaker connect to the panelboard bus?
The FBN36TE020RV is a bolt-on MCCB. It bolts directly to the panel busbar to establish a secure, rigid connection that is highly resistant to vibration in industrial environments.
What wire sizes and materials are supported by the load lugs?
The factory-installed load terminals accept both copper and aluminum (Cu/Al) conductors ranging from 14 AWG to 10 AWG.
Can the FBN36TE020RV be used to upgrade legacy TED series breakers?
Yes, Record Plus FB frame breakers with the RV suffix are engineered as modern, drop-in replacements for legacy 20A, 3-pole TED breakers, such as the TED134020, in existing GE A-Series panelboards.
What does the RV suffix indicate in the catalog number?
In GE Record Plus nomenclature, the RV suffix signifies that the circuit breaker is supplied with factory-installed load lugs and specialized line-side connections for direct mounting in A-Series panels.
Are the trip unit parameters adjustable on the FBN36TE020RV?
No. This model is equipped with a non-interchangeable thermal-magnetic trip unit. Both the long-time and instantaneous (LI) protection functions are fixed and cannot be modified in the field.
