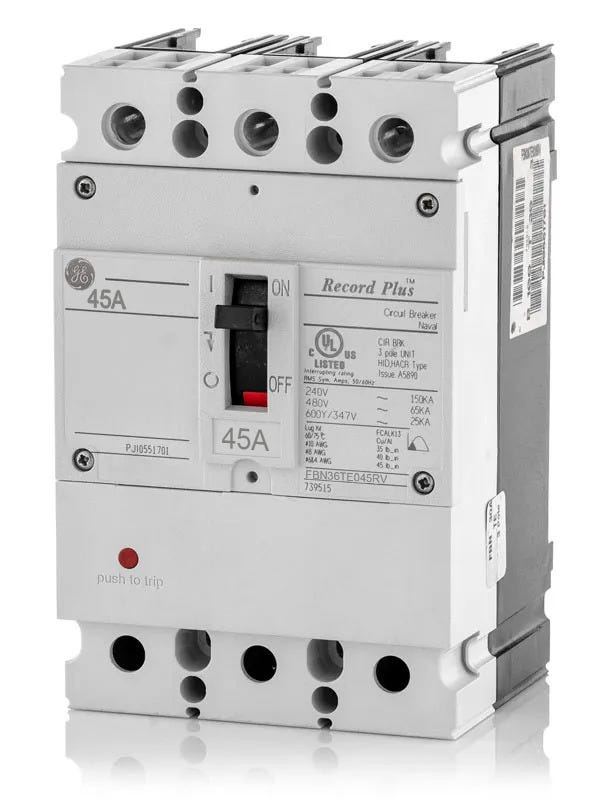

ABB / General Electric FBN36TE045RV Molded Case Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
ABB / General Electric
FBN36TE045RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN36TE045RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN36TE045RV - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric FBN36TE045RV - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE045RV |
| Series | FBN |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Quantity
ABB / General Electric FBN36TE045RV - 45A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | FBN |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Similar Items
3 Pole Circuit Breaker
ABB / General ElectricFBN36TE030RV
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE025RV
25A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial power systems, the 45A GE FBN36TE045RV provides dependable thermal-magnetic protection. It is part of the Record Plus FB frame series. This bolt-on MCCB fits into GE Type AD and A-Series panelboards. Facility managers can also use it to replace discontinued TED134045 breakers. Delivering a 65 kAIC rating at 480VAC, the breaker incorporates double-break rotary contacts to minimize let-through energy. It is HACR and HID rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE045RV |
| Series | FBN |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Product FAQs
8 answersWhich panelboards accept the FBN36TE045RV circuit breaker?
This bolt-on breaker is specifically designed for installation in GE Type AD and A-Series panelboards. The RV suffix in the catalog number indicates it includes the required line connections for these panels.
Why might my FBN36TE045RV arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions. Record Plus FB frame breakers manufactured after the transition may feature ABB labels, but they retain the exact same physical dimensions, mounting, and electrical specifications.
What interrupting capacity does the N in FBN36TE045RV represent?
In the GE Record Plus nomenclature, the N denotes a high interrupting tier, specifically providing a 65kAIC rating at 480VAC.
What wire gauge is supported by the load terminals on this breaker?
The included load lugs accommodate 10 AWG to 4 AWG copper or aluminum conductors.
Are the thermal or magnetic trip points adjustable on this model?
No. The FBN36TE045RV uses a factory-sealed thermal-magnetic trip unit with fixed long-time and fixed instantaneous settings.
Does this breaker come with standard line and load lugs?
No. The RV suffix specifies that the breaker includes load lugs but uses specialized bolt-on line connections for AD panelboards rather than standard line lugs.
Can the FBN36TE045RV replace a GE TED134045 breaker?
Yes. Facility managers frequently use this Record Plus FB frame breaker to replace the discontinued TED134045 in compatible GE panelboards.
What does the FB prefix indicate in the FBN36TE045RV catalog number?
It designates the GE Record Plus FB100 frame size, which supports a maximum continuous current of 100 amps.
