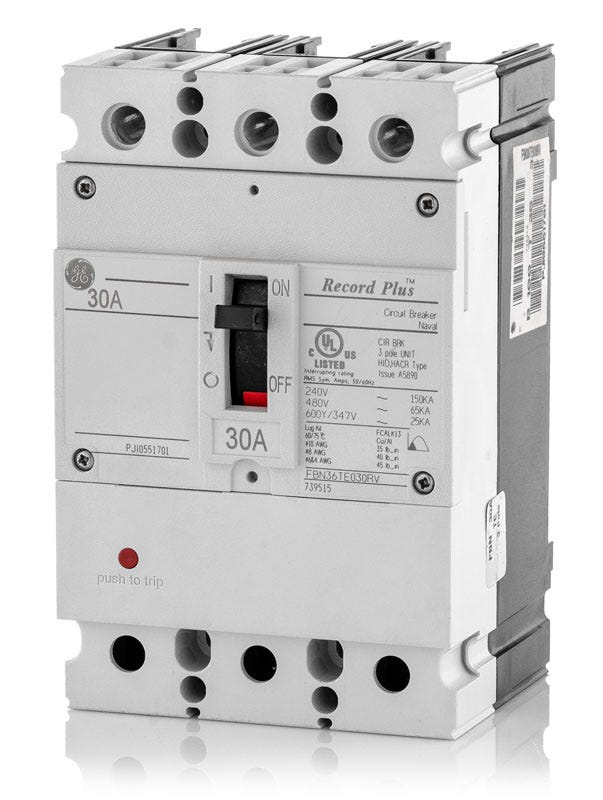

ABB / General Electric FBN36TE030RV Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
FBN36TE030RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN36TE030RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN36TE030RV - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric FBN36TE030RV - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE030RV |
| Series | FBN |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Sold out
Quantity
ABB / General Electric FBN36TE030RV - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE030RV |
| Series | FBN |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Similar Items

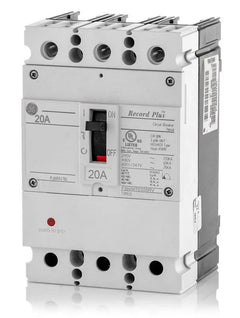

ABB / General ElectricFBN36TE020RV
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE045RV
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE015RV
15A 3 Pole Molded Case Circuit Breaker
Description
Mounts into GE Type AD and A-Series panelboards to provide robust thermal-magnetic protection for industrial applications. The GE FBN36TE030RV is a 3-pole, 30A MCCB designed for heavy-duty power distribution. Designed for bolt-on installation, it also replaces discontinued TED134030 breakers to support existing infrastructure without requiring extensive modifications. Featuring a double-break rotary contact structure, it delivers exceptional current limitation and a 65kAIC rating at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE030RV |
| Series | FBN |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Product FAQs
8 answersCan the FBN36TE030RV replace a discontinued TED134030 breaker?
Yes, the FBN36TE030RV is the modern replacement for the discontinued GE TED134030 circuit breaker. It is designed to support existing infrastructure and fits the same applications without requiring extensive panel modifications.
Which panelboards are compatible with the FBN36TE030RV?
This breaker is designed for use with GE Type AD and GE A-Series panelboards.
What wire sizes are accepted by the lugs on this breaker?
The included lugs accept 10 AWG to 4 AWG copper or aluminum wire.
What does the "RV" suffix indicate in the FBN36TE030RV catalog number?
The "RV" suffix indicates that the breaker comes equipped with load-side lug terminals and line-side panel connections for bolt-on installation.
Is the FBN36TE030RV suitable for reverse feed applications?
Yes, GE Record Plus FB frame breakers like the FBN36TE030RV are suitable for reverse feed applications.
Is this breaker manufactured by ABB or General Electric?
ABB acquired GE Industrial Solutions, so the Record Plus FBN36TE030RV may be branded as either ABB or General Electric depending on the manufacturing date. Both are exact functional equivalents.
Are the trip settings on the FBN36TE030RV adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials.
Does this breaker require a separate mounting kit for A-Series panels?
No, the FBN36TE030RV is a bolt-on breaker that includes the necessary line-side panel connections to mount directly to the bus of GE Type AD and A-Series panelboards.
