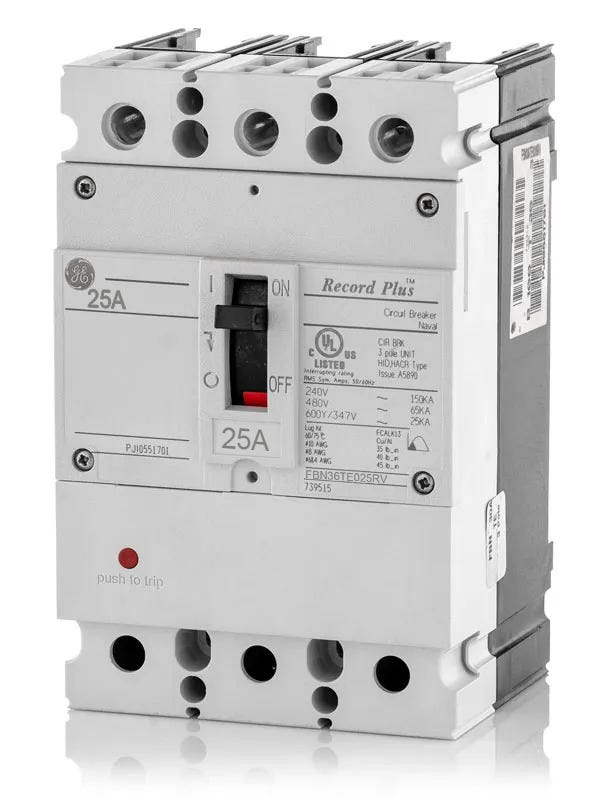

ABB / General Electric FBN36TE025RV Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
ABB / General Electric
FBN36TE025RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN36TE025RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN36TE025RV - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBN36TE020RV
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE015RV
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE045RV
45A 3 Pole Molded Case Circuit Breaker
Description
Part of the advanced Record Plus series, the GE FBN36TE025RV delivers reliable thermal-magnetic protection for commercial distribution systems. This 3-pole, 25A molded case circuit breaker features a trip-free mechanism for consistent performance. This bolt-on breaker installs into GE Type AD panelboards and serves as an exact replacement for legacy TED136025 units, simplifying facility upgrades. Rated 65kAIC at 480V, it utilizes a double-break rotary contact structure to enhance interruption.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE025RV |
| Series | FBN |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure |
Product FAQs
5 answersWhich panelboards are compatible with the FBN36TE025RV circuit breaker?
This Record Plus FB frame breaker features an RV suffix, indicating it includes line connections specifically designed for bolt-on installation in GE Type AD panelboards.
Can the FBN36TE025RV replace older GE circuit breakers?
Yes, this breaker serves as a direct replacement for legacy GE TED136025 circuit breakers in Type AD panelboards.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this breaker may feature either ABB or GE branding, but the physical dimensions and electrical specifications remain identical.
What wire sizes do the lugs on the FBN36TE025RV accept?
The factory-installed load lugs accommodate 10 AWG to 4 AWG copper or aluminum wiring.
What type of trip unit is equipped on this breaker?
It features a non-interchangeable thermal-magnetic trip unit with fixed thermal and fixed magnetic settings, providing long-time and instantaneous (LI) protection.
