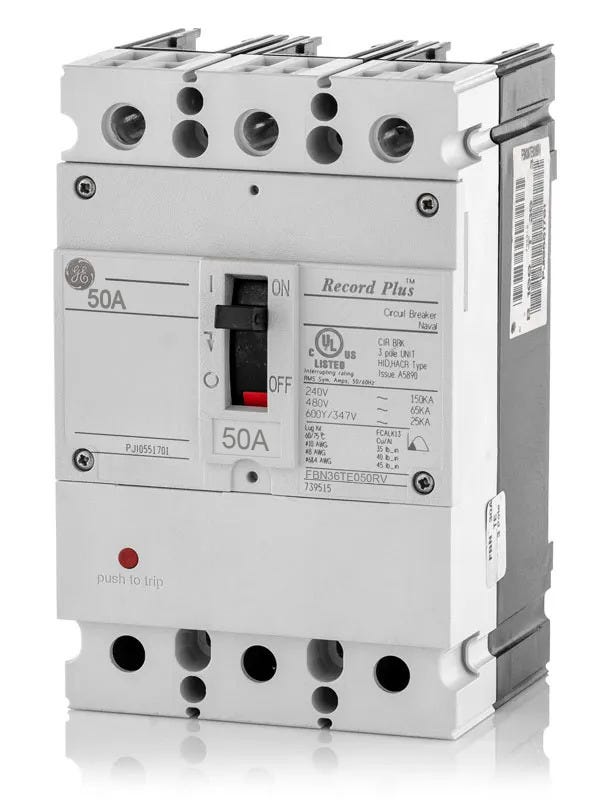

ABB / General Electric FBN36TE050RV Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
ABB / General Electric
FBN36TE050RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN36TE050RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN36TE050RV - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric FBN36TE050RV - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE050RV |
| Series | FBN |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric FBN36TE050RV - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE050RV |
| Series | FBN |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Similar Items
3 Pole Circuit Breaker
ABB / General ElectricFBN36TE070RV
70A 3 Pole Molded Case Circuit Breaker

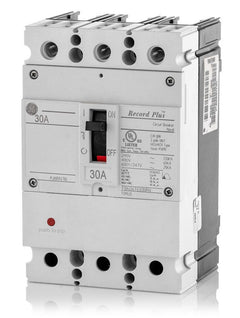

ABB / General ElectricFBN36TE030RV
30A 3 Pole Molded Case Circuit Breaker
Description
A specialized solution for commercial distribution, the GE FBN36TE050RV is a 50A, 3-pole MCCB from the Record Plus FB series. It utilizes a thermal-magnetic trip mechanism for dependable protection. This bolt-on breaker features an "RV" suffix, equipping it with specific line connections for GE Type AD panelboards. It replaces discontinued TED136050 breakers. Capable of interrupting 65kA at 480V, it incorporates a double-break rotary contact structure to minimize let-through energy.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE050RV |
| Series | FBN |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the FBN36TE050RV breaker?
This breaker is designed for use with GE Type AD panelboards, which are part of the GE A-Series panelboard line. The RV suffix in the catalog number indicates it includes the specific line connections required for mounting in these panels.
Can I use the FBN36TE050RV to replace an older GE TED breaker?
Yes, the FBN36TE050RV is a direct modern replacement for the discontinued GE TED136050 circuit breaker. It provides the same 50-amp, 3-pole configuration with updated Record Plus technology.
What does the N in the FBN36TE050RV catalog number signify?
The N indicates the breaker's Normal interrupting capacity tier within the GE Record Plus FB frame family. This specific tier provides a 65kAIC rating at 480VAC.
What wire sizes are accepted by the load lugs on this breaker?
The factory-installed load lugs accept copper or aluminum wire ranging from 10 AWG to 4 AWG. Ensure proper torque specifications are followed during installation.
How does the FBN36TE050RV mount into the panelboard?
This is a bolt-on circuit breaker. It secures directly to the busbars of compatible GE Type AD panelboards using bolted connections, providing a secure installation suitable for commercial and industrial environments.
What type of trip unit is installed in the FBN36TE050RV?
It features a fixed thermal magnetic trip unit with Long-Time (L) and Instantaneous (I) protection functions. Both the thermal overload and magnetic short-circuit trip points are fixed and non-adjustable.
Why is this breaker branded as both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, GE Record Plus breakers like the FBN36TE050RV are now manufactured and branded under the combined ABB / General Electric name, maintaining the exact same form and fit as legacy GE models.
