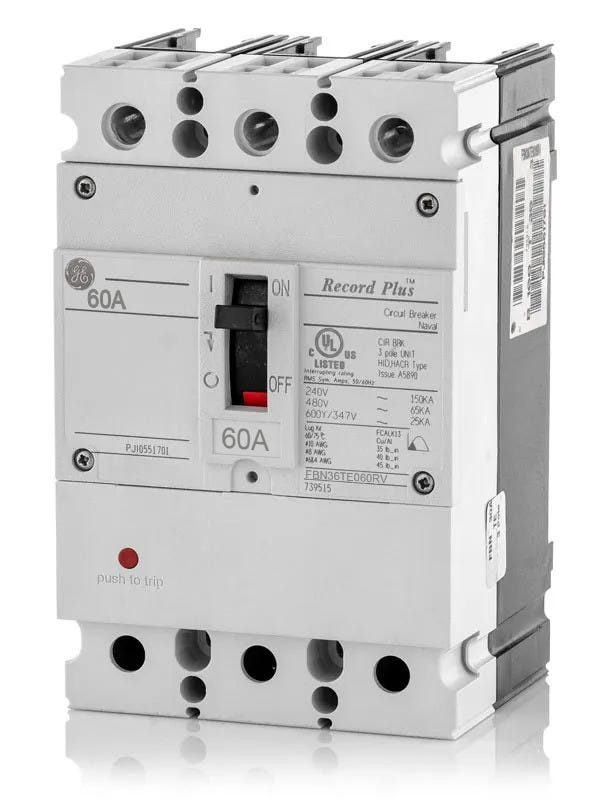

General Electric FBN36TE060RV Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
General Electric
FBN36TE060RV
Circuit Breaker
Brand
General Electric
SKU
FBN36TE060RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
General Electric FBN36TE060RV 3 Pole Circuit Breaker
New
Quantity
Quantity
General Electric FBN36TE060RV 3 Pole Circuit Breaker
New
Quantity
| Brand | General Electric |
|---|---|
| Part Number | FBN36TE060RV |
| Series | FBN |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, Double-Break Rotary Contact Structure, Naval Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Quantity
General Electric FBN36TE060RV 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | General Electric |
|---|---|
| Series | FBN |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, Double-Break Rotary Contact Structure, Naval Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricFBN36TE050RV
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE045RV
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE080RV
80A 3 Pole Molded Case Circuit Breaker
Description
General Electric FBN36TE060RV 3 Pole Circuit Breaker
The General Electric FBN36TE060RV is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 600V. It has an interrupting rating of 65kAIC at 480V. The FBN36TE060RV has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | General Electric |
|---|---|
| Part Number | FBN36TE060RV |
| Series | FBN |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, Double-Break Rotary Contact Structure, Naval Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the FBN36TE060RV circuit breaker?
This FB-frame breaker is specifically designed for use in GE A-Series Type AD panelboards. The RV suffix in the catalog number indicates it includes the necessary line connections for these panels.
Is the FBN36TE060RV circuit breaker suitable for reverse feed applications?
Yes, GE Record Plus FB-frame breakers are not marked with line and load designations, meaning they can be safely reverse fed for back-feeding applications in compatible panels.
How is the FBN36TE060RV mounted into the panelboard?
This breaker utilizes a bolt-on connection. It secures directly to the busbars of GE A-Series AD panelboards using the appropriate mounting hardware, providing a reliable mechanical and electrical connection.
How do I reset the FBN36TE060RV after it has tripped?
To reset the breaker from the tripped position, you must first move the operating handle fully to the OFF position to reset the internal mechanism, and then push it to the ON position to restore power.
Does the FBN36TE060RV include a push-to-trip feature for testing?
Yes, GE Record Plus FB-frame breakers feature a push-to-trip button on the front of the unit. This allows for manual testing of the mechanical tripping mechanism, which is recommended to be performed annually.
What does the RV at the end of the FBN36TE060RV catalog number indicate?
In the GE Record Plus nomenclature, the RV suffix indicates that the breaker is supplied with factory-installed load lugs and specialized line connections designed specifically for mounting in GE Type AD panelboards.
