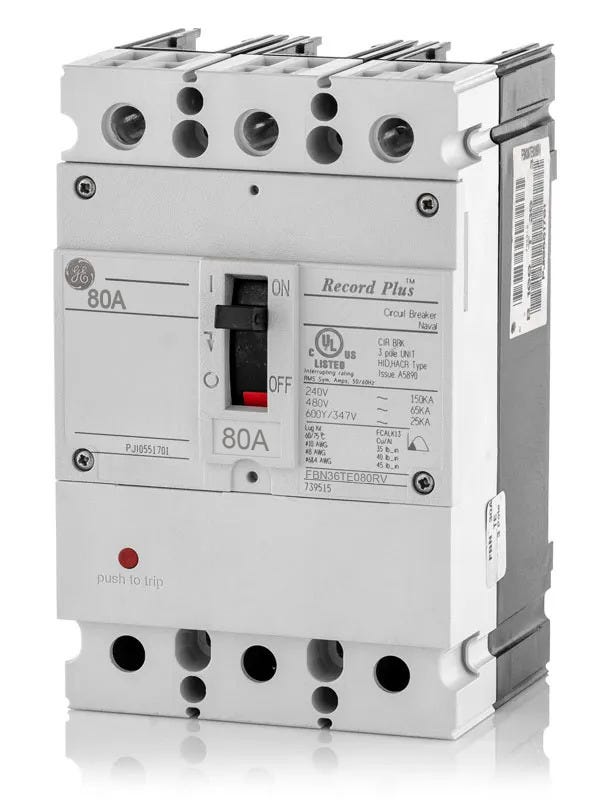

ABB / General Electric FBN36TE080RV Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
ABB / General Electric
FBN36TE080RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN36TE080RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN36TE080RV - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric FBN36TE080RV - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE080RV |
| Series | FBN |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Quantity
ABB / General Electric FBN36TE080RV - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | FBN |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Similar Items
ABB / General ElectricFBN36TE070RV
70A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
3 Pole Circuit Breaker
Description
Engineered for commercial applications, the GE FBN36TE080RV operates as a 3-pole, 80A molded case circuit breaker within the Record Plus family. It delivers reliable thermal-magnetic protection and serves as an upgraded replacement for legacy TED136080 breakers. This unit comes equipped with load lugs and specialized line connections for mounting into GE Type AD and A-Series panelboards. The double-break rotary contact structure ensures exceptional current limitation.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE080RV |
| Series | FBN |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the "RV" suffix mean in the FBN36TE080RV catalog number?
The "RV" suffix indicates that the breaker includes load lugs and specialized line connections designed specifically for mounting in GE Type AD and A-Series panelboards.
What does the "N" in the FBN36TE080RV part number signify?
In the GE Record Plus nomenclature, the "N" indicates the interruption rating tier. For the FB frame, "N" specifies a 65kA interrupting capacity at 480VAC.
Can the FBN36TE080RV circuit breaker be reverse fed?
Yes. GE Record Plus FB frame circuit breakers are not marked with line and load designations, meaning they are suitable for reverse feed applications.
Is this breaker manufactured by ABB or General Electric?
ABB acquired GE Industrial Solutions, so this Record Plus circuit breaker may be branded as either ABB or GE. Both versions share the exact same form, fit, and function.
What type of trip unit is installed in the FBN36TE080RV?
It features a non-interchangeable thermal magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip functions.
What frame size does the FBN36TE080RV belong to?
This breaker belongs to the GE Record Plus FB frame size, which supports a maximum of 100 amps.
