ABB / General Electric FBN36TE090RV Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
ABB / General Electric
FBN36TE090RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN36TE090RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN36TE090RV - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBN36TE080RV
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE070RV
70A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description

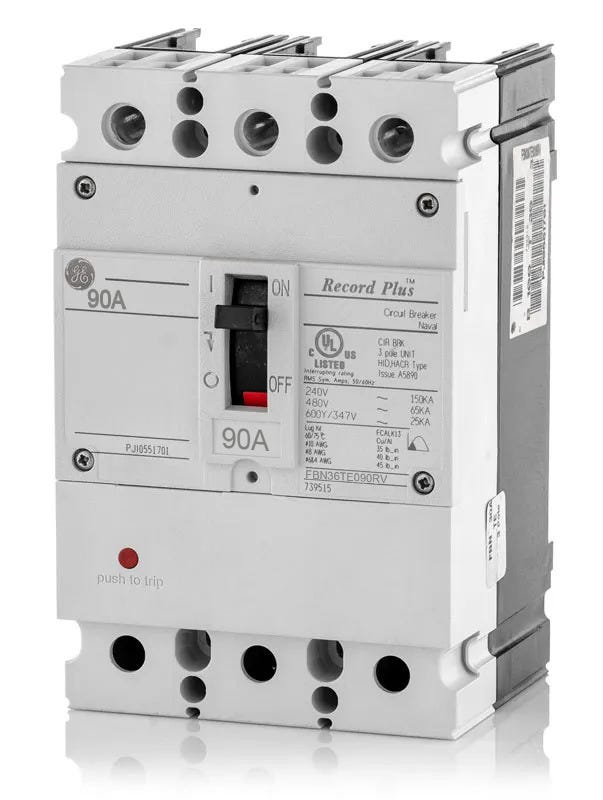

Built for demanding industrial environments, the GE FBN36TE090RV functions as a 90A, 3-pole molded case circuit breaker within the Record Plus FB100 family. Facilities upgrading older systems can use this unit to replace legacy TED136090 breakers. This model comes configured for compatibility with GE Type AD and A-Series panelboards, featuring factory-installed load lugs and specialized line connections. Its innovative double-break rotary contact design provides superior current limitation.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE090RV |
| Series | FBN |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Product FAQs
8 answersWhich panelboards are compatible with the FBN36TE090RV circuit breaker?
This breaker is designed for use with GE Type AD and GE A-Series panelboards. It features specialized line connections specifically configured for these panels.
Can the FBN36TE090RV be used to replace older GE breakers?
Yes, this Record Plus FB100 family breaker can be used to upgrade or replace legacy GE TED136090 circuit breakers in existing systems.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, Record Plus series breakers like the FBN36TE090RV may be branded as either ABB or General Electric, but they are the exact same product.
What frame size does the FBN36TE090RV belong to?
This breaker is part of the GE Record Plus FB100 frame family.
What wire sizes are accepted by the lugs on the FBN36TE090RV?
The factory-installed load lugs accept 4 AWG to 1/0 AWG copper or aluminum (Cu/Al) wire.
How does the FBN36TE090RV connect to the panelboard?
It features a bolt-on connection, meaning it requires bolted hardware to securely attach the line side to the panelboard busbar.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) protection for overloads and Instantaneous (I) protection for short circuits. Both the thermal and magnetic settings are fixed on this model.
Is the FBN36TE090RV a current-limiting breaker?
Yes, it utilizes a double-break rotary contact structure that provides superior current limitation during a fault condition.
