General Electric FBN36TE100RV Circuit Breaker
- 100
- 3 Pole
- Bolt-On
General Electric
FBN36TE100RV
Circuit Breaker
Brand
General Electric
SKU
FBN36TE100RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
General Electric FBN36TE100RV 3 Pole Circuit Breaker
New
Quantity
Quantity
General Electric FBN36TE100RV 3 Pole Circuit Breaker
New
Quantity
| Brand | General Electric |
|---|---|
| Part Number | FBN36TE100RV |
| Series | FBN |
| Amperage | 100 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | AWG 4 to AWG 1/0, Cu/Al |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Standards | HACR |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
General Electric FBN36TE100RV 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | General Electric |
|---|---|
| Series | FBN |
| Amperage | 100 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | AWG 4 to AWG 1/0, Cu/Al |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Standards | HACR |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
ABB / General ElectricFBN36TE080RV
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN36TE070RV
70A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description

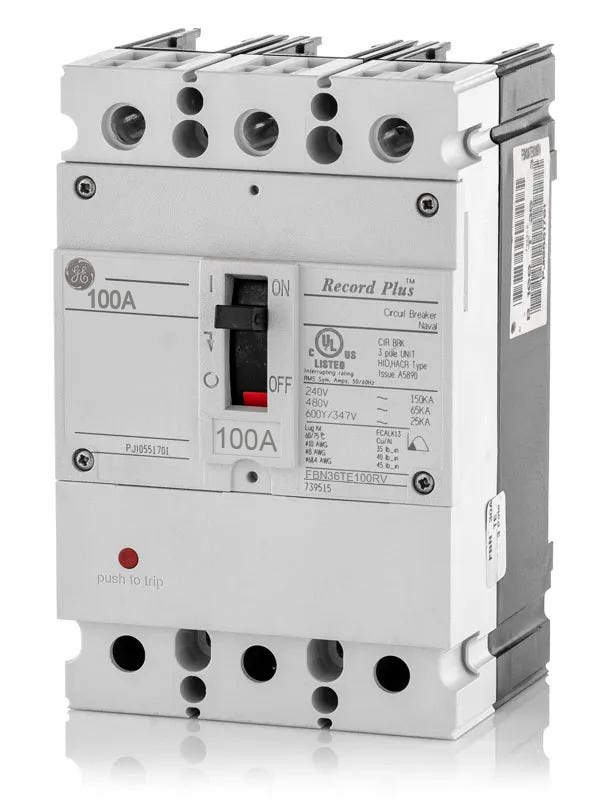

General Electric FBN36TE100RV 3 Pole Circuit Breaker
The General Electric FBN36TE100RV is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 600V. It has an interrupting rating of 65kAIC at 480V. The FBN36TE100RV has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | General Electric |
|---|---|
| Part Number | FBN36TE100RV |
| Series | FBN |
| Amperage | 100 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | AWG 4 to AWG 1/0, Cu/Al |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Standards | HACR |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
7 answersWhat panelboards are compatible with the FBN36TE100RV circuit breaker?
The FBN36TE100RV is specifically designed for bolt-on installation in GE Type AD panelboards. The RV suffix indicates it comes factory-equipped with load lugs and line connections tailored for these specific panels.
Can I field-install internal accessories on the FBN36TE100RV?
Yes. The Record Plus FB frame supports common field-installable internal accessories, including auxiliary switches, undervoltage releases, shunt trips, and bell alarms.
What makes the GE Record Plus FB frame suitable for high-fault applications?
The FBN36TE100RV utilizes a double-break rotary contact structure and advanced ablative materials. This design provides current-limiting performance to safely isolate severe faults and reduce arc flash energy.
Is the trip unit on the FBN36TE100RV adjustable or interchangeable?
No. This breaker features a factory-installed, non-user interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions.
What does the RV suffix mean in the FBN36TE100RV catalog number?
In the GE Record Plus series, the RV suffix designates that the breaker includes load lugs and specialized line connections for GE Type AD panels. For comparison, an R1 suffix indicates standard line and load lugs, while R2 indicates load lugs only.
What wire sizes are accepted by the lugs on the FBN36TE100RV?
The factory-equipped load lugs accept copper or aluminum conductors ranging from 4 AWG to 1/0 AWG.
Can I install this GE Record Plus breaker in a non-GE panelboard?
No. To maintain UL listings and comply with NEC 110.3, the FBN36TE100RV must only be installed in approved GE Type AD panelboards. Using it in unapproved panels compromises the mechanical connection and can create arcing or fire hazards.
