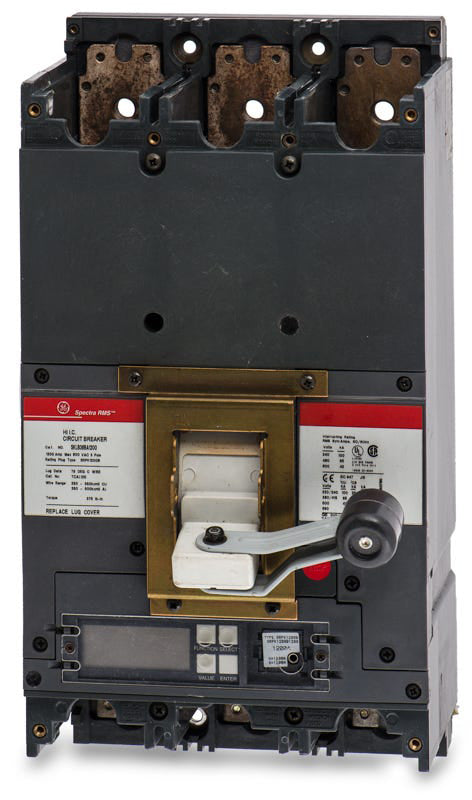

General Electric SKLB36BD1200 Circuit Breaker
- 1200
- 3 Pole
- Unit
General Electric
SKLB36BD1200
Circuit Breaker
Brand
General Electric
SKU
SKLB36BD1200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
General Electric SKLB36BD1200 3 Pole Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
General Electric SKLB36BD1200 3 Pole Circuit Breaker
New
Quantity
| Brand | General Electric |
|---|---|
| Part Number | SKLB36BD1200 |
| Series | Spectra |
| Amperage | 1200 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC |
| Amperage Range | 600-1200A |
|---|
| Frame Type | SKLB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Switchboards, GE A-Series Panelboards, Motor Control Centers |
| Wire Gauge | 250 to 500KCmil, Al/Cu |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Lug Kit, Rating Plugs, Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Interchangeable Trip Unit, Visual Trip Indicator, Reverse Feed |
Quantity
General Electric SKLB36BD1200 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | General Electric |
|---|---|
| Series | Spectra |
| Amperage | 1200 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC |
| Amperage Range | 600-1200A |
|---|
| Frame Type | SKLB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Switchboards, GE A-Series Panelboards, Motor Control Centers |
| Wire Gauge | 250 to 500KCmil, Al/Cu |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Lug Kit, Rating Plugs, Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Interchangeable Trip Unit, Visual Trip Indicator, Reverse Feed |
Similar Items
ABB / General ElectricSKLB36BC1200
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLC3612L4XX
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLC3612L5XX
1200A 3 Pole Molded Case Circuit Breaker
Description
General Electric SKLB36BD1200 3 Pole Circuit Breaker
The General Electric SKLB36BD1200 is a 3 Pole solid state molded case circuit breaker with a current rating of 1200 Amps and a voltage rating of 600V. It has an interrupting rating of 65kAIC at 480V. The SKLB36BD1200 has a bolt-on connection type and includes long time, short time, instantaneous, ground fault and targets trip functions.
Specifications
| Brand | General Electric |
|---|---|
| Series | Spectra |
| Amperage | 1200 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC |
| Amperage Range | 600-1200A |
|---|
| Frame Type | SKLB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Switchboards, GE A-Series Panelboards, Motor Control Centers |
| Wire Gauge | 250 to 500KCmil, Al/Cu |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Lug Kit, Rating Plugs, Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Interchangeable Trip Unit, Visual Trip Indicator, Reverse Feed |
Product FAQs
5 answersWhich GE panelboards and switchboards accept the SKLB36BD1200?
This unit-mount SK-frame breaker is compatible with GE Spectra Series Switchboards, GE A-Series Panelboards, and various Motor Control Centers.
What specific protection does the LSIG electronic trip unit offer?
The solid-state trip unit allows precise adjustments for Long-Time (overload), Short-Time (short circuit with delay), Instantaneous (immediate short circuit), and Ground-Fault protection. This enables advanced selective coordination in commercial and industrial electrical systems.
What are the wire gauge requirements for the SKLB36BD1200 lugs?
The bolt-on lugs for this breaker accommodate 250 to 500 kcmil aluminum or copper (Al/Cu) conductors.
Does the SKLB36BD1200 require a rating plug to operate?
Yes, as a Spectra Series electronic trip breaker, it requires a compatible rating plug installed in the trip unit to establish the continuous current rating and function correctly.
Why is this GE Spectra breaker sometimes listed under ABB?
ABB acquired GE Industrial Solutions, meaning Spectra Series SK-frame breakers and their accessories are now managed under the combined ABB and General Electric brand.
