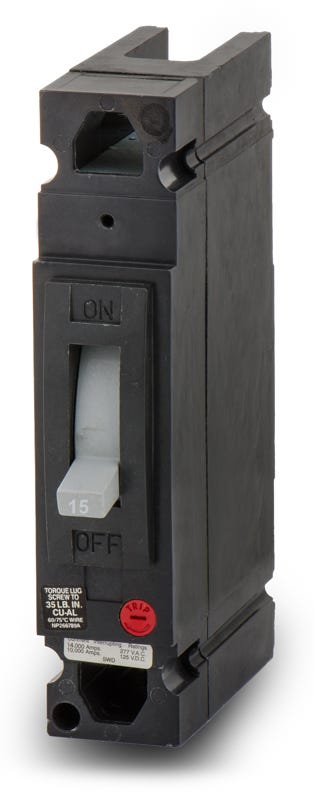

ABB / General Electric TEB111015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
ABB / General Electric
TEB111015
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB111015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB111015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB111015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111015 |
| Series | TEB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (TCAL14) |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TEB111015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111015-R |
| Series | TEB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (TCAL14) |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEB111040
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111050
50A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111060
60A 1 Pole Molded Case Circuit Breaker
Description
Part of GE's legacy E150 frame family, the TEB111015 provides robust single-pole protection. Rated for 15 amps, it supports dual voltage applications up to 120VAC and 125VDC. This bolt-on MCCB mounts securely into GE A-Series panelboards and switchboards. It acts as an exact cross-reference for the older TE111015 and is suitable for reverse feed installations. The breaker utilizes a fixed thermal magnetic trip with a 10 kAIC rating and carries an SWD classification for lighting loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111015 |
| Series | TEB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (TCAL14) |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersCan the TEB111015 be reverse fed?
Yes. All GE TEB, TED, and THED molded case circuit breakers are suitable for reverse feed applications.
Is the TEB111015 rated for switching duty and HVAC equipment?
Yes. As a 15-amp single-pole breaker, it carries an SWD rating for switching 120VAC fluorescent lighting loads and is UL listed as an HACR type for heating, air conditioning, and refrigeration equipment.
Are there higher interrupting capacity alternatives to the TEB111015?
Yes. The TEB frame is the standard tier rated at 10kAIC at 120VAC. For higher fault current applications, you can upgrade to the TED113015 for 18kAIC or the THED113015 for 65kAIC while maintaining the same physical E150 frame dimensions.
What are the lug tightening torque specifications for the TEB111015?
For the standard E150 frame lugs, tighten 10 AWG wire to 35 in-lb, and 8 AWG wire to 40 in-lb.
What is the difference between the TEB111015 and TEB111015WL?
The standard TEB111015 includes load lugs only. The WL suffix in the catalog number indicates that the breaker is factory-supplied with both copper-aluminum line and load lugs.
How does the TEB111015 mount into the panel?
This is a bolt-on circuit breaker designed for secure, hardwired installation in GE A-Series panelboards, switchboards, and motor control centers. It does not plug in.
