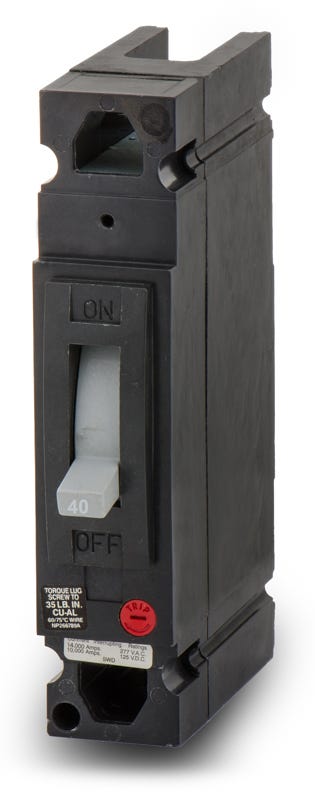

ABB / General Electric TEB111040 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
ABB / General Electric
TEB111040
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB111040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB111040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEB111040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111040 |
| Series | TEB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism, 50C Ambient Calibration |
Sold out
Quantity
ABB / General Electric TEB111040 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111040-R |
| Series | TEB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism, 50C Ambient Calibration |
Similar Items
ABB / General ElectricTEB111060
60A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111020
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111015
15A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, this 40-amp molded case circuit breaker utilizes a fixed thermal-magnetic trip mechanism. It fastens securely into GE A-Series and Spectra Series panelboards via a reliable bolt-on connection, ensuring stable performance in demanding environments. Serving as a functional replacement for the older TE111040, this E-frame component includes a TCAL12 load lug. The HACR-rated unit provides a 10kA interrupting capacity at 120VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111040 |
| Series | TEB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism, 50C Ambient Calibration |
Product FAQs
6 answersWhich panelboards are compatible with the TEB111040 circuit breaker?
This E-frame breaker is designed for bolt-on installation in GE A-Series and Spectra Series panelboards.
What wire sizes are accepted by the terminals on the TEB111040?
The factory-installed lugs accept 14 to 3 AWG copper conductors or 12 to 1 AWG aluminum conductors.
Is the TEB111040 rated for direct current applications?
Yes, in addition to its 120VAC rating, this breaker carries a DC rating of 125VDC with an interrupting capacity of 5kAIC.
How does the TEB111040 mount within the panelboard?
It features a bolt-on connection type, meaning it bolts directly to the panelboard bus rather than snapping into place.
Are the trip settings adjustable on this 40A breaker?
No, it features a thermal magnetic trip unit with fixed long-time and fixed instantaneous trip functions.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Legacy GE molded case circuit breakers like the TEB series are now manufactured and supported under the ABB brand.
