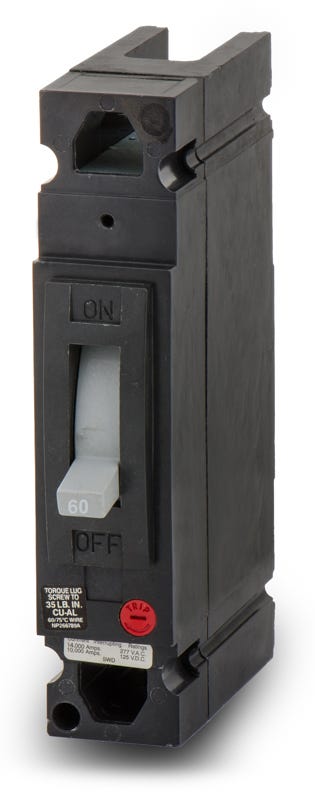

ABB / General Electric TEB111060 Molded Case Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
ABB / General Electric
TEB111060
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB111060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB111060 - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEB111040
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111020
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111015
15A 1 Pole Molded Case Circuit Breaker
Description
Part of the legacy E-frame family, this 60A single-pole breaker delivers reliable long-time and instantaneous protection for commercial facilities. The HACR-rated unit utilizes standard thermal-magnetic trip technology. Designed for secure installation, it bolts into GE A-Series and Spectra Series panelboards. It replaces older TE111060 units and serves as an alternative to the TED111060. With a 10kAIC rating at 120VAC, it features a quick-make/quick-break mechanism for consistent operation.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB111060 |
| Series | TEB |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat panelboards are compatible with the TEB111060 circuit breaker?
This breaker is designed to bolt directly into GE A-Series and Spectra Series panelboards. It is part of the legacy E150 frame lineup and is commonly used in commercial lighting and distribution panels.
Can I use the TEB111060 to replace an older TE111060 breaker?
Yes, the TEB111060 serves as a direct replacement for older TE111060 units. It maintains the same physical dimensions, bolt-on mounting style, and electrical specifications.
What is the difference between the TEB111060 and the TED111060?
Both are 60A, 1-pole E150 frame breakers that fit the same GE panelboards. The difference is the interrupting capacity. The TEB111060 is rated at 10kAIC at 120VAC, while the TED111060 has a higher interrupting rating, typically 18kAIC.
Is the TEB111060 suitable for use with HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires HACR-type circuit protection.
Does the TEB111060 support reverse feeding?
Yes, GE E150 line breakers like the TEB111060 are suitable for reverse feed applications. This allows the breaker to be back-fed when used as a main breaker or in specific generator setups.
Can I install the TEB111060 in a standard residential load center?
No, the TEB111060 is a bolt-on molded case circuit breaker designed for commercial and industrial A-Series and Spectra Series panelboards. It will not fit in standard residential plug-on load centers like the GE PowerMark Gold series.
Can the trip settings on the TEB111060 be adjusted?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory set and non-interchangeable.
