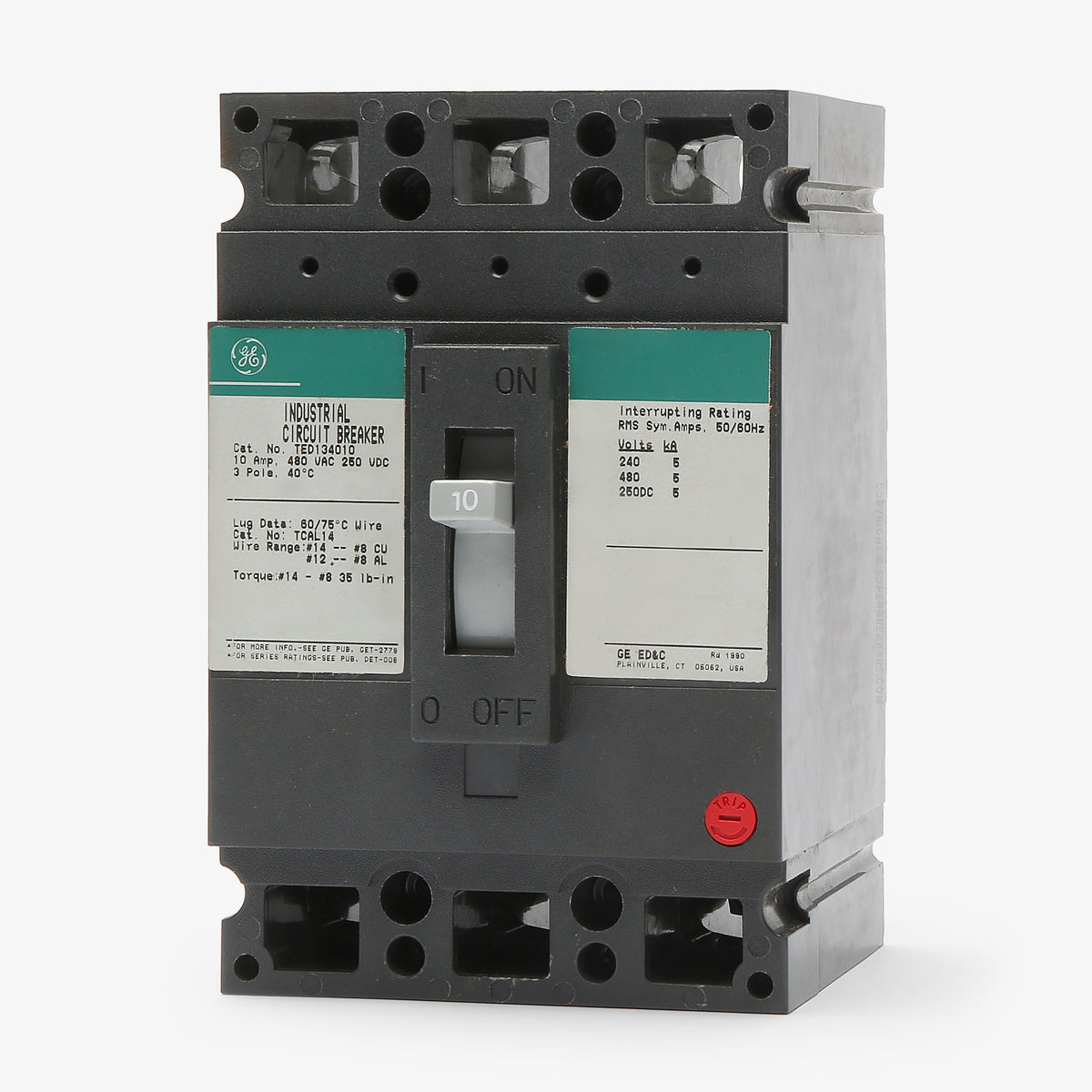

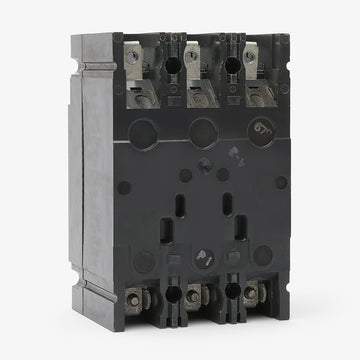

ABB / General Electric TED134010WL Molded Case Circuit Breaker
- 10A
- 3 Pole
- Unit Mount
ABB / General Electric
TED134010WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134010WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134010WL - 10A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED136015WL
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134020WL
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136020WL
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power systems, this E-Frame unit delivers reliable thermal-magnetic protection. The 3-pole configuration handles 480VAC applications with an 18kAIC rating, making it suitable for standard distribution networks. Equipped with factory-installed TCAL12 lugs on both line and load sides, the breaker mounts into GE A-Series panelboards, Spectra enclosures, and motor control centers.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134010WL |
| Series | TED |
| Amperage | 10A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers, E150 Enclosures |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|

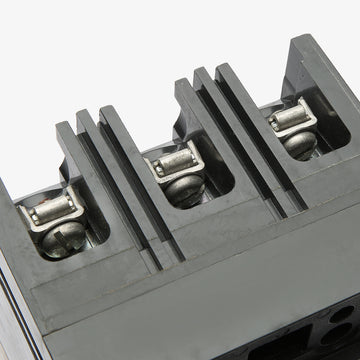

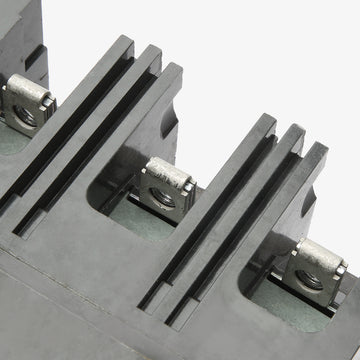

| Accessories | Line and Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat does the WL suffix in TED134010WL indicate?
The WL suffix indicates that the circuit breaker comes with factory-installed copper and aluminum line and load lugs.
Which panelboards and enclosures are compatible with this breaker?
This E-Frame breaker is designed for use with GE A-Series panelboards, GE Spectra panelboards, motor control centers, switchboards, and E150 enclosures.
What does the LI trip function code mean on this breaker?
The LI designation stands for Long-Time and Instantaneous trip functions. This provides standard thermal-magnetic protection against both gradual overloads and sudden short circuits.
How do I reset this breaker after it trips?
When tripped, the handle moves to a midway position between ON and OFF. To reset the breaker, move the handle to the extreme OFF position, and then push it to the ON position.
Why might this breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this E150 line breaker may feature either ABB or GE branding, but the form, fit, and function remain identical.
Does the breaker mechanism allow it to be held closed during a fault?
No. This breaker features a trip-free mechanism, meaning it will trip under short circuit or overload conditions even if the operating handle is manually held in the ON position.
Can this breaker be used in DC power applications?
Yes, this thermal-magnetic breaker is rated for DC applications, providing up to a 10kA interrupting capacity at 250VDC.
