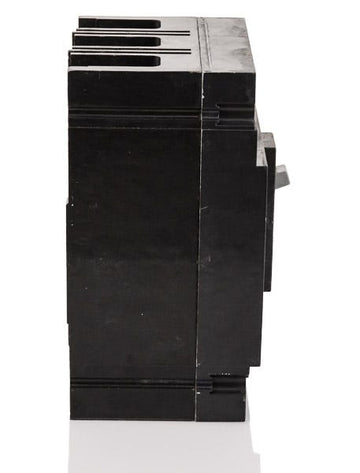

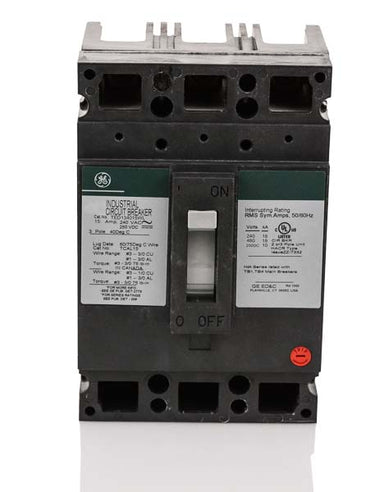

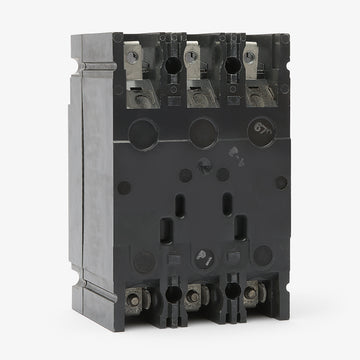

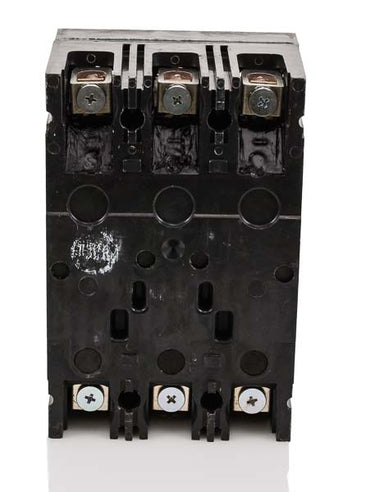

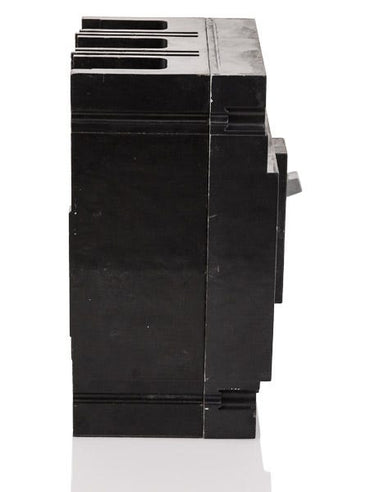

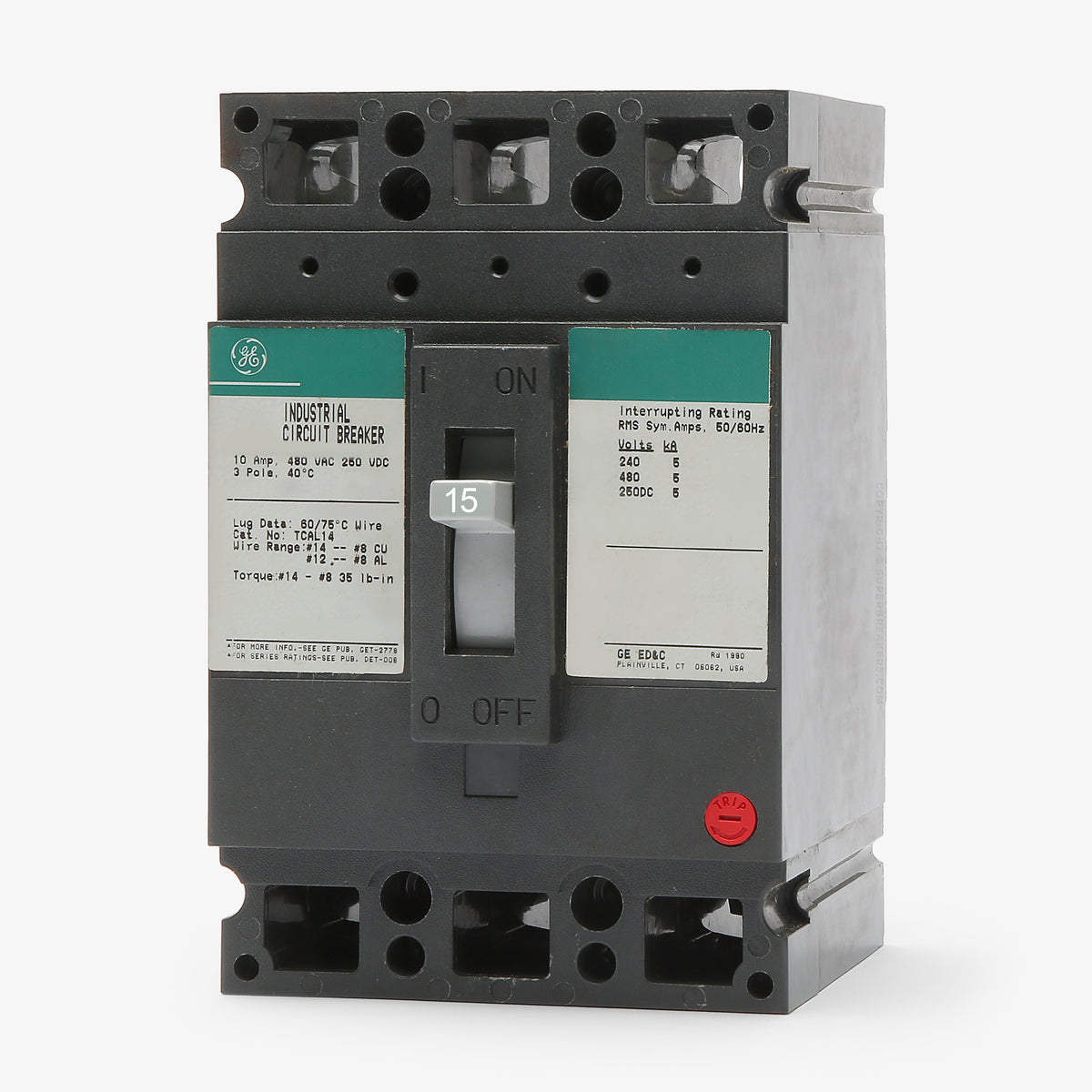

ABB / General Electric TED134015WL Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
ABB / General Electric
TED134015WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134015WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134015WL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED134015WL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TED134015WL - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTED134020WL
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136020WL
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134010WL
10A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the GE TED134015WL is a 3-pole, 15A molded case circuit breaker from the E-150 line. It provides essential overcurrent protection for demanding environments. This unit mount MCCB installs into individual enclosures, switchboards, and motor control centers. The WL suffix indicates the inclusion of factory-installed line and load lugs. Rated 18kAIC at 480VAC, it features fixed thermal-magnetic LI trip functions and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat does the WL suffix in the TED134015WL catalog number indicate?

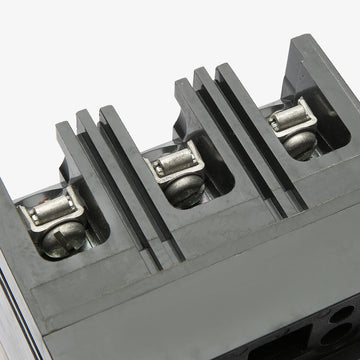

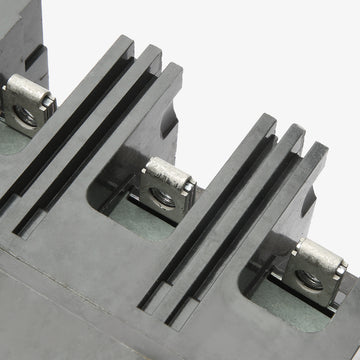

The WL suffix means this circuit breaker comes factory-equipped with copper and aluminum (Cu/Al) lugs on both the line and load sides. Without this suffix, the breaker would not include the line-side lugs.
Why is this exact part number sold under both the ABB and General Electric brands?
ABB acquired GE Industrial Solutions. You may find the TED134015WL branded as either GE or ABB, but the physical component, catalog number, and specifications remain identically matched.
Can the TED134015WL be reverse fed?
Yes, standard TED frame breakers do not have marked line and load restrictions, allowing them to be safely reverse fed within compatible electrical systems.
What types of equipment accept this E150 line breaker?
This model is designed for unit-mount installations in individual enclosures, switchboards, and motor control centers that are configured to accept GE TED frame components.
Is this circuit breaker rated for direct current applications?
Yes, in addition to its alternating current limits up to 600VAC, the TED134015WL is rated for up to 500VDC applications with a 10kA interrupting capacity.
Is the TED134015WL HACR rated?
Yes, this 15-amp molded case circuit breaker carries an HACR marking, certifying it for use with heating, air conditioning, and refrigeration equipment.
What is the difference between the GE TEB, TED, and THED breaker frames?
While they share the exact same physical footprint within the E150 line, they offer different maximum short-circuit interrupting ratings. TEB is the standard tier, TED is the mid-tier, and THED is the high-tier option.
Are the trip units on this breaker adjustable or interchangeable?
No, the thermal-magnetic trip unit on the TED134015WL features fixed long-time and instantaneous settings. It is non-interchangeable and cannot be adjusted or swapped for a different trip unit.
