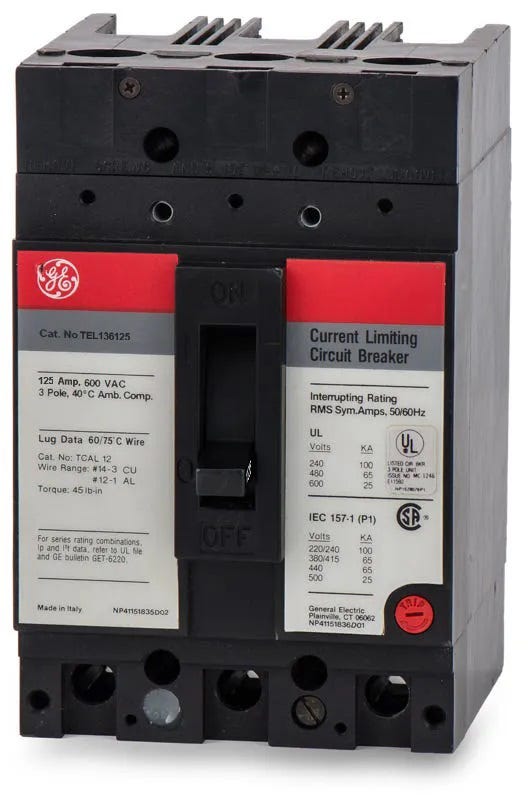

ABB / General Electric TEL136125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL136125
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEL136125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL136125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEL134035WL
35A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136030WL
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEL136020
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the GE TEL136125 is a 3-pole, 125A unit mount molded case circuit breaker from the legacy E-Frame family. It provides reliable thermal-magnetic protection with long-time and instantaneous (LI) trip functions. This breaker installs into GE A-Series panelboards, Spectra switchboards, and motor control centers. It serves as a high-interrupting upgrade for TED136125 or THED136125 models. Rated at 65kAIC at 480VAC, it features current-limiting capabilities.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136125 |
| Series | TEL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TEL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Common Trip |
Product FAQs
5 answersWhich panelboards and switchboards are compatible with the TEL136125?
This breaker is designed to bolt into GE A-Series panelboards, GE Spectra switchboards, and compatible motor control centers.
What makes the TEL frame different from standard TED or THED breakers?
The TEL frame is the high-interrupting, current-limiting version of the GE E-150 line. It shares the exact same physical footprint as TEB, TED, and THED breakers but provides superior fault protection, including a 65kAIC rating at 480VAC.
Can the TEL136125 be mounted on a standard DIN rail?
No. This is a unit-mount, bolt-on circuit breaker. It must be bolted directly to the bus or a mounting pan within a compatible GE enclosure.
Are the thermal and magnetic trip settings adjustable on this model?
No. The TEL136125 features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous trip functions are factory-set and cannot be adjusted in the field.
Can the TEL136125 be used as a replacement for older TED136125 or THED136125 breakers?
Yes. Because it shares the same E-frame dimensions, the TEL136125 can serve as a direct, high-interrupting upgrade for legacy TED136125 and THED136125 models in existing panels.
