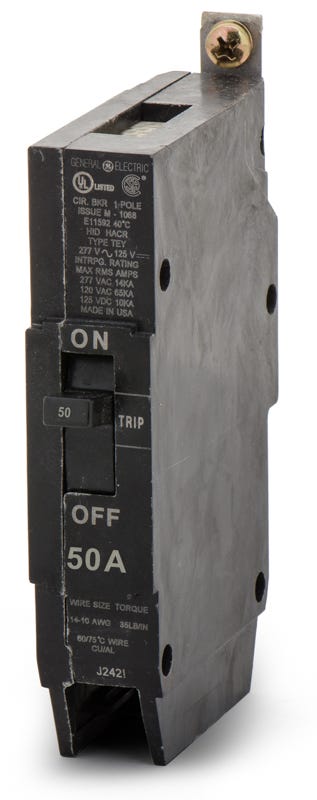

ABB / General Electric TEY150 Molded Case Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
ABB / General Electric
TEY150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEY150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEY150 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEY150 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY150 |
| Series | TEY |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC, 14kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip |
Quantity
ABB / General Electric TEY150 - 50A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY150-R |
| Series | TEY |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC, 14kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip |
Similar Items
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHHQB1150
50A 1 Pole Molded Case Circuit Breaker
1 Pole Circuit Breaker
Description
Manufactured by GE, the TEY150 is a 50-amp, single-pole molded case circuit breaker built for commercial and industrial power distribution. It bolts securely into GE A-Series panelboards, offering a compact 1-inch per pole profile. Equipped with a non-interchangeable thermal-magnetic trip unit, it handles 65 kAIC at 120VAC and 14 kAIC at 277VAC. The unit is HACR and HID rated, ensuring safe operation for heating, air conditioning, and high-intensity discharge lighting applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY150 |
| Series | TEY |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC, 14kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the TEY150 circuit breaker?
The TEY150 is a bolt-on circuit breaker designed specifically for use in GE A-Series lighting panelboards.
Is the TEY150 rated for switching lighting loads?
Yes, the TEY150 carries both SWD (Switching Duty) and HID (High Intensity Discharge) ratings, making it suitable for switching fluorescent and high-intensity discharge lighting circuits.
Can the TEY150 be used for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires HACR-type circuit protection.
What are the lug tightening torque specifications for the TEY150?
The required torque depends on the wire gauge: 35 in-lb for 10 AWG, 40 in-lb for 8 AWG, and 45 in-lb for 6 to 4 AWG conductors.
Are there higher interrupting capacity alternatives to the TEY150?
Yes, if your application requires a higher AIC rating at 277VAC, you can upgrade to the TEYF150 (18kAIC), TEYD150 (25kAIC), TEYH150 (35kAIC), or TEYL150 (65kAIC).
Can the TEY150 be mounted on a standard DIN rail?
No, the TEY150 features a bolt-on mounting style designed exclusively for GE A-Series panelboard busbars and is not compatible with DIN rail mounting.
Can I use the TEY150 in a standard GE Powermark Gold load center?
No, the TEY150 is a commercial bolt-on breaker for A-Series panelboards. It will not fit in residential GE Powermark Gold load centers, which require plug-on THQL or THQP series breakers.
