ABB TEYL1050B Circuit Breaker
- 50
- 1 Pole
- Bolt-On
ABB
TEYL1050B
Circuit Breaker
Brand
ABB
SKU
TEYL1050B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB TEYL1050B 1 Pole Circuit Breaker
New
Quantity
Quantity
ABB TEYL1050B 1 Pole Circuit Breaker
New
Quantity
| Brand | ABB |
|---|---|
| Series | TEY |
| Amperage | 50 A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 480V |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 277VAC, 15kA @ 125VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Quantity
ABB TEYL1050B 1 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | ABB |
|---|---|
| Series | TEY |
| Amperage | 50 A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 480V |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 277VAC, 15kA @ 125VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTEYL1060B
60A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL1040B
40A 1 Pole Molded Case Circuit Breaker
1 Pole Circuit Breaker
Description

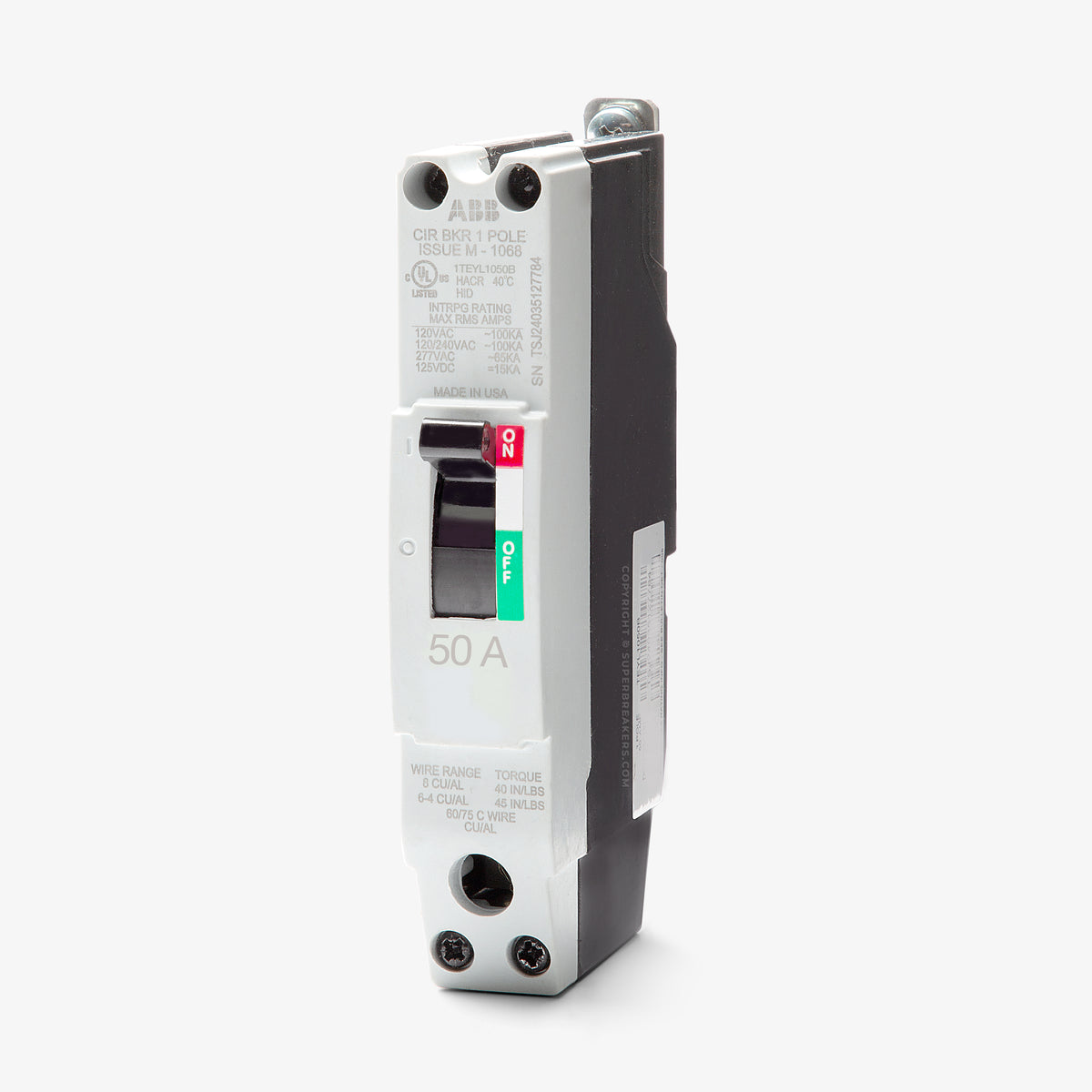

ABB TEYL1050B 1 Pole Circuit Breaker
The ABB TEYL1050B is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 50 Amps and a voltage rating of 480V. It has an interrupting rating of 65kAIC at 480V. The TEYL1050B has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | ABB |
|---|---|
| Series | TEY |
| Amperage | 50 A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 480V |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 277VAC, 15kA @ 125VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the TEYL1050B circuit breaker?
The TEYL1050B is designed for use in GE A-Series lighting panelboards, specifically bolt-on Type AS panels.
Is there a difference between the ABB TEYL1050B and the GE TEYL1050B?
No. ABB acquired GE Industrial Solutions, meaning the TEYL1050B is the exact same circuit breaker regardless of whether it is branded as ABB or General Electric.
Can the TEYL1050B circuit breaker be reverse fed?
Yes. Because this breaker does not have designated Line and Load markings, it is suitable for reverse feed applications when installed according to NEC guidelines and secured with an appropriate retaining bracket.
What does the L in the TEYL1050B part number signify?
In the GE TEY family of breakers, the L designates the highest interrupting capacity tier. It differentiates this breaker from lower-rated versions like the TEYD or TEYH by providing a 65kAIC rating at 277/480VAC.
Is the TEYL1050B rated for use with heating, air conditioning, and refrigeration (HACR) equipment?
Yes. Like most GE TEY-frame circuit breakers, the TEYL1050B carries an HACR rating. Because it is 50 amps or less, it is also UL listed for high-intensity discharge (HID) lighting applications.
Does the TEYL1050B provide ground fault or arc fault protection?
No. The TEYL1050B is a standard thermal-magnetic circuit breaker with fixed long-time and instantaneous trip functions. It does not include GFCI or AFCI protection.
