ABB / General Electric TEYD1015B Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYD1015B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYD1015B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

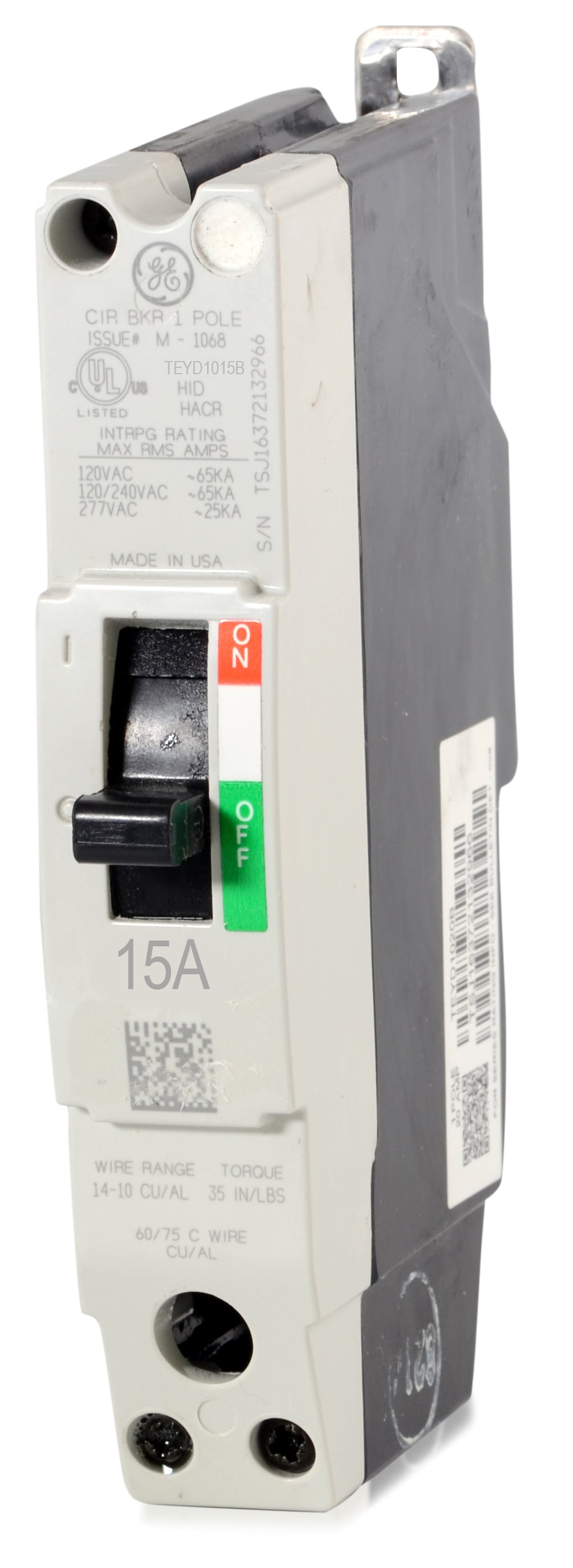

ABB / General Electric TEYD1015B - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYD1035B
35A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD2015B
15A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD3015B
15A 3 Pole Miniature Circuit Breaker
Description
The TEYD1015B is a 1-pole, 15A miniature circuit breaker from GE's Q-Line series. It provides dependable thermal-magnetic protection for commercial and industrial branch circuits. This bolt-on unit is designed to mount into GE A-Series lighting panelboards. It features a non-interchangeable trip and accepts 14-10 AWG wire. Rated 65kAIC at 120/240V and 25kAIC at 277V, it handles high fault currents. It is HACR, HID, and SWD rated for versatile switching applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYD |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 10kA @ 125VDC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Lighting Panels |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Tie, Mounting Base |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the TEYD1015B circuit breaker?
This bolt-on breaker is designed specifically for installation in GE A-Series lighting panelboards.
What does the D in the TEYD1015B part number indicate?
The D designates the interrupting capacity tier within the GE TEY family. TEYD breakers feature a 25kAIC rating at 277VAC, offering higher fault current protection than standard TEY (14kAIC) or TEYF (18kAIC) models.
Can the TEYD1015B be used on 480V systems?
Yes, as a 1-pole breaker, it is rated for use on grounded 480Y/277VAC systems where the phase-to-ground voltage does not exceed 277VAC.
Do I need to use copper wire with the TEYD1015B?
No, the factory-installed load lugs are dual-rated to accept either copper or aluminum conductors ranging from 14 AWG to 10 AWG.
Can I use the TEYD1015B to replace an older standard TEY 15A breaker?
Yes, the TEYD1015B shares the same physical footprint and bolt-on mounting as standard TEY breakers, making it a direct drop-in replacement that provides an upgraded 25kAIC interrupting rating.
Does this breaker provide GFCI or AFCI protection?
No, the TEYD1015B is a standard thermal-magnetic breaker providing long-time and instantaneous (LI) trip functions for overload and short-circuit protection. It does not include ground fault or arc fault circuitry.
