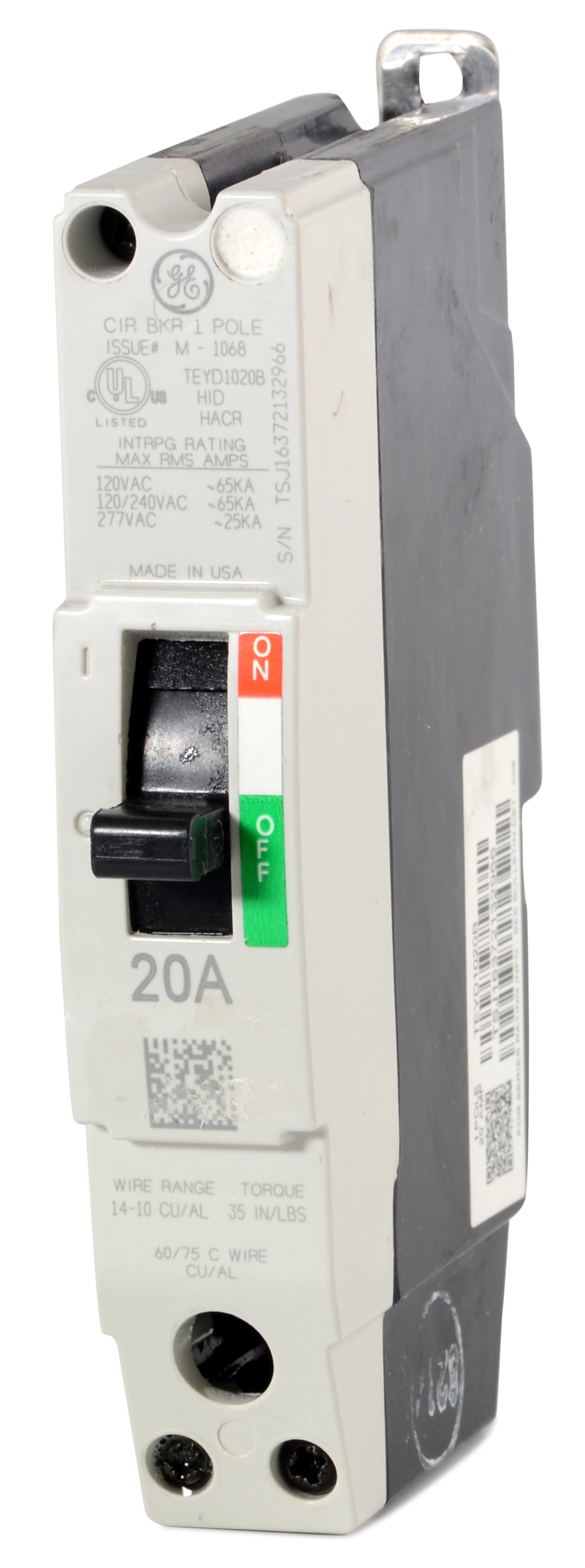

ABB / General Electric TEYD1020B Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYD1020B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYD1020B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYD1020B - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEYD1020B - 20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYD1020B |
| Series | TEYD |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 10kA @ 125VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Quantity
ABB / General Electric TEYD1020B - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEYD |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 10kA @ 125VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTEYD1035B
35A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD2020B
20A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD3020B
20A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial use, the TEYD1020B is a 1-pole, 20A miniature circuit breaker. It delivers robust thermal-magnetic protection for branch circuits. This bolt-on breaker installs seamlessly into GE A-Series panelboards. It includes load side lugs that accommodate 14-10 AWG Cu or 12-10 AWG Al wire. With a 65kAIC rating at 120/240V and 25kAIC at 277V, it provides excellent short-circuit protection. It is HACR, HID, and SWD rated for specialized loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYD |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 10kA @ 125VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
4 answersWhat panelboards accept the TEYD1020B circuit breaker?
The TEYD1020B is designed specifically for GE A-Series lighting panelboards, including bolt-on chassis types like the AS, AD, and AE series panels.
What is the difference between GE TEY, TEYD, TEYH, and TEYL circuit breakers?
The primary difference is their short-circuit interrupting rating at 277VAC. The standard TEY is rated at 14kAIC, the TEYD is rated at 25kAIC, the TEYH at 35kAIC, and the TEYL at 65kAIC. They share the same physical frame size and mount into the same A-Series panelboards.
How does the TEYD1020B install into the panelboard?
It is a bolt-on breaker that fastens directly to the bus of GE A-Series panelboards using mounting screws. This provides a secure, vibration-resistant connection for commercial and industrial environments. It is not compatible with DIN rail mounting or plug-on load centers.
Does the TEYD1020B provide arc-fault or ground-fault protection?
No, the TEYD1020B is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection. It does not include GFCI or AFCI functionality.
