ABB / General Electric TEYD1035B Miniature Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYD1035B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYD1035B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

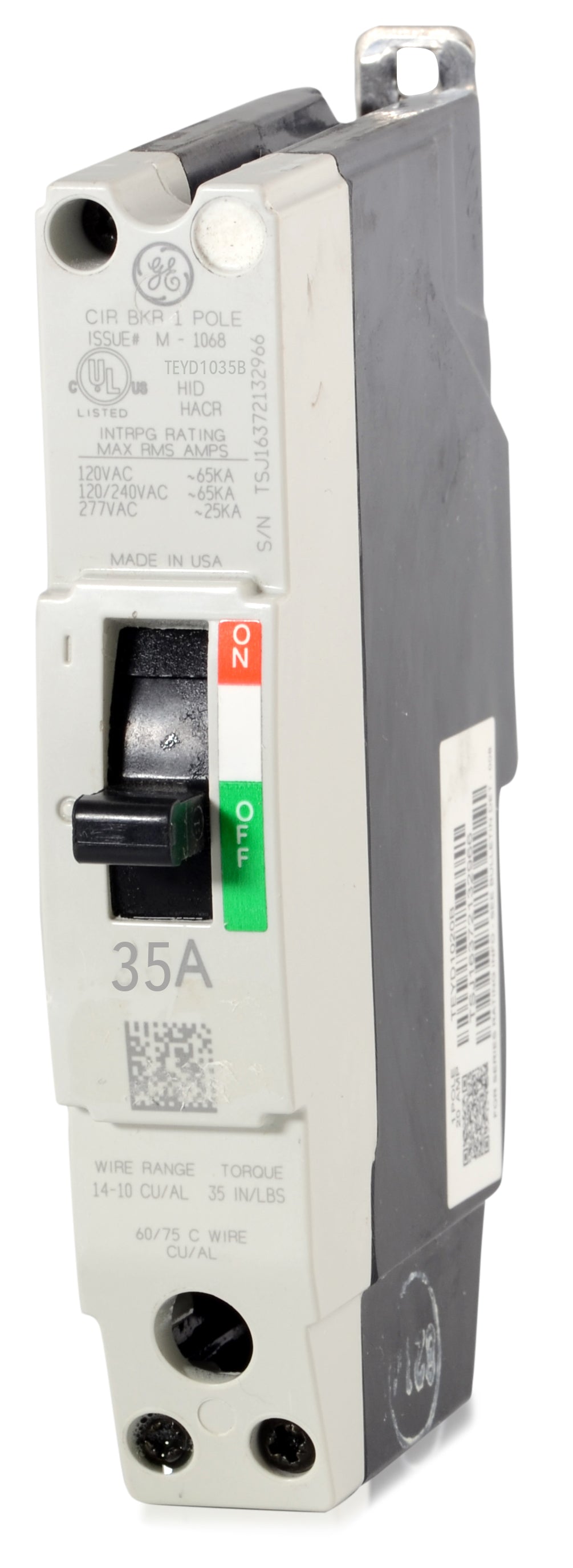

ABB / General Electric TEYD1035B - 35A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYD1015B
15A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD3035B
35A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEYH1035B
35A 1 Pole Miniature Circuit Breaker
Description
Utilizing a fixed thermal-magnetic trip unit, this 35-amp component delivers consistent overcurrent protection for industrial facilities. It fastens into GE A-Series lighting panels using a reliable bolt-on configuration that prevents loose connections over time. With an impressive 65kAIC interrupt capacity at 120VAC and 25kAIC at 277VAC, the device is fully HACR and HID rated to support heavy-duty HVAC equipment and high-intensity discharge lighting.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYD1035B |
| Series | TEYD |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 10kA @ 125VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panels |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, HID, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the TEYD1035B circuit breaker?
The TEYD1035B is a bolt-on miniature circuit breaker designed specifically for use in GE A-Series lighting panels. It is not compatible with standard plug-on load centers or DIN rail systems.
How does the TEYD series differ from standard TEY breakers in interrupting capacity?
The TEYD series offers a higher short-circuit interrupting rating of 25kAIC at 277VAC. In comparison, standard TEY breakers are rated at 14kAIC and TEYF breakers at 18kAIC for the same voltage.
What wire sizes and materials are supported by the terminal lugs on the TEYD1035B?
The factory-installed lugs accept wire sizes from 10 AWG to 4 AWG. The terminals are rated for both copper and aluminum conductors, providing flexibility for various branch circuit installations.
Will the TEYD1035B arrive with ABB or General Electric branding?
Because ABB acquired GE Industrial Solutions, this breaker may feature ABB branding, GE branding, or a combination of both. The physical dimensions, fit, and technical specifications remain identical regardless of the label.
What type of trip protection does the TEYD1035B provide?
This breaker utilizes a fixed thermal magnetic trip unit with Long-Time and Instantaneous (LI) functions. The thermal component protects against sustained overloads, while the magnetic component responds immediately to short circuits.
Is the TEYD1035B suitable for HVAC and lighting applications?
Yes, this 35A breaker is fully HACR rated for heating, air conditioning, and refrigeration equipment. It is also HID rated, making it suitable for switching high-intensity discharge lighting loads.
