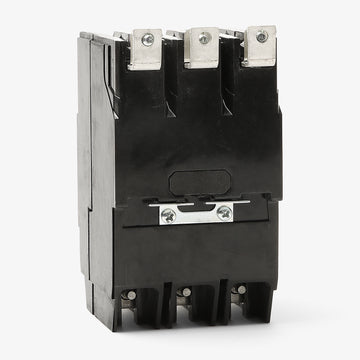

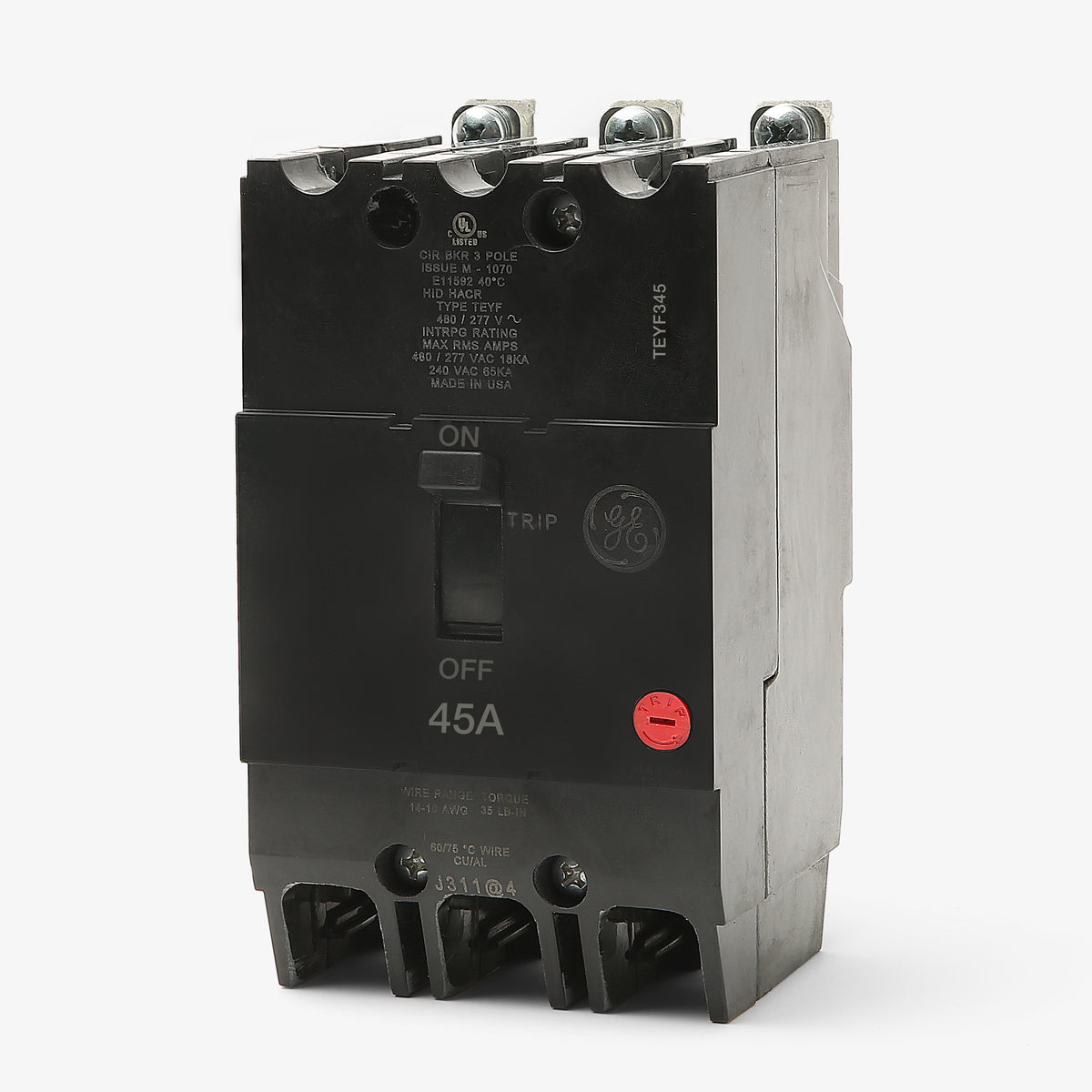

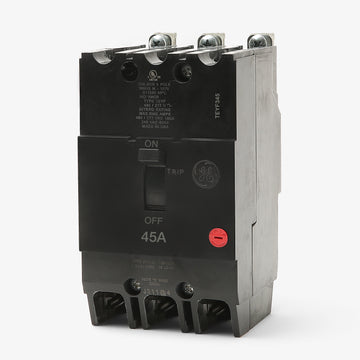

ABB / General Electric TEYF345 Miniature Circuit Breaker
- 45A
- 3 Pole

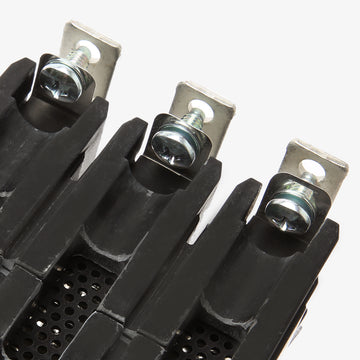

- Bolt-On
ABB / General Electric
TEYF345
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYF345
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYF345 - 45A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
3 Pole Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
3 Pole Circuit Breaker
Description
Part of the Q-Line family, this 45-amp, 3-pole miniature circuit breaker provides reliable overcurrent protection for commercial and industrial applications. It installs into GE A-Series lighting panelboards using a secure bolt-on connection, ensuring a stable fit in demanding environments. Rated for 18 kAIC at 480Y/277V and 65 kAIC at 240V, the unit features a non-interchangeable thermal-magnetic trip unit. It is fully HACR and HID rated, utilizing quick-make/quick-break mechanisms.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYF |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEYF |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the TEYF345 breaker?
This bolt-on breaker is designed for installation in GE A-Series lighting panelboards. It can also be used in standalone unit-mount or lug-to-lug applications when paired with a TEY3B mounting base.

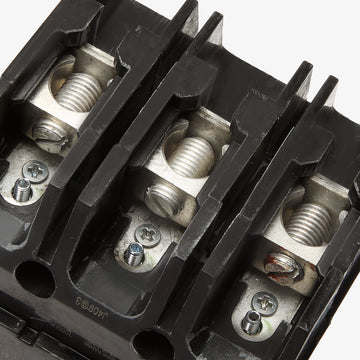

What is the acceptable wire size and torque specification for the TEYF345 lugs?
The factory-installed lugs accept 10-4 AWG copper or aluminum wire. The recommended tightening torque is 35 in-lb for #10 AWG, 40 in-lb for #8 AWG, and 45 in-lb for #6 to #4 AWG wire.
Does the TEYF345 breaker require a specific mounting base for standalone installation?
Yes, if you are not installing it directly into an A-Series panelboard, you will need the TEY3B three-pole mounting base to use the TEYF345 in unit-mount or lug-to-lug applications.
What does the F in the TEYF345 part number indicate?
The F designates the short-circuit interrupting capacity tier. While a standard TEY breaker is rated at 14kAIC at 480Y/277VAC, the TEYF tier provides a higher interrupting rating of 18kAIC at 480Y/277VAC.
Can the TEYF345 be used in DC circuits?
Yes, the TEYF345 is rated for use in direct current applications up to 250VDC, with a short-circuit interrupting rating of 10kAIC.
Why might my TEYF345 breaker be branded as ABB instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, TEYF series breakers and compatible A-Series panelboards may carry the ABB brand, the GE brand, or both, but they are the exact same form, fit, and function.
