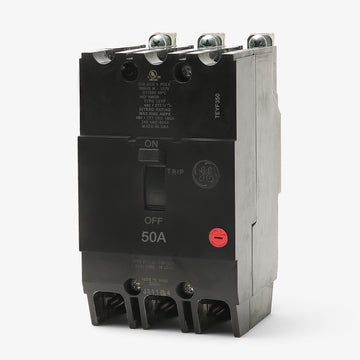

ABB / General Electric TEYF350 Miniature Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
ABB / General Electric
TEYF350
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYF350
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYF350 - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEYF350 - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYF350 |
| Series | TEYF |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
ABB / General Electric TEYF350 - 50A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEYF |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip, Reverse Feed |
Similar Items
3 Pole Circuit Breaker
3 Pole Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
Description
Built for commercial power distribution, this 50A, 3-pole breaker offers robust long-time and instantaneous trip functions for 480Y/277V systems. It mounts into GE A-Series lighting panelboards, providing a dependable bolt-on connection that resists vibration. Delivering an 18 kAIC interrupt rating at 480Y/277V and 65 kAIC at 240V, the device ensures excellent fault clearing. It includes common trip bars and is both HACR and HID rated for specialized lighting and HVAC loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYF350 |
| Series | TEYF |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 277VAC, 18kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
8 answersWhich panelboards are compatible with the TEYF350?
The TEYF350 is a bolt-on breaker designed specifically for use in GE A-Series Lighting Panelboards.
What is the difference between the standard TEY350 and the TEYF350?
Both breakers share the same physical dimensions and TEY frame, but the TEYF350 offers a higher interrupting rating. The TEYF350 is rated at 18kAIC at 480Y/277VAC, whereas the standard TEY350 is rated at 14kAIC. The TEYF350 can be used as a direct, upgraded replacement.
What are the lug torque specifications for the TEYF350?
The recommended lug tightening torque depends on the wire gauge used: 35 in-lb for 10 AWG, 40 in-lb for 8 AWG, and 45 in-lb for 6 to 4 AWG conductors.
Can I mount the TEYF350 on a standard DIN rail?
No, the TEYF350 is a bolt-on miniature circuit breaker. It must be bolted directly to the busbar of a compatible GE A-Series panelboard and does not support DIN rail mounting.
Can the TEYF350 be used in DC applications?
Yes, the TEYF350 is rated for DC applications and provides an interrupting capacity of 10kA at 250VDC.
Does the TEYF350 accept aluminum wiring?
Yes, the factory-installed lugs are rated for both copper (Cu) and aluminum (Al) conductors, accepting wire sizes from 10 AWG to 4 AWG.
Can I adjust the trip settings on the TEYF350?
No, the TEYF350 features a non-interchangeable, fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions cannot be adjusted in the field.
Is the TEYF350 suitable for HVAC equipment?
Yes, the TEYF350 is UL listed as HACR (Heating, Air Conditioning, and Refrigeration) rated, making it fully compliant for protecting HVAC circuits.
