ABB / General Electric TEYL1060B Molded Case Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYL1060B
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEYL1060B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

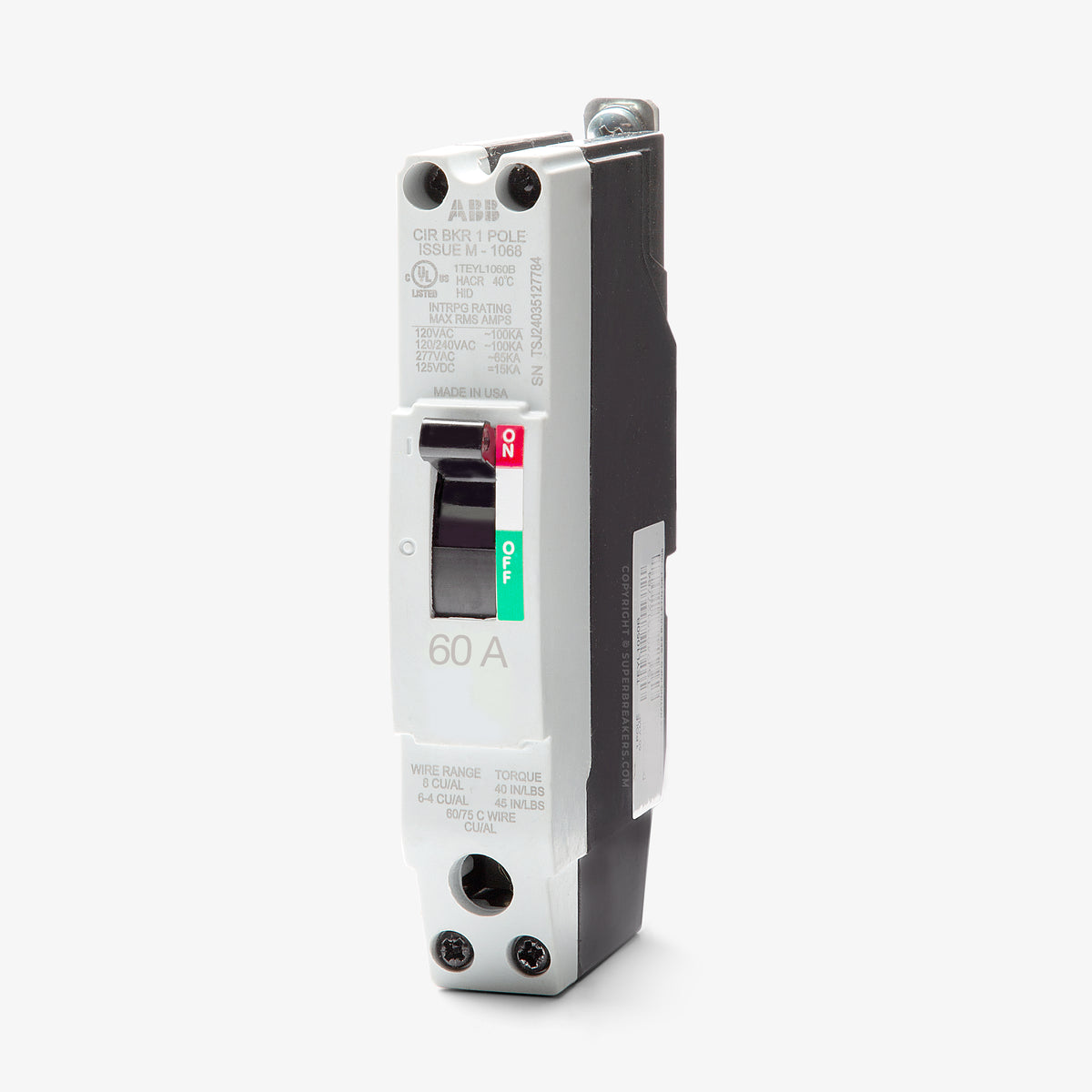

ABB / General Electric TEYL1060B - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYL1045B
45A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL1040B
40A 1 Pole Molded Case Circuit Breaker
1 Pole Circuit Breaker
Description
Delivering reliable commercial power control, the GE TEYL1060B is a 60-amp, single-pole molded case circuit breaker. It utilizes fixed thermal and magnetic trip elements for consistent overcurrent defense. This breaker mounts into GE A-Series lighting panelboards using a secure bolt-on connection. It includes factory-installed load lugs that accept 10-4 AWG wiring. With a 65kAIC rating at 277VAC and 100kAIC at 120VAC, this current-limiting, HACR-rated device safely clears severe faults.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 277VAC, 15kA @ 125VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat panelboards are compatible with the TEYL1060B circuit breaker?
The TEYL1060B is a bolt-on circuit breaker designed specifically for use in ABB and GE A-Series lighting panelboards.
What does the L in the TEYL1060B catalog number signify?
The L indicates the highest short-circuit interrupting tier within the TEY frame family. While a standard TEY breaker is rated for 14kA at 277VAC, the TEYL provides a fully rated 65kA interrupting capacity at 277VAC.
What are the lug torque specifications for the TEYL1060B?

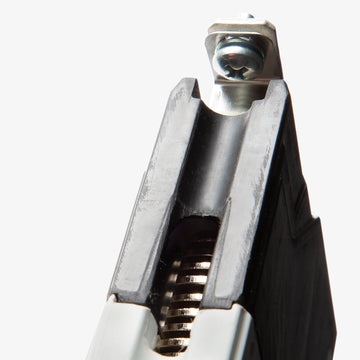

For the factory-installed load lugs, the recommended tightening torque is 35 in-lb for 10 AWG wire, 40 in-lb for 8 AWG wire, and 45 in-lb for 6 to 4 AWG wire.
Can I use the TEYL1060B to replace a standard TEY1060 breaker?
Yes. The TEYL1060B shares the same physical dimensions and 1-inch pole spacing as standard TEY, TEYF, TEYD, and TEYH breakers. It can be installed in the same A-Series panelboards when a higher interrupting capacity is required.
Is the TEYL1060B suitable for direct current applications?
Yes, this thermal-magnetic breaker is UL listed for DC applications and carries an interrupting rating of 15kA at 125VDC.
Does the TEYL1060B mount on a standard DIN rail?
No, this is a bolt-on molded case circuit breaker designed exclusively for unit-mount installations in compatible GE panelboards. It does not support DIN rail mounting.
What type of trip unit is installed in the TEYL1060B?
It features a fixed thermal-magnetic trip unit with non-interchangeable long-time and instantaneous (LI) trip functions.
