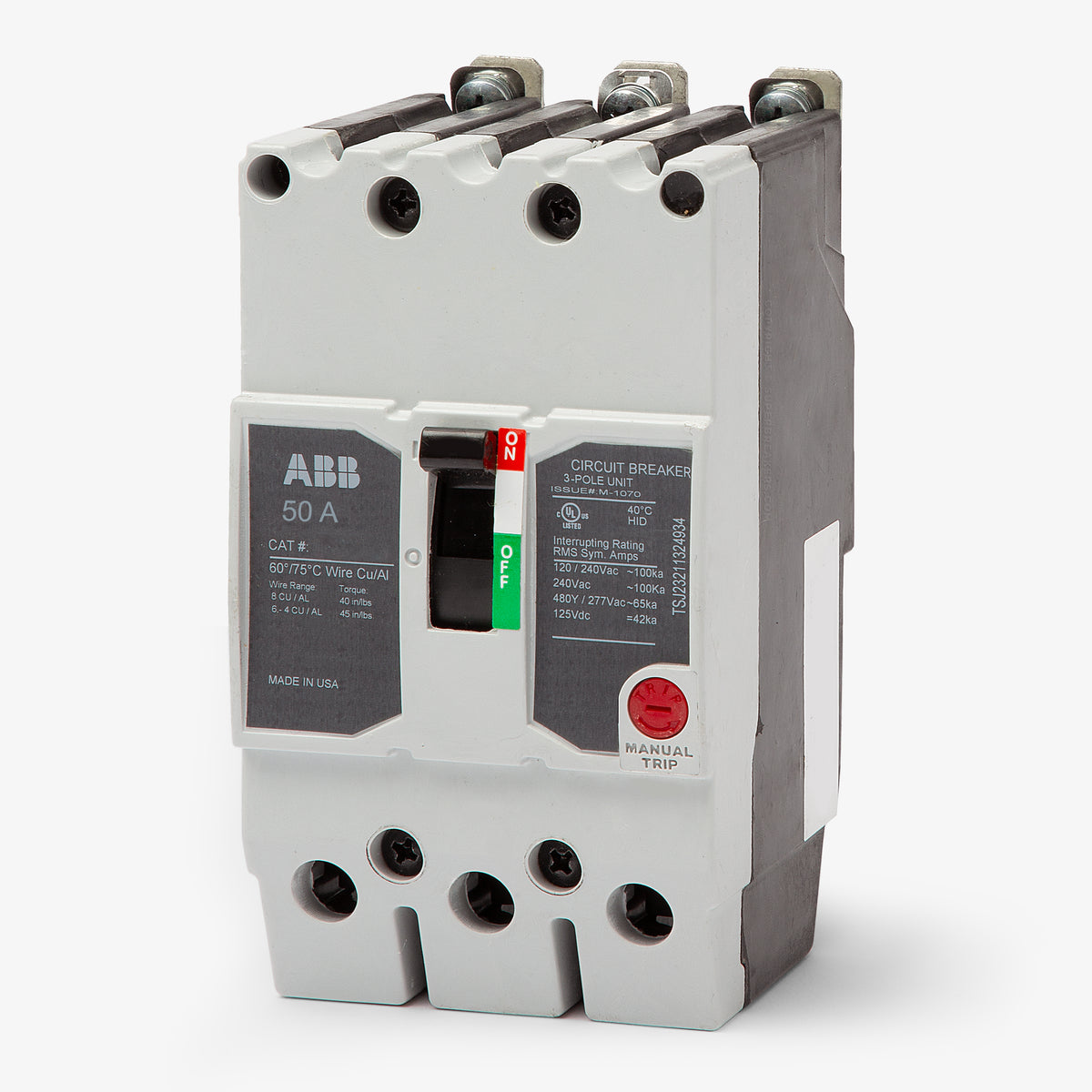

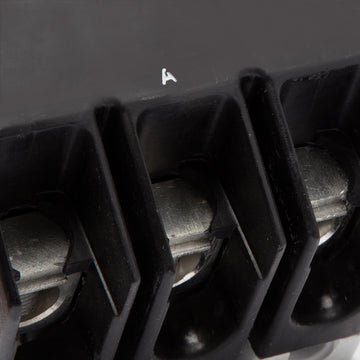

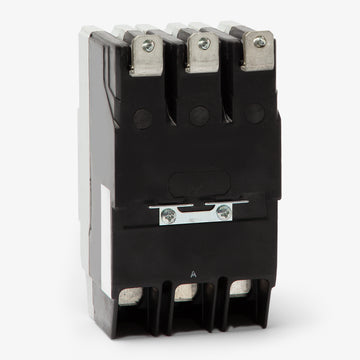

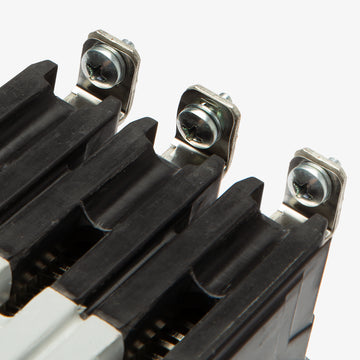

ABB / General Electric TEYL3050B Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
ABB / General Electric
TEYL3050B
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEYL3050B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYL3050B - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEYL3050B - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEYL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity |
Sold out
Quantity
ABB / General Electric TEYL3050B - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEYL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
3 Pole Circuit Breaker
3 Pole Circuit Breaker
3 Pole Circuit Breaker
Description
Part of the GE Q-Line family, the TEYL3050B is a 3-pole, 50A molded case circuit breaker built for commercial applications. It features a compact, one-inch-per-pole design. This unit installs into GE A-Series lighting panelboards. The bolt-on mounting base ensures a secure connection in demanding electrical distribution environments. Rated for 65 kAIC at 480Y/277V, it provides high interrupting capacity. It is HACR rated and utilizes a quick-make, quick-break mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEYL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
5 answersWhat panelboards are compatible with the TEYL3050B?
This breaker is designed specifically for use in GE A-Series lighting panelboards. It uses a bolt-on mounting configuration to secure directly to the panel bus.
What are the wire size requirements for the TEYL3050B?
The factory lug terminals accept 10 to 4 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
Is the TEYL3050B rated for direct current (DC) systems?
Yes, this thermal magnetic breaker carries DC interrupting ratings of 42kA at 125VDC and 35kA at 250VDC.
How does the interrupting capacity differ between 240V and 480V systems?
The breaker provides a 100kA interrupting capacity at 240VAC, which decreases to 65kA when applied in 480/277VAC systems.
Are the trip settings adjustable on the TEYL3050B?
No, it features a non-adjustable, fixed thermal and fixed magnetic trip unit that provides standard Long-Time and Instantaneous (LI) protection.
