General Electric TEYL3070B Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
General Electric
TEYL3070B
Circuit Breaker
Brand
General Electric
SKU
TEYL3070B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
General Electric TEYL3070B 3 Pole Circuit Breaker
New
Quantity
Quantity
General Electric TEYL3070B 3 Pole Circuit Breaker
New
Quantity
| Brand | General Electric |
|---|---|
| Series | TEYL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480/277V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Quick-Make/Quick-Break, Common Trip |
Quantity
General Electric TEYL3070B 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | General Electric |
|---|---|
| Series | TEYL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480/277V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Quick-Make/Quick-Break, Common Trip |
Similar Items
3 Pole Circuit Breaker
3 Pole Circuit Breaker
ABB / General ElectricTEYL3050B
50A 3 Pole Molded Case Circuit Breaker
Description

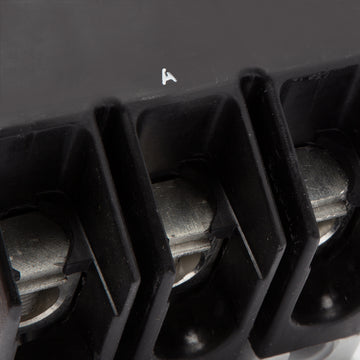

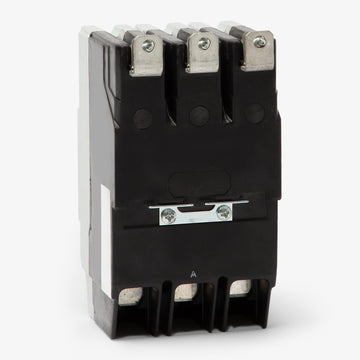

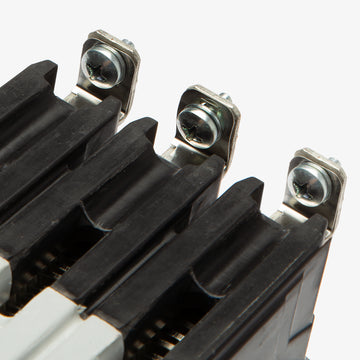

General Electric TEYL3070B 3 Pole Circuit Breaker
The General Electric TEYL3070B is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 70 Amps and a voltage rating of 480/277V. It has an interrupting rating of 65kAIC at 480V. The TEYL3070B has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | General Electric |
|---|---|
| Series | TEYL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480/277V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Quick-Make/Quick-Break, Common Trip |
Product FAQs
6 answersWhat is the recommended load lug torque for the TEYL3070B circuit breaker?
Lug torque values for this breaker depend on the wire gauge installed. For 4 AWG copper or aluminum wire, torque the lugs to 45 in-lbs. For 3 AWG through 1/0 AWG conductors, torque the lugs to 50 in-lbs.
What is the difference between the GE TEYL3070B, TEYD3070B, and TEYH3070B breakers?
These breakers share the exact same physical footprint and panelboard compatibility, but they have different short circuit interrupting ratings at 480/277V AC. The TEYD3070B is rated at 25 kAIC, the TEYH3070B at 35 kAIC, and the TEYL3070B provides the highest rating at 65 kAIC.
What panelboards accept the TEYL3070B circuit breaker?
The TEYL3070B is a bolt-on branch breaker designed exclusively for GE A-Series lighting panelboards, including type AS and Pro-Stock interiors.
Can the TEYL3070B be used as a direct replacement for lower rated TEY breakers?
Yes, the TEYL3070B will physically fit into the same bolt-on slots as the TEYD3070B or TEYH3070B. Because it has a higher interrupting rating, it safely upgrades and replaces those lower rated models in 480/277V applications.
Can I use aluminum wire with the standard lugs on the TEYL3070B?
Yes, the factory installed load lugs on the TEYL3070B are dual rated, meaning they are certified to safely terminate either copper or aluminum conductors ranging from 4 AWG to 1/0 AWG.
Does the TEYL3070B require a separate mounting kit?
For standard installation into a GE A-Series panelboard, no additional mounting kit is required. However, if using the breaker in a standalone or lug-to-lug unit-mount configuration, a separate 3-pole mounting base (catalog number TEY3B) must be used.
