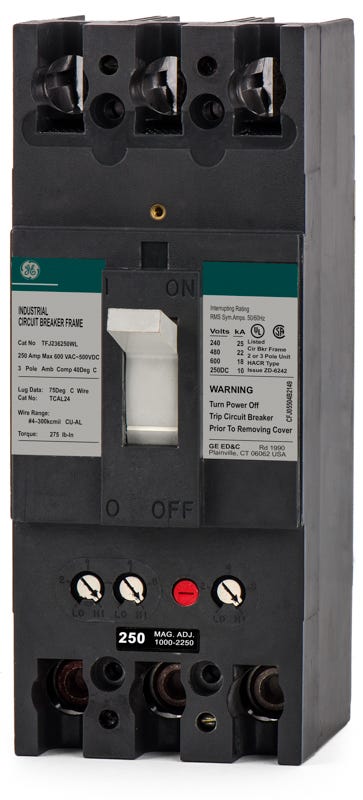

ABB / General Electric TFJ236250WL Molded Case Circuit Breaker
- 250A
- 3 Pole
- Unit Mount
ABB / General Electric
TFJ236250WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236250WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236250WL - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TFJ236250WL - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236250WL |
| Series | TFJ |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Includes Line and Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TFJ236250WL - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236250WL-R |
| Series | TFJ |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Includes Line and Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTFJ236200WL
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236175WL
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236150WL
150A 3 Pole Molded Case Circuit Breaker
Description
Designed for robust industrial applications, the GE TFJ236250WL is a 250A, 3-pole MCCB. It utilizes thermal-magnetic trip technology to safeguard circuits against overloads. This unit mount breaker fits GE A-Series panelboards, enclosures, and switchboards. It includes factory-installed TCAL25 lugs, accepting 4 AWG to 300 kcmil wire. With a 22kAIC rating at 480VAC, this F-Frame device features an adjustable magnetic trip. It is HACR rated and capable of reverse feeding.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236250WL-R |
| Series | TFJ |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Includes Line and Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the "WL" suffix mean in the TFJ236250WL catalog number?
The "WL" suffix indicates that the circuit breaker ships from the factory with both line and load side lugs installed. These standard factory lugs are rated for terminating either copper or aluminum conductors.
What is the difference between GE TFJ and TFK circuit breakers?
The TFJ series features a factory assembled, non-interchangeable trip unit. In contrast, the TFK series utilizes an interchangeable trip unit, allowing the trip mechanism to be swapped in the field. Both models share the exact same F-Frame physical footprint.
Is the TFJ236250WL suitable for reverse feed applications?
Yes. GE TFJ frame molded case circuit breakers are rated and suitable for reverse feed wiring. Note that the similar TFK frame breakers with interchangeable trips are not suitable for reverse feed.
How does the adjustable magnetic trip function work on this breaker?
The TFJ236250WL features a fixed thermal element for standard overload protection and an adjustable magnetic element for short-circuit protection. The instantaneous magnetic pickup levels can be tuned using a dedicated adjustment dial located on the front face of the trip unit.
How is this unit mount breaker installed into GE panelboards?
While the breaker itself is a standard unit mount design, installing it into GE A-Series or Spectra Series panelboards requires specific twin mount hardware kits, such as the AMC or CDP module kits, to securely bolt the breaker to the panelboard bus.
Does this circuit breaker carry an HACR rating?
Yes, GE TFJ frame circuit breakers are HACR rated, making them fully compliant and suitable for use with standard heating, air conditioning, and refrigeration equipment group motor loads.
