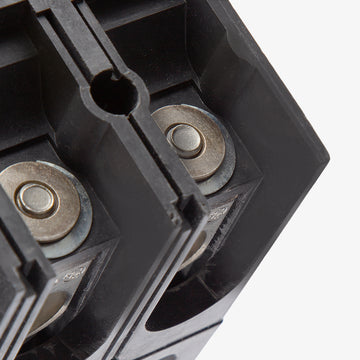

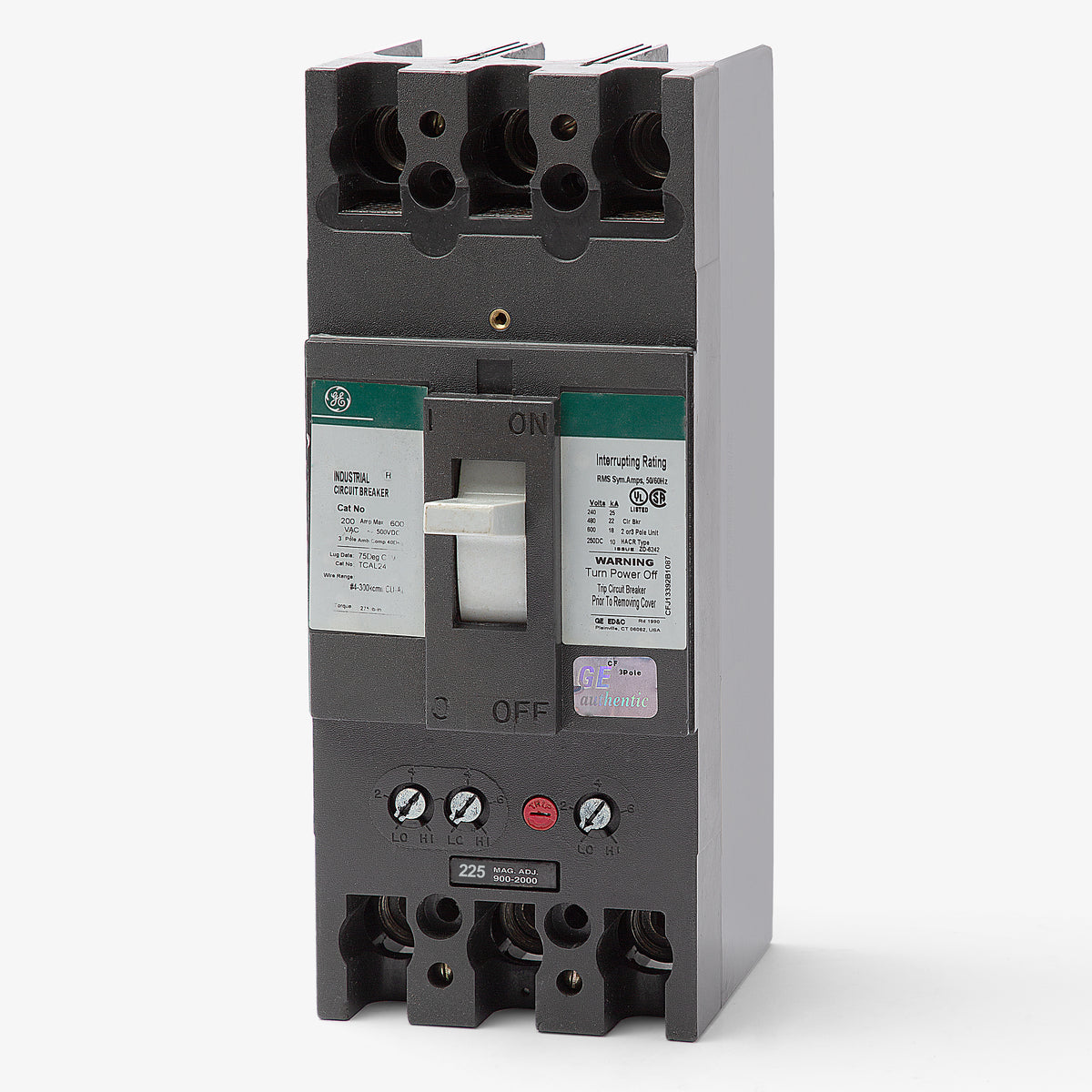

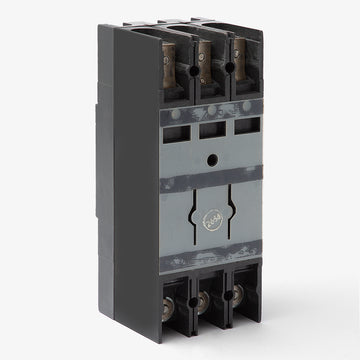

ABB / General Electric TFJ236225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
ABB / General Electric
TFJ236225
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TFJ236225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236225 |
| Series | TFJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE J-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TFJ236225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236225-R |
| Series | TFJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE J-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTFJ236175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236125
125A 3 Pole Molded Case Circuit Breaker
Description
Designed to protect commercial and industrial circuits, the GE TFJ236225 is a 3-pole, 225A molded case circuit breaker. It provides essential long-time and instantaneous trip functions to safeguard equipment on systems up to 600VAC. This F-Frame breaker mounts securely into GE A-Series and legacy J-Line panelboards. Offering an interrupting rating of 22 kAIC at 480VAC, the breaker handles significant fault currents. It is fully HACR rated and capable of reverse feed applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236225-R |
| Series | TFJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE J-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the TFJ236225 breaker?
This bolt-on circuit breaker is designed for direct installation in General Electric A-Series and legacy J-Line panelboards.
Does this F-Frame breaker feature an interchangeable trip unit?
No. The TFJ236225 utilizes a non-interchangeable trip block with a fixed thermal element and an adjustable magnetic setting.
Can the TFJ236225 be used in reverse feed applications?
Yes. This molded case breaker is capable of reverse feed applications, allowing it to be safely back-fed in an electrical distribution panel.
How does the TFJ236225 perform in DC voltage systems?
Beyond its standard AC capabilities, this breaker is fully rated for direct current distribution up to 500VDC, maintaining a stable 10kA interrupting capacity for industrial DC control circuits.
What protection does the LI trip function provide?
The LI designation means the thermal magnetic trip unit delivers Long-time (L) protection to clear sustained overloads and Instantaneous (I) protection for immediate short-circuit isolation.
What frame platform does this circuit breaker belong to?
The TFJ236225 is part of the legacy General Electric F225 line, which is an F-Frame molded case platform designed for a maximum continuous current capacity of 225 amps.
What wire materials are accepted by the factory terminal lugs?

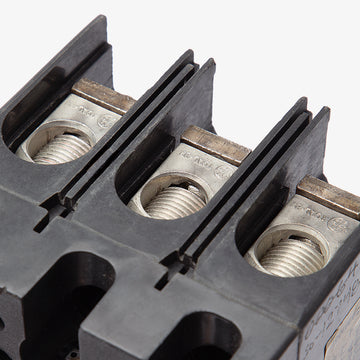

The standard mechanical box lugs are dual-rated to support both copper and aluminum conductors sized between 4 AWG and 300 kcmil.
