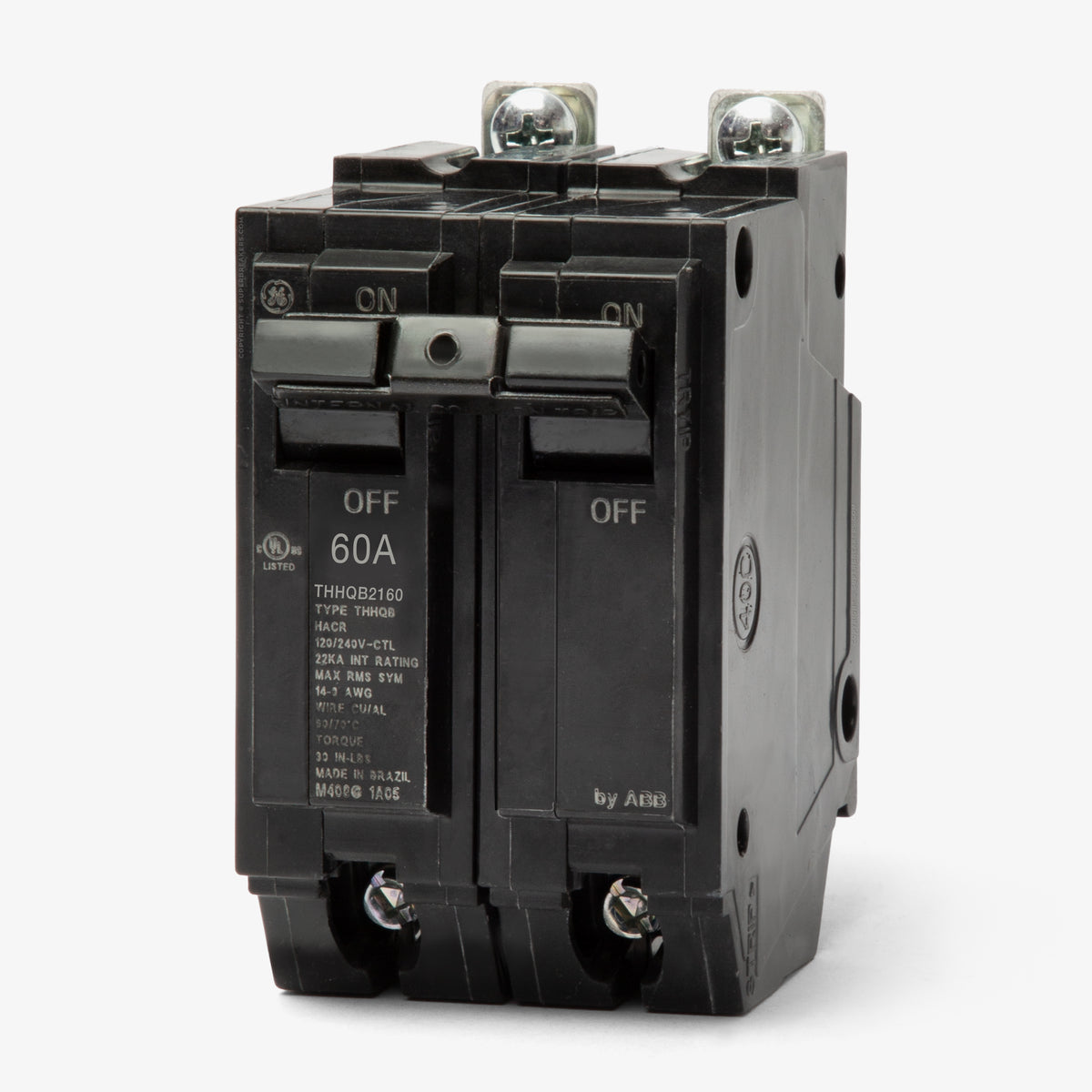

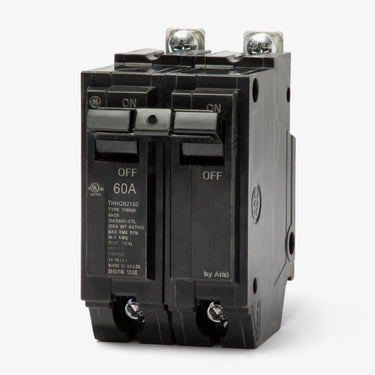

ABB / General Electric THHQB2160 Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
ABB / General Electric
THHQB2160
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB2160
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB2160 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB2160 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2160 |
| Series | THHQB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Lighting Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
ABB / General Electric THHQB2160 - 60A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2160-R |
| Series | THHQB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Lighting Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip, Reverse Feed |
Similar Items
ABB / General ElectricTHHQB2150
50A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2145
45A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2180
80A 2 Pole Miniature Circuit Breaker
Description
Designed for commercial lighting and distribution, the GE THHQB2160 is a 60A, two-pole miniature circuit breaker. It delivers dependable protection for branch circuits requiring an elevated interrupting capacity. This component mounts into GE A-Series and ReliaGear lighting panelboards, utilizing a bolt-on connection for maximum stability. Boasting a 22kAIC rating at 120/240VAC, it easily handles substantial fault currents. The breaker incorporates an internal common trip and an HACR rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2160 |
| Series | THHQB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Lighting Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhat panelboards accept the THHQB2160 circuit breaker?
This bolt-on breaker is designed exclusively for commercial and industrial panelboards, specifically GE A-Series and ReliaGear Lighting Panelboards. It will not fit in standard residential load centers that require plug-in breakers.
What is the difference between the THQB2160 and THHQB2160?
Both are 60A, 2-pole, bolt-on Q-Line circuit breakers, but they have different short-circuit interrupting ratings. The THQB2160 is rated at 10kAIC, while the THHQB2160 features a higher interrupting capacity of 22kAIC at 120/240VAC.
Can I use the THHQB2160 to replace a THHQL2160?
No. While both are 60A, 2-pole, 22kAIC breakers, the THHQB2160 is a bolt-on breaker for commercial panelboards. The THHQL2160 is a plug-in breaker designed for residential load centers. They mount differently and are not interchangeable.
What is the recommended lug tightening torque for the THHQB2160?
The required torque depends on the wire gauge installed. Torque 8 AWG wire to 40 in-lb, 6 to 4 AWG wire to 45 in-lb, and 3 AWG wire to 50 in-lb.
Is the THHQB2160 suitable for reverse feed applications?
Yes, GE Q-Line THHQB molded case circuit breakers are suitable for reverse feed installations.
Is this breaker HACR rated?
Yes, the THHQB2160 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment circuits.
