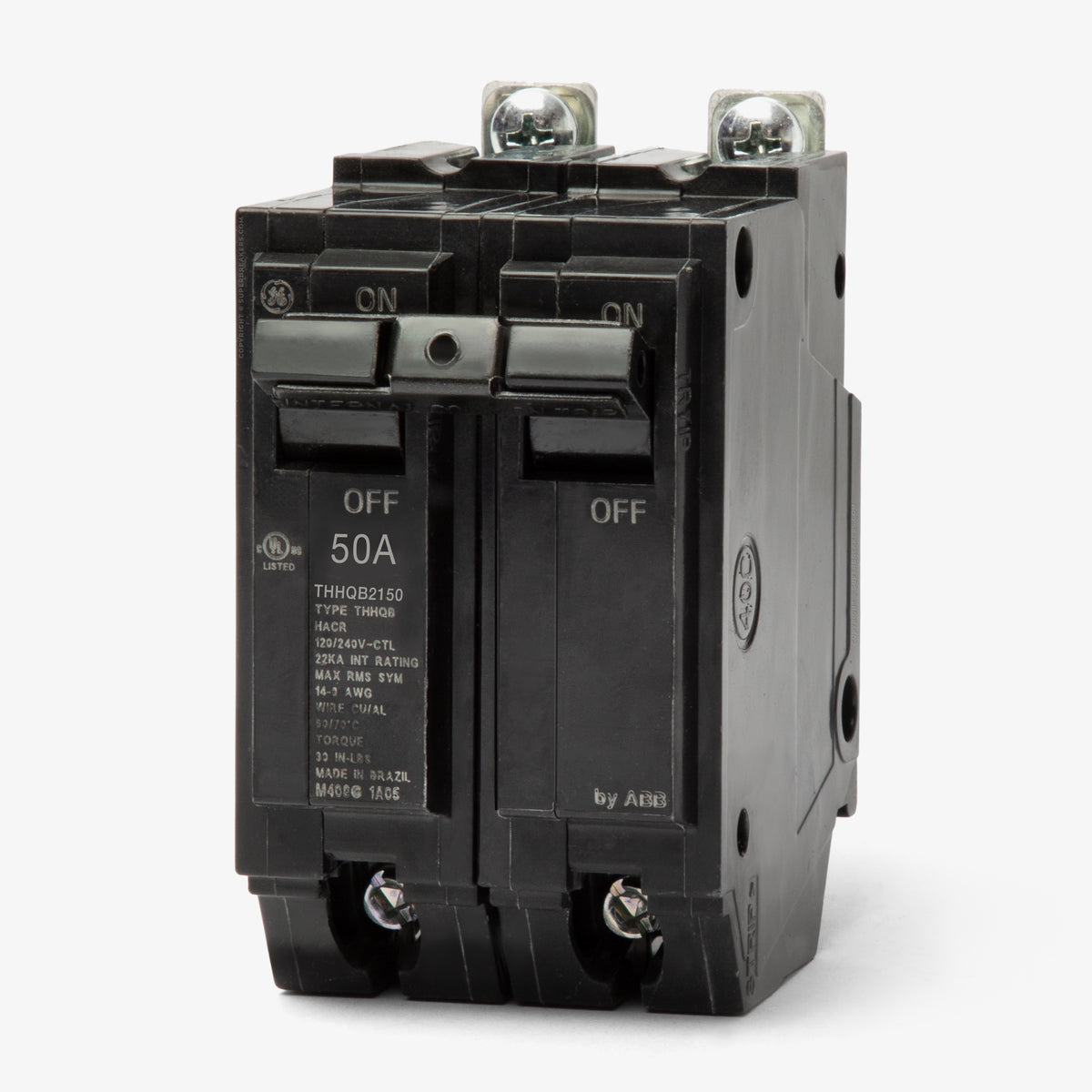

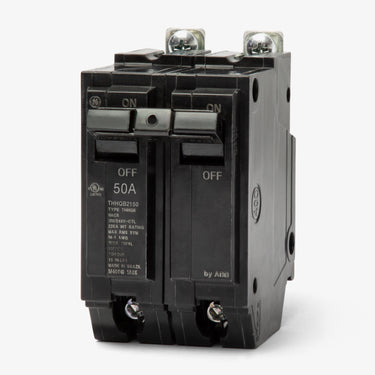

ABB / General Electric THHQB2150 Miniature Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
ABB / General Electric
THHQB2150
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB2150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB2150 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB2150 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2150 |
| Series | THHQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|

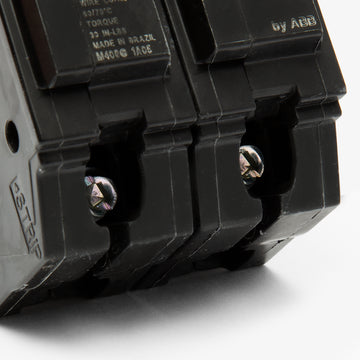

| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Sold out
Quantity
ABB / General Electric THHQB2150 - 50A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2150-R |
| Series | THHQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Similar Items
ABB / General ElectricTHHQB2160
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2140
40A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2135
35A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial applications, the GE THHQB2150 is a 50A, two-pole Q-Line breaker. It provides reliable thermal-magnetic protection for branch circuits requiring higher interrupting capacities. This unit bolts securely into GE A-Series and ReliaGear RQ panelboards, ensuring a solid connection to the bus. Rated at 22kAIC at 120/240VAC, it safely clears substantial fault currents. Additional features include an internal common trip and an HACR rating for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2150 |
| Series | THHQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
5 answersCan I install the THHQB2150 in a residential PowerMark load center?
No. The THHQB2150 is a bolt-on circuit breaker intended for commercial GE A-Series and ReliaGear RQ panelboards. Residential PowerMark load centers require plug-in Q-Line breakers, such as the THQL or THHQL series.
What is the difference between the THQB2150 and the THHQB2150?
The difference lies in the short circuit interrupting capacity. The standard THQB2150 has a 10kAIC rating, whereas the THHQB2150 provides a higher 22kAIC rating. Both share the same physical dimensions and bolt-on mounting.
Is the THHQB2150 HACR rated?
Yes, this breaker carries an HACR rating, making it approved for protecting heating, air conditioning, and refrigeration equipment circuits.
Is the THHQB2150 suitable for reverse feed applications?
Yes, this breaker is suitable for reverse feeding. It does not have dedicated line and load markings, allowing it to be back-fed in applications such as secondary power sources.
Does the THHQB2150 require a separate mounting hardware kit?

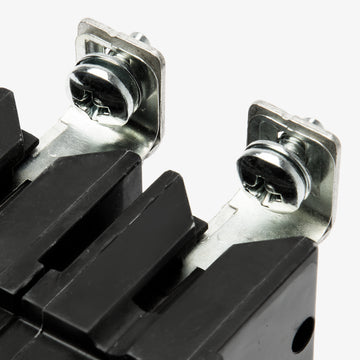

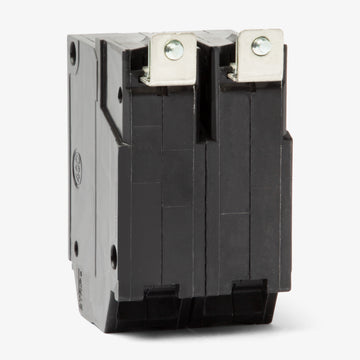

No, this breaker bolts directly to the busbar of compatible GE A-Series and ReliaGear RQ panelboards using its integrated mounting screws.
