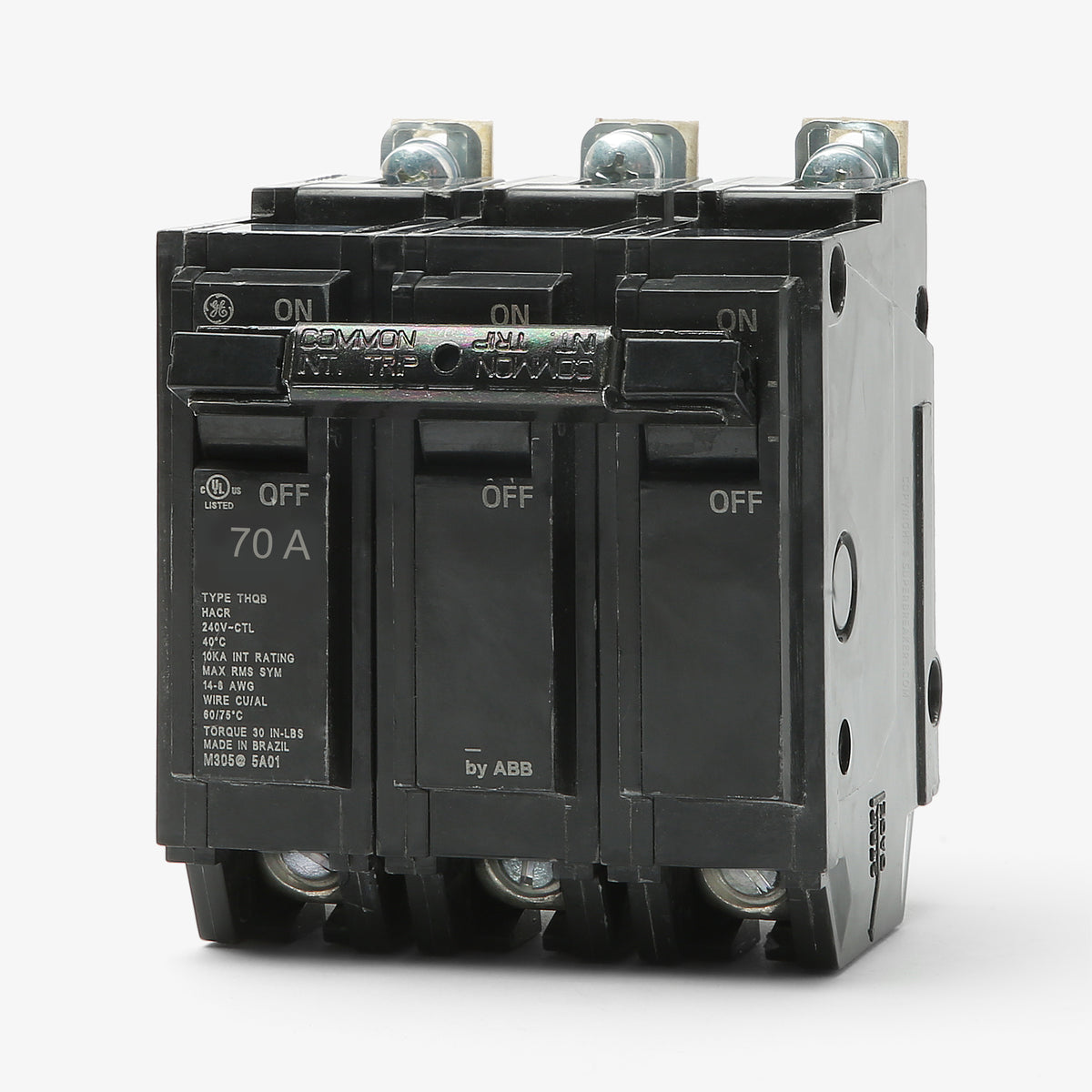

ABB / General Electric THHQB32070 Miniature Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
ABB / General Electric
THHQB32070
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB32070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB32070 - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB32070 - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32070 |
| Series | THHQB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THHQB32070 - 70A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32070-R |
| Series | THHQB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHHQB32090
90A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32050
50A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32045
45A 3 Pole Miniature Circuit Breaker
Description
Designed for heavy-duty applications, this 70A, three-pole GE miniature circuit breaker delivers reliable overcurrent protection. It operates at 240VAC for commercial or industrial facilities. The THHQB32070 utilizes a bolt-on mounting style for secure integration into GE AQ, A-Series, and ReliaGear panelboards. Load lugs accommodate up to 1/0 AWG wire. Rated at 22 kAIC, this Q-Line breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32070 |
| Series | THHQB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the THHQB32070?
This bolt-on breaker is designed for use in GE A-Series, AQ, and AQC panelboards, as well as ReliaGear lighting panels.
Can I use this breaker in a standard residential load center?
No. The THHQB32070 is a bolt-on circuit breaker intended for commercial panelboards. Standard residential load centers typically require plug-in style breakers, such as the GE THQL series.
What is the difference between the THQB and THHQB breaker series?
Both are 1-inch wide per pole bolt-on breakers that fit the same panelboards. The primary difference is the interrupting capacity. The standard THQB series is rated at 10kAIC, while the THHQB series offers a higher interrupting rating of 22kAIC.
How much physical space does this 3-pole breaker occupy in the panel?
GE Q-Line breakers are 1 inch wide per pole. This 3-pole breaker requires 3 inches of continuous space on the panelboard bus.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) and Instantaneous (I) protection. The Long-Time function protects against sustained overloads, while the Instantaneous function trips immediately during a short circuit.
Does the THHQB32070 provide GFCI or AFCI protection?
No. This is a standard thermal-magnetic circuit breaker. It provides overload and short-circuit protection but does not include Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) features.
