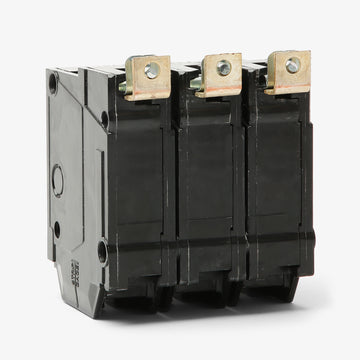

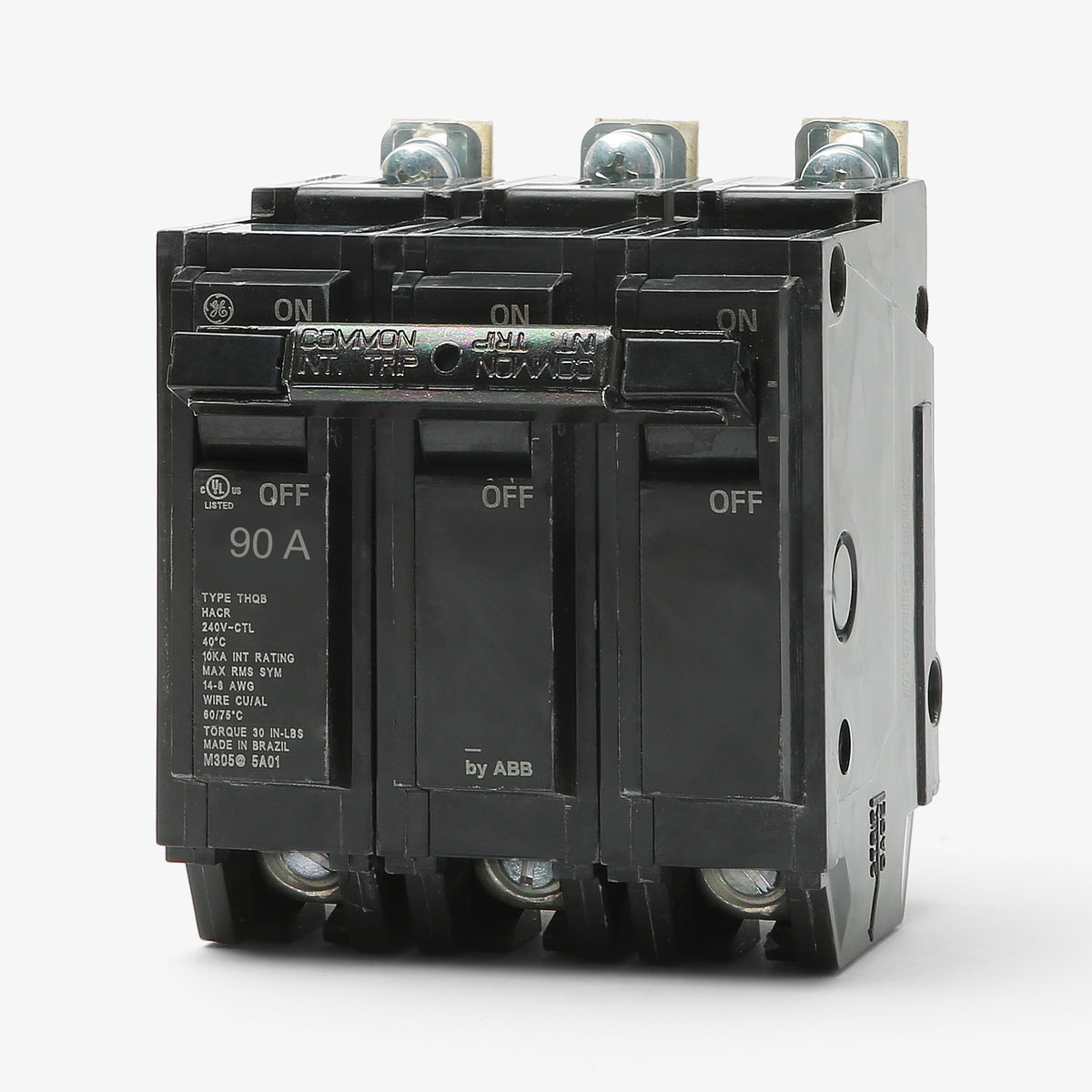

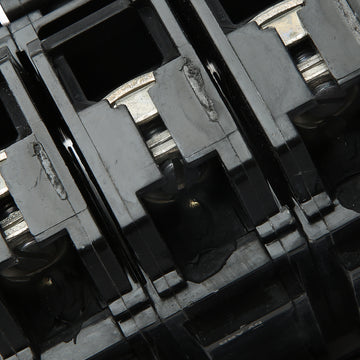

ABB / General Electric THHQB32090 Miniature Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
ABB / General Electric
THHQB32090
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB32090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB32090 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB32090 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32090 |
| Series | THHQB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Reverse Feed |
Sold out
Quantity
ABB / General Electric THHQB32090 - 90A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32090-R |
| Series | THHQB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Reverse Feed |
Similar Items
ABB / General ElectricTHHQB32070
70A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32060
60A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32050
50A 3 Pole Miniature Circuit Breaker
Description
Built to handle commercial and industrial electrical loads, this 90-amp miniature breaker provides reliable long-time and instantaneous protection. It fastens into GE A-Series, AQ, and ReliaGear panelboards using a secure bolt-on mounting style. Featuring a 22kAIC rating at 240VAC, the device incorporates quick-make/quick-break mechanisms and an internal common trip to maintain safety across all three phases during fault conditions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32090 |
| Series | THHQB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
5 answersWhat panelboards are compatible with the THHQB32090?
This bolt-on Q-Line breaker is designed for use in GE A-Series, GE AQ, and ABB ReliaGear lighting panelboards. It is not compatible with residential PowerMark Gold load centers, which require plug-on breakers.
What is the difference between the THQB32090 and THHQB32090?
Both are 90-amp, 3-pole, bolt-on Q-Line breakers, but they have different interrupting ratings. The standard THQB32090 is rated at 10kAIC, while the THHQB32090 has a higher interrupting capacity of 22kAIC at 240VAC.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, GE Q-Line breakers like the THHQB32090 are now manufactured and branded under ABB, though they remain exact replacements for legacy GE installations.

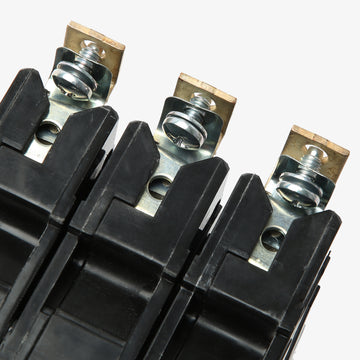

What are the wire size and torque specifications for the box lugs?
The terminals accept 6 to 1/0 AWG copper or 4 to 1/0 AWG aluminum wire. The recommended tightening torque is 45 in-lb for #6 to #4 AWG wire, and 50 in-lb for #3 to 1/0 AWG wire.
Does this breaker include ground fault or arc fault protection?
No. The THHQB32090 is a standard thermal-magnetic breaker with long-time and instantaneous (LI) trip functions. It does not provide GFCI or AFCI protection.
