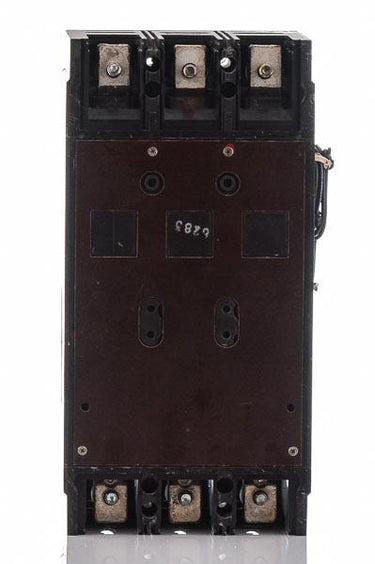

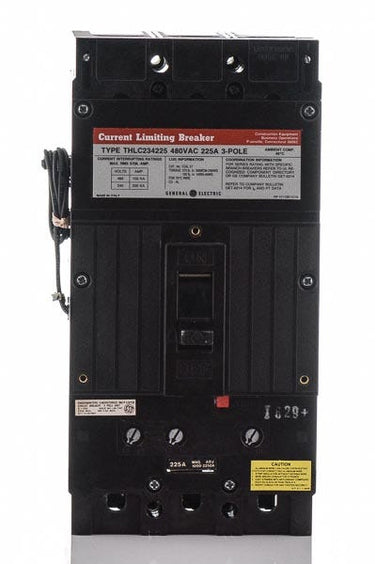

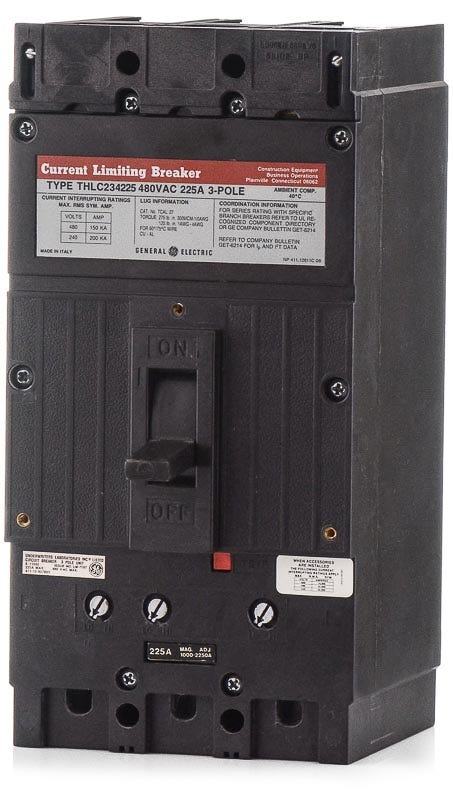

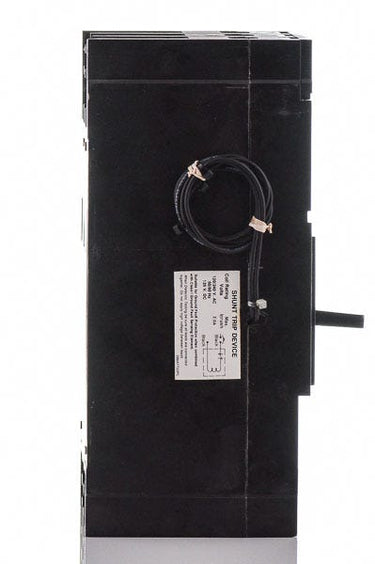

ABB / General Electric THLC234225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
ABB / General Electric
THLC234225
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC234225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THLC234225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTHLC236175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC234175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC234125
125A 3 Pole Molded Case Circuit Breaker
Description
The GE THLC234225 is a high-performance 3-pole, 225A current-limiting molded case circuit breaker designed for commercial power distribution. It mounts securely into GE A-Series panelboards, Spectra Series panels, and standard motor control centers via a bolt-on connection. Equipped with a thermal-magnetic trip unit featuring adjustable magnetic settings, this HACR-rated breaker provides superior 200kAIC protection at 480VAC to safeguard downstream electrical components from severe overloads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC234225-R |
| Series | THLC |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC |
| Frame Type | THLC2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, GE A-Series Panelboards, GE Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip, Common Trip |
| Special Features | Current Limiting |
Product FAQs
5 answersWhich panelboards and enclosures are compatible with the THLC234225 breaker?
This bolt-on breaker is designed for use in GE Spectra Series panelboards, GE A-Series panelboards, GE switchboards, and motor control centers.
What wire sizes and materials are accepted by the lugs on the THLC234225?
The included lugs accept wire gauges ranging from 4 AWG to 300 kcmil. They are rated for both copper (Cu) and aluminum (Al) conductors.
How does the trip unit function on the THLC234225?
This breaker features a thermal magnetic trip unit with Long-Time and Instantaneous (LI) functions. The thermal element is fixed, while the magnetic instantaneous trip setting is adjustable to coordinate with downstream loads.
What does the current limiting feature of the THLC234225 provide?
As a current limiting breaker, it is designed to clear faults extremely fast, reducing the peak let-through current and energy. This provides enhanced protection for downstream circuits and allows for a high 200kAIC interrupting rating at 480VAC.
Will the THLC234225 arrive with ABB or General Electric branding?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this breaker may feature either GE or ABB branding. Both versions are identical in form, fit, and function.
