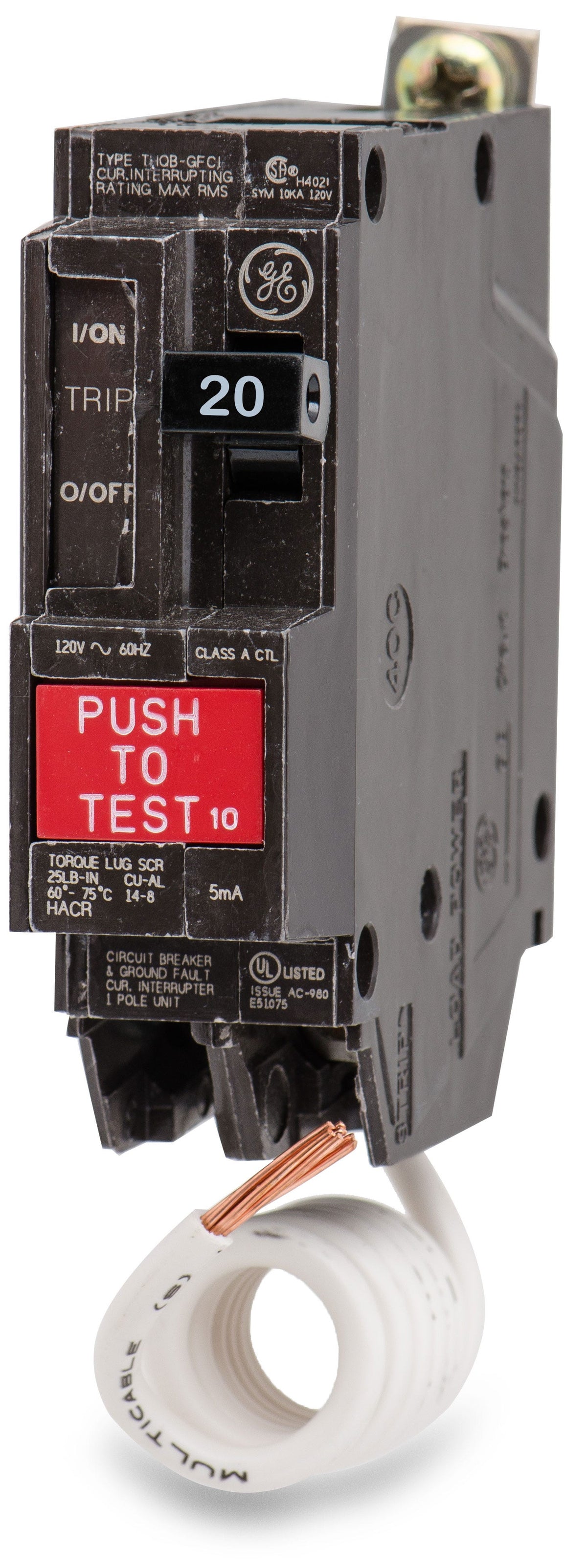

ABB / General Electric THQB1120GF GFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1120GF
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1120GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1120GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB1120GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1120GF |
| Series | THQB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Self-Test |
Sold out
Quantity
ABB / General Electric THQB1120GF - 20A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1120GF-R |
| Series | THQB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Self-Test |
Similar Items
ABB / General ElectricTHQB1115GF
15A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB1115GFT
15A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB1130GFI
THQB1130GF - 30A GFCI Miniature Circuit Breaker
Description
Rated for 20 amps at 120V, this 1-pole GFCI breaker combines thermal-magnetic trip technology with 5mA Class A ground-fault detection. It is engineered for commercial and industrial environments requiring strict adherence to NEC safety codes for wet locations. This unit bolts into GE A-Series panelboards, utilizing box lug terminals that accept 14-8 AWG copper or 12-8 AWG aluminum wiring. The breaker delivers a 10kAIC interrupting capacity and is SWD rated for fluorescent lighting loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1120GF |
| Series | THQB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Self-Test |
Product FAQs
7 answersWhich panelboards are compatible with the THQB1120GF breaker?
This breaker is designed to fit GE A-Series panelboards, including AQ, AE, and AD lighting panels that accept bolt-on Q-Line circuit breakers.
Are THQB and THQL circuit breakers interchangeable in the same panel?
No, they are not interchangeable. While both belong to the GE Q-Line family, THQB breakers feature a bolt-on mounting style for commercial panels, whereas THQL breakers use a plug-on connection typically found in residential load centers.
What is the ground fault trip threshold for the THQB1120GF?
This breaker provides Class A personnel protection with a 5mA ground fault trip threshold. It is designed to interrupt the circuit quickly if current leakage reaches this level to protect users from electrical shock.
Does this GFCI breaker require a dedicated neutral connection?
Yes, it includes a built-in pigtail neutral wire that must be securely connected to the neutral bar in your panel for the ground fault detection circuitry to function properly.
How does a bolt-on breaker like the THQB1120GF secure to the panel?
It mounts directly to the panel bus bar using a screw. This bolted connection provides a secure, vibration-proof contact that is preferred in commercial and industrial applications.
Why is this THQB breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, THQB Q-Line circuit breakers may feature either the ABB or General Electric brand name on the label, but they are the exact same component and fully compatible.
How often should I test the ground fault function on this breaker?
It is recommended to test the GFCI function monthly using the integrated test button. Pushing this button simulates a ground fault and should immediately trip the breaker, confirming the safety mechanism is working.
