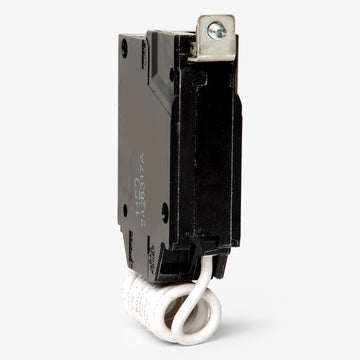

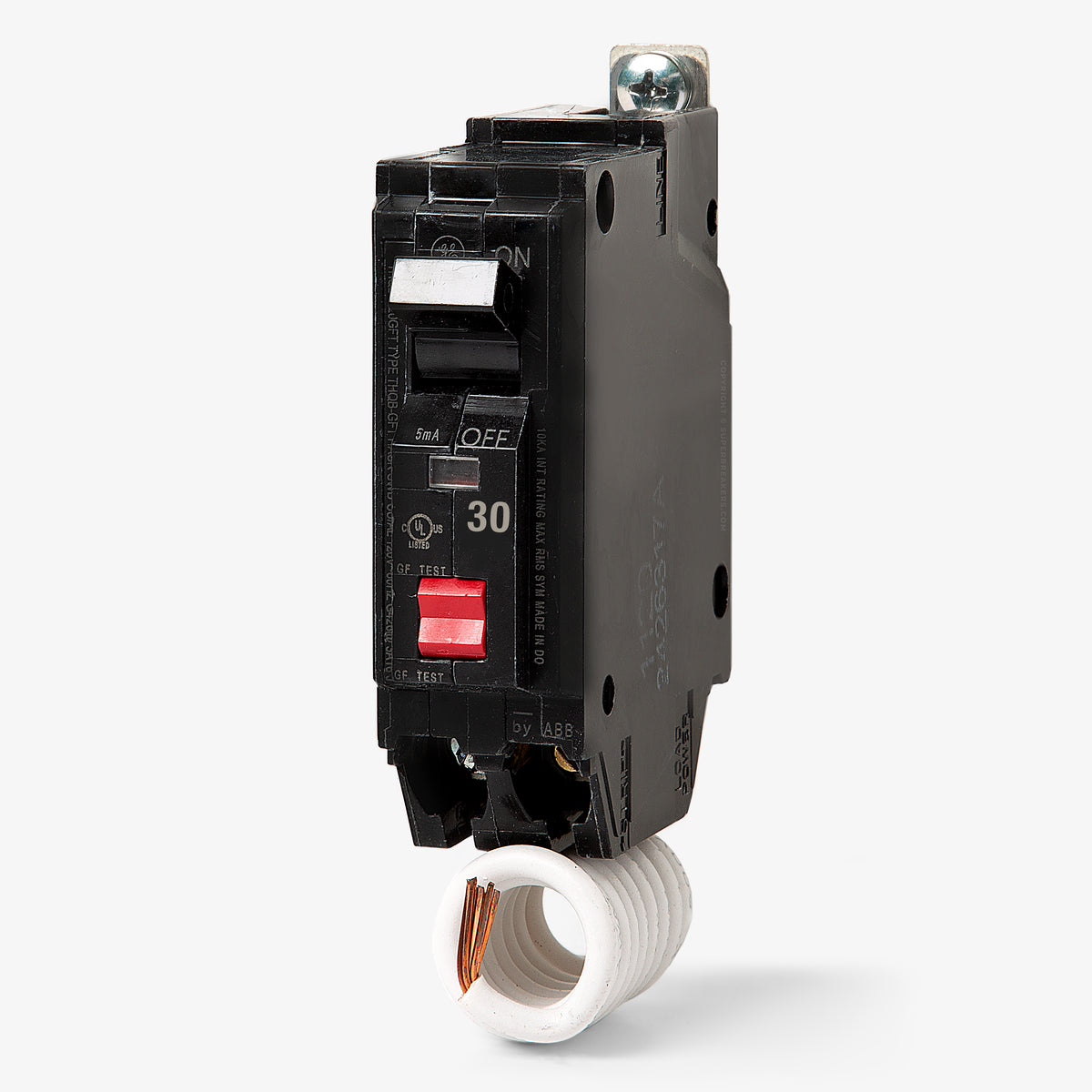

ABB / General Electric THQB1130GFT GFCI Miniature Circuit Breaker
- 30A
- 1 Pole

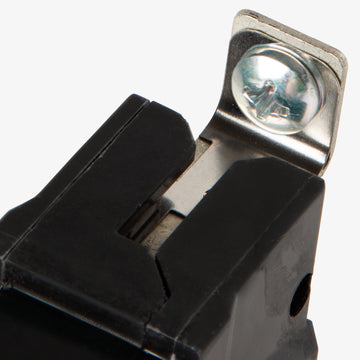

- Bolt-On
ABB / General Electric
THQB1130GFT
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1130GFT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1130GFT - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB1120GF
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB1120GFT
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB1115GFT
15A GFCI Miniature Circuit Breaker
Description
Serving as a drop-in replacement for the older THQB1130GF, this 30A single-pole GFCI breaker delivers 10kAIC of thermal-magnetic protection at 120/240V. It installs into GE A-Series panelboards and AQ Lighting Panels using a secure bolt-on connection. The unit incorporates a self-test feature to continuously monitor its Class A 5mA ground fault circuitry. This breaker is ideal for commercial applications requiring strict adherence to NEC safety standards in damp locations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1130GFT |
| Series | THQB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Self-Test Feature |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Quick-Make/Quick-Break |
Product FAQs
6 answersCan I install the THQB1130GFT in a standard GE residential load center?
No. The THQB1130GFT is a bolt-on circuit breaker designed for GE A-Series panelboards and AQ lighting panels. Standard GE residential load centers, such as the PowerMark Gold series, require plug-on THQL breakers and will not accept bolt-on THQB models.
What does the GFT suffix mean on this GE circuit breaker?
The GFT suffix indicates that the breaker is a Ground Fault Circuit Interrupter (GFCI) equipped with a self-test feature. It provides Class A ground fault protection, tripping at a 5mA threshold to protect personnel from electrical shock.

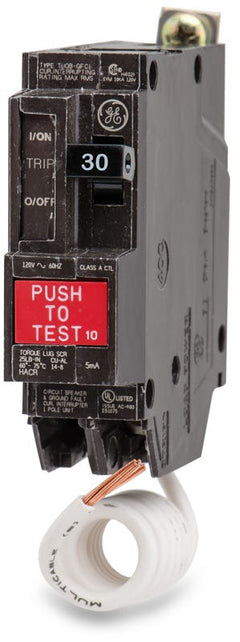

Is the THQB1130GFT a direct replacement for the older THQB1130GF?
Yes. The THQB1130GFT serves as a direct, drop-in replacement for the discontinued THQB1130GF. The T simply designates the addition of a modern self-test feature required by updated UL standards, while the physical dimensions and electrical ratings remain identical.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, the THQB1130GFT may arrive with either ABB or GE branding, but the breaker itself, its UL listings, and its panel compatibility are exactly the same.

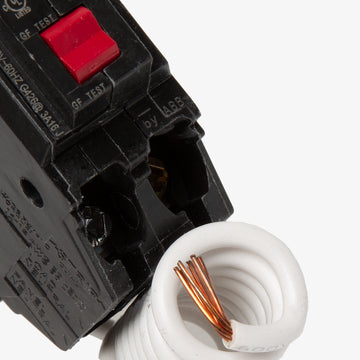

How is the neutral connection wired on the THQB1130GFT?
This breaker features a pigtail neutral wire. During installation, the coiled white pigtail must be connected directly to the panelboard's neutral bus bar to ensure the ground fault detection circuitry functions correctly.
What type of trip functions does the THQB1130GFT utilize?
This breaker uses a fixed Thermal Magnetic trip unit with LIG functions. This provides Long-Time protection against overloads, Instantaneous protection against short circuits, and Ground Fault protection for personnel safety.
