ABB / General Electric THQB1135 Miniature Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1135
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1135
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

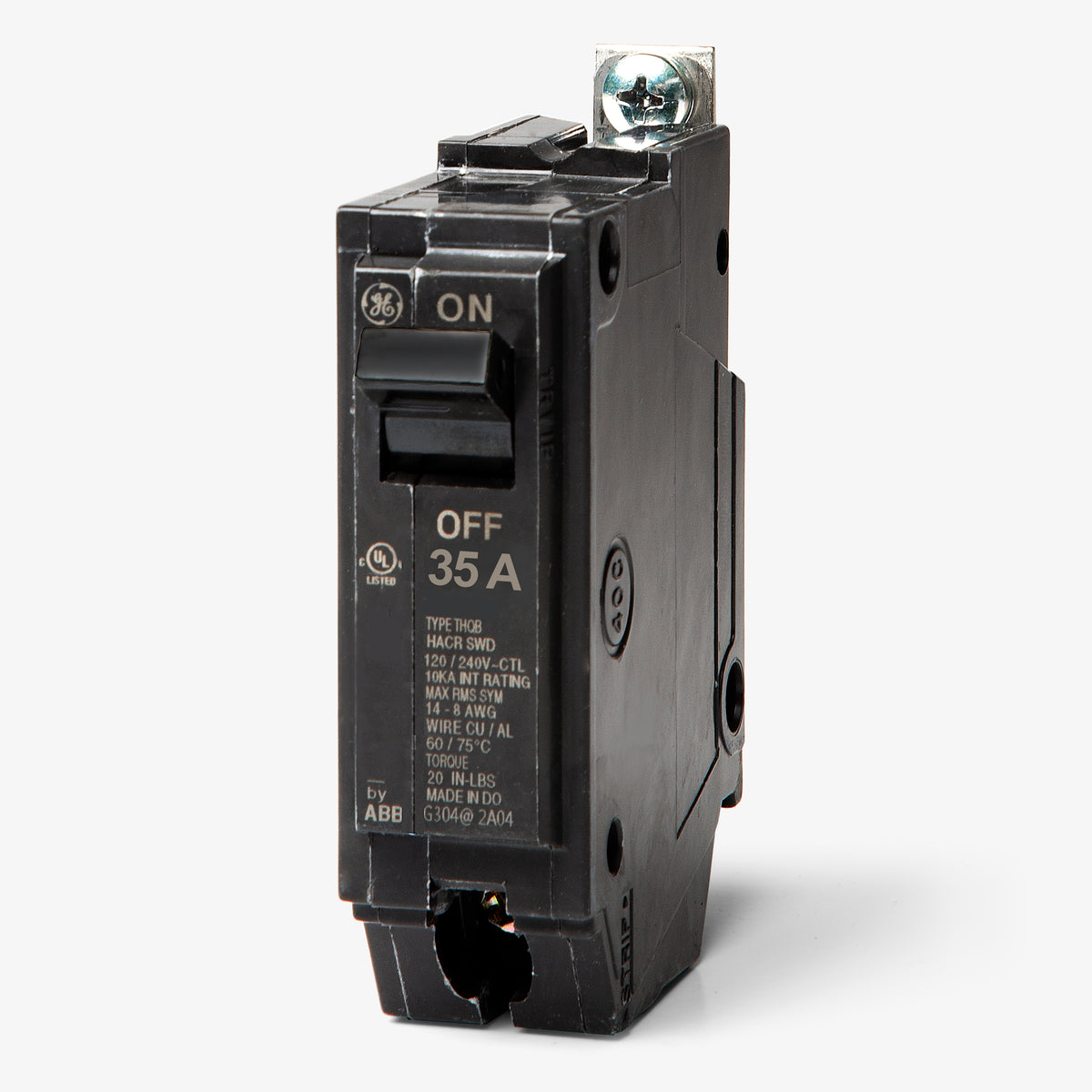

ABB / General Electric THQB1135 - 35A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB1130
30A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1130ST1
30A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1145
45A 1 Pole Miniature Circuit Breaker
Description
Rated for 35 amps, the GE THQB1135 is a single-pole miniature circuit breaker designed for commercial and industrial electrical systems. It utilizes a fixed thermal-magnetic trip unit to protect branch circuits from overloads and short circuits. This Q-Line breaker installs into GE A-Series panelboards using a sturdy bolt-on connection. The bolt-on design provides a highly reliable, vibration-proof contact with the panel bus bar.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1135 |
| Series | THQB |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the THQB1135?
This breaker is designed for use in GE A-Series panelboards, including AQ lighting panels that accept bolt-on Q-Line breakers.
Can I use this bolt-on THQB breaker in a load center that requires THQL breakers?
No. The THQB1135 features a bolt-on connection and cannot be installed in residential load centers designed for plug-in THQL or THQP breakers.
What are the recommended lug tightening torque specifications for this breaker?
For the box lugs on this breaker, the recommended torque is 40 in-lb for 8 AWG wire, 45 in-lb for 6 to 4 AWG wire, and 50 in-lb for 3 AWG wire.
Is there a difference between the ABB THQB1135 and the GE THQB1135?
No. ABB acquired GE Industrial Solutions, so breakers branded as ABB, GE, or ABB/GE with the THQB1135 catalog number are the exact same component.
Is the THQB1135 HACR rated for HVAC applications?
Yes, this thermal-magnetic circuit breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 35A overcurrent protection device.
Does GE manufacture a tandem or half-size version of the THQB bolt-on breaker?
No. GE THQB bolt-on breakers are only manufactured in a full 1-inch per pole width. Tandem or half-size configurations are not available for the bolt-on Q-Line series.
