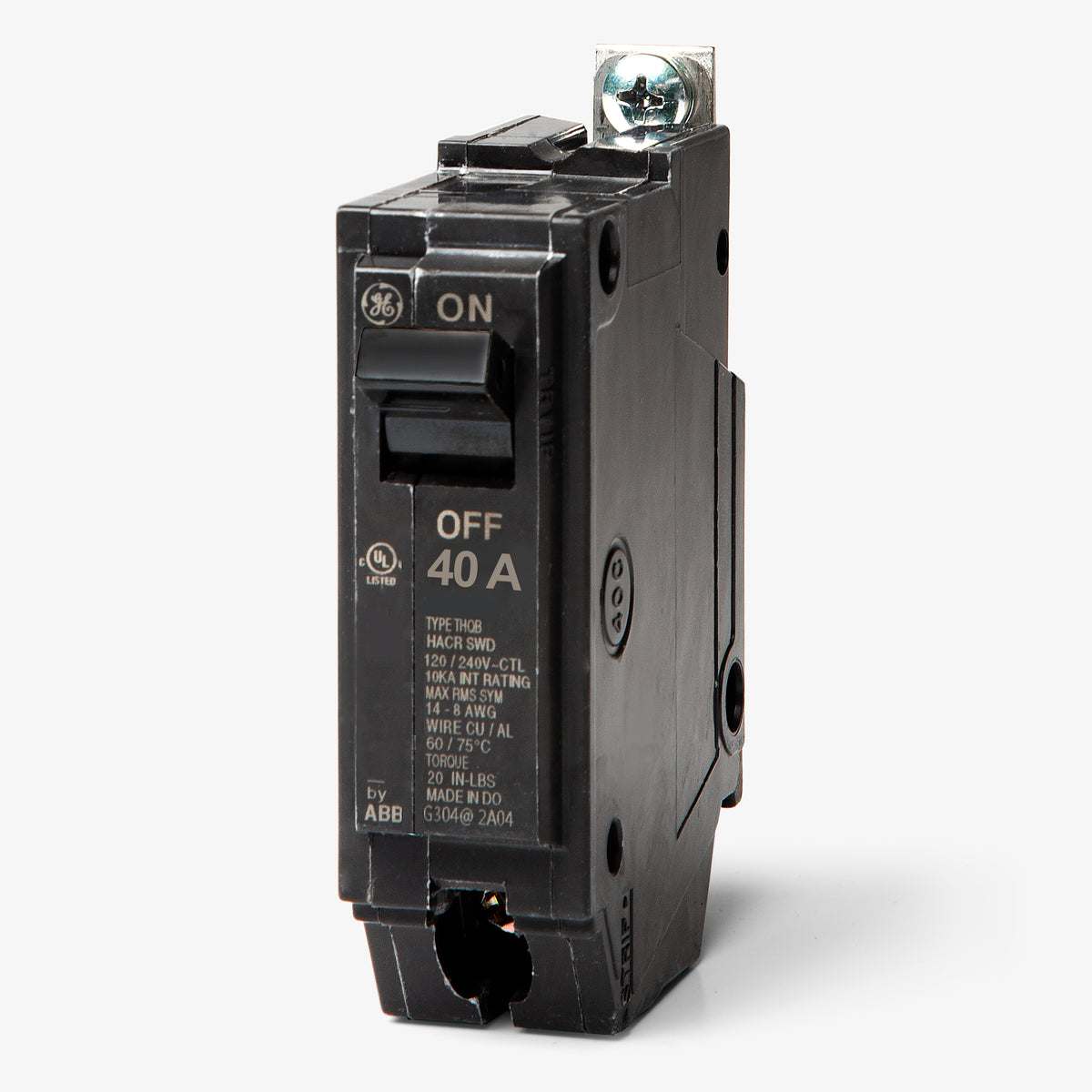

ABB / General Electric THQB1140 Miniature Circuit Breaker
- 40A
- 1 Pole

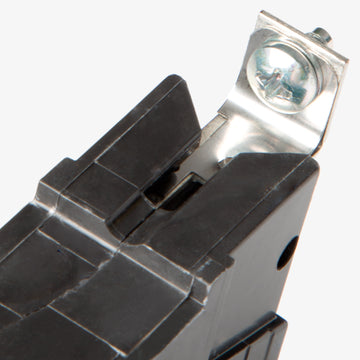

- Bolt-On
ABB / General Electric
THQB1140
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1140
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1140 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB1140 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1140 |
| Series | THQB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|

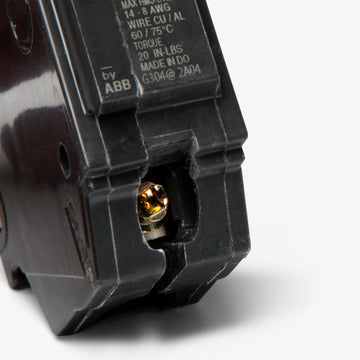

| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQB1140 - 40A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1140-R |
| Series | THQB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQB1135
35A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1150
50A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1130
30A 1 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, the GE THQB1140 is a 1-pole, 40A miniature breaker for commercial power distribution. It features a quick-make, quick-break mechanism for reliable operation. This unit mounts into GE A-Series panelboards and AQ lighting panels using a secure bolt-on connection. It accepts 8-3 AWG copper or aluminum wiring. Delivering a 10kAIC rating at 120/240VAC, it provides robust long-time and instantaneous protection. The breaker is also HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1140 |
| Series | THQB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersCan I install the THQB1140 in a GE PowerMark Gold load center?
No. The THQB1140 is a bolt-on circuit breaker designed specifically for GE A-Series panelboards and AQ lighting panels. PowerMark Gold load centers require plug-in THQL series breakers.
What are the lug tightening torque specifications for the THQB1140?
The required torque depends on the wire gauge being installed. Torque 8 AWG wire to 40 in-lb, 6 AWG to 4 AWG wire to 45 in-lb, and 3 AWG wire to 50 in-lb.
What is the 22kAIC equivalent of the THQB1140?
If your panel requires a 22kAIC interrupting rating, you cannot use the standard 10kAIC THQB1140. You must source the THHQB1140, which shares the same physical dimensions and mounting but offers the higher short-circuit rating.
Does the THQB1140 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic circuit breaker that provides long-time and instantaneous trip functions for overload and short-circuit protection. It does not contain GFCI or AFCI circuitry.
Will the THQB1140 fit in a GE RE-Series panelboard?
No. GE RE-Series panelboards are designed to accept TEY frame circuit breakers. The THQB1140 is only compatible with A-Series and AQ lighting panels.
