ABB / General Electric THQB1145 Miniature Circuit Breaker
- 45A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1145
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1145
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

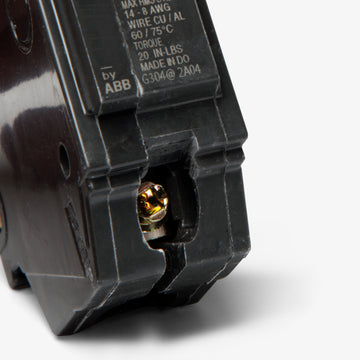

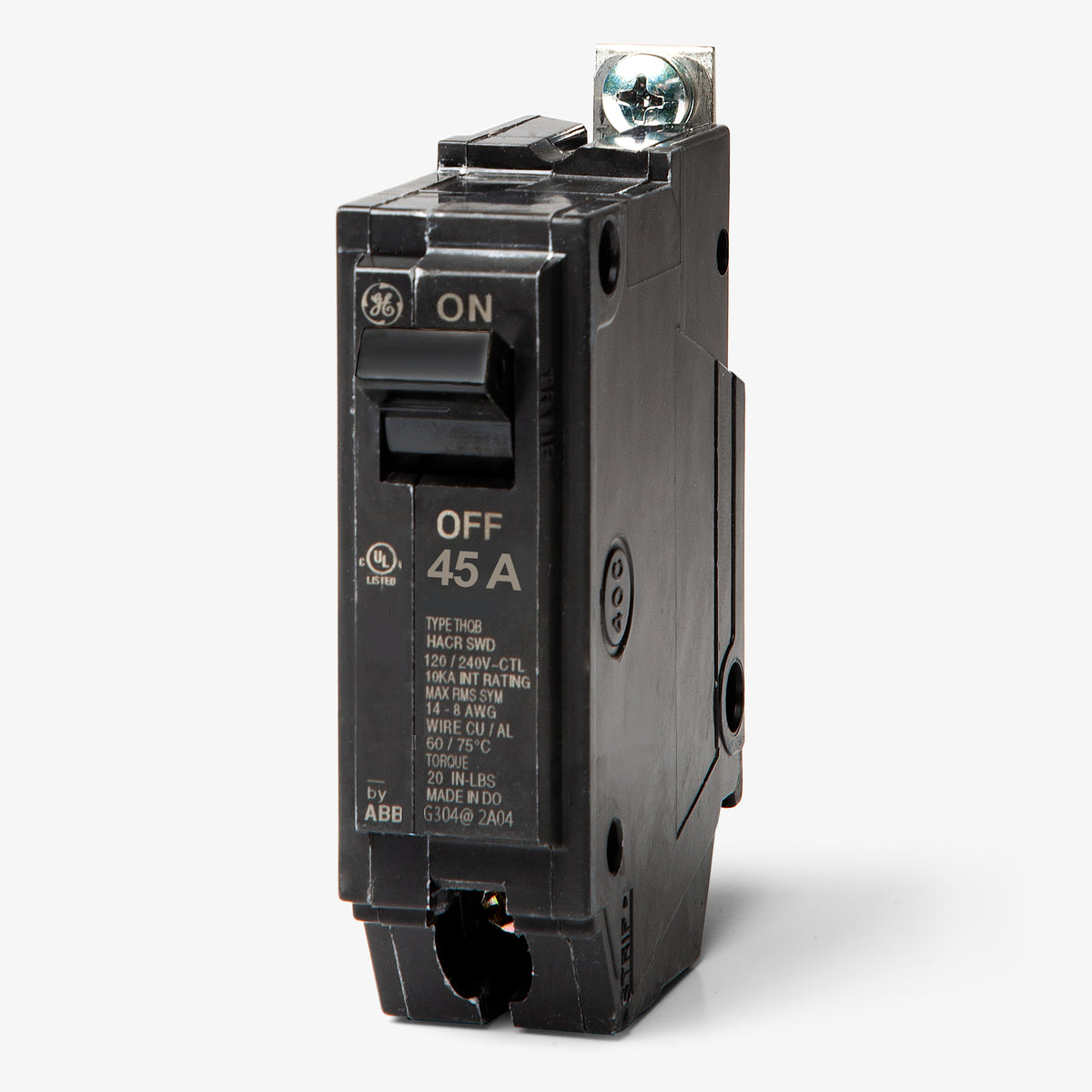

ABB / General Electric THQB1145 - 45A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB1140
40A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1135
35A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1160
60A 1 Pole Miniature Circuit Breaker
Description
Providing reliable thermal-magnetic protection, the GE THQB1145 is a 1-pole, 45A miniature breaker from the Q-Line family. It features a quick-make, quick-break mechanism for safe operation. This breaker bolts into GE A-Series panelboards and AQ lighting panels, and is suitable for reverse feed applications to offer flexibility in complex configurations. With a 10kAIC rating at 120/240VAC, it delivers dependable instantaneous protection. The unit is also HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1145 |
| Series | THQB |
| Amperage | 45A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the THQB1145 circuit breaker?
This bolt-on breaker is designed specifically for use in GE A-Series panelboards and GE AQ lighting panels. It is not compatible with standard residential plug-in load centers.
What is the difference between GE THQB and THQL circuit breakers?
THQB breakers feature a bolt-on mounting style intended for commercial panelboards. THQL breakers are plug-in devices designed for residential load centers. Because of the different mounting configurations, they are not interchangeable.
Can I use a THHQB breaker in place of a THQB1145?
Yes, THHQB breakers share the same physical dimensions and bolt-on mounting as THQB breakers but offer a higher interrupting rating of 22kAIC compared to the 10kAIC of the standard THQB line.
What are the recommended lug torque specifications for the THQB1145?
For the accepted 8-3 AWG wire range, the recommended torque is 40 in-lb for 8 AWG, 45 in-lb for 6-4 AWG, and 50 in-lb for 3 AWG conductors. Always verify with the manufacturer label on the breaker before finalizing the installation.
Is the THQB1145 circuit breaker HACR rated?
Yes, GE THQB series circuit breakers are HACR rated, making them suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific designation.
Does the THQB1145 accept both copper and aluminum wiring?
Yes, the box lugs on this breaker are rated for both copper and aluminum conductors within the 8-3 AWG size range. When terminating aluminum wire, ensure a suitable anti-oxidant compound is applied to the stripped conductor.
