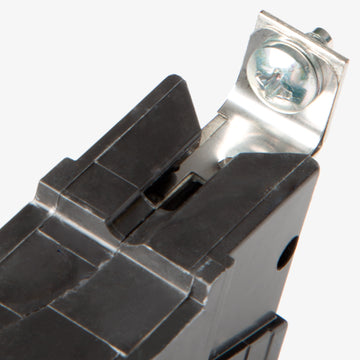

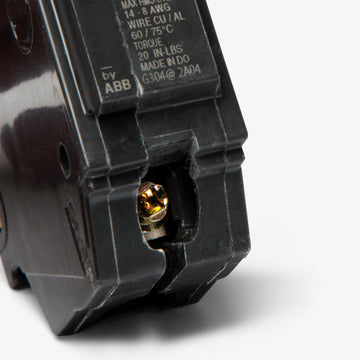

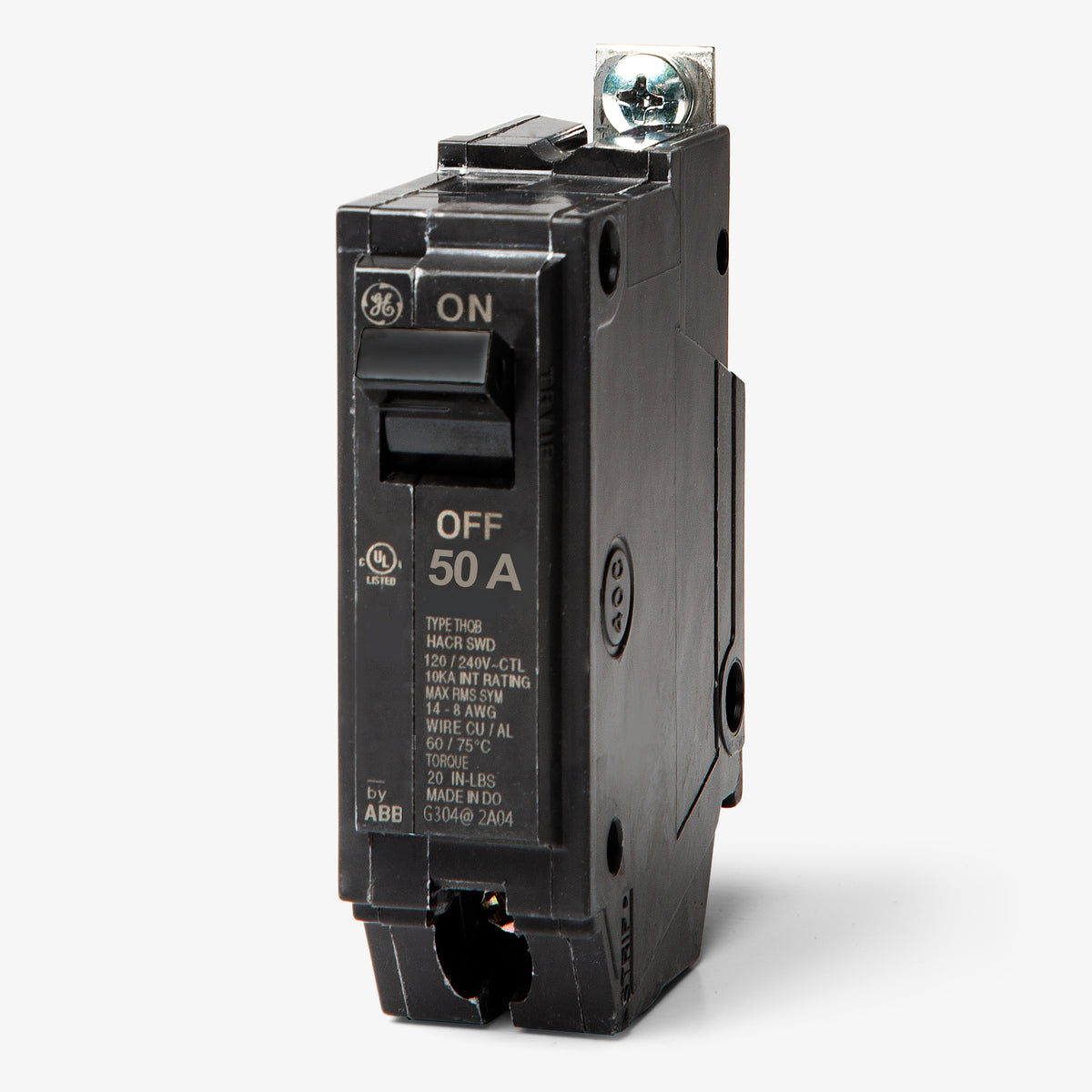

ABB / General Electric THQB1150 Miniature Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1150
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB1150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1150 |
| Series | THQB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQB1150 - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1150-R |
| Series | THQB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Similar Items
ABB / General ElectricTHQB1160
60A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1140
40A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1135
35A 1 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial applications, the THQB1150 is a 1-pole, 50-amp miniature circuit breaker from GE's Q-Line series. It provides reliable thermal-magnetic protection with standard long-time and instantaneous (LI) trip functions. This unit installs into GE A-Series panelboards and AQ lighting panels using a secure bolt-on connection. It accepts 8-3 AWG copper or aluminum wire via standard box lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1150 |
| Series | THQB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersCan I install the THQB1150 in a standard GE Powermark Gold load center?
No. The THQB1150 is a bolt-on circuit breaker designed specifically for GE A-Series panelboards and AQ lighting panels. Powermark Gold load centers require plug-on breakers like the THQL series.
What is the difference between the THQB1150 and the THQL1150?
The primary difference is the mounting style. The THQB1150 features a bolt-on connection for commercial panelboards, whereas the THQL1150 is a plug-on breaker designed for residential load centers.
Can the THQB1150 be used to supply a 240V load?
No. Although it carries a 120/240VAC system rating, the THQB1150 is a 1-pole breaker and only supplies 120V. A 2-pole breaker like the THQB2150 is required for dedicated 240V loads.
Is the THQB1150 suitable for heating and cooling equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific rating.
What wire sizes are accepted by the lugs on the THQB1150?
The box lugs on this 50A breaker accommodate 8 AWG to 3 AWG wire. They are rated for both copper and aluminum conductors.
Does the THQB1150 provide ground fault or arc fault protection?
No, this is a standard thermal magnetic breaker. It provides overload and short-circuit protection but does not include GFCI or AFCI capabilities.
Will this breaker arrive with ABB or GE branding?
Because ABB acquired GE Industrial Solutions, the THQB1150 may feature either ABB or General Electric branding. The form, fit, and function remain identical regardless of the logo.
