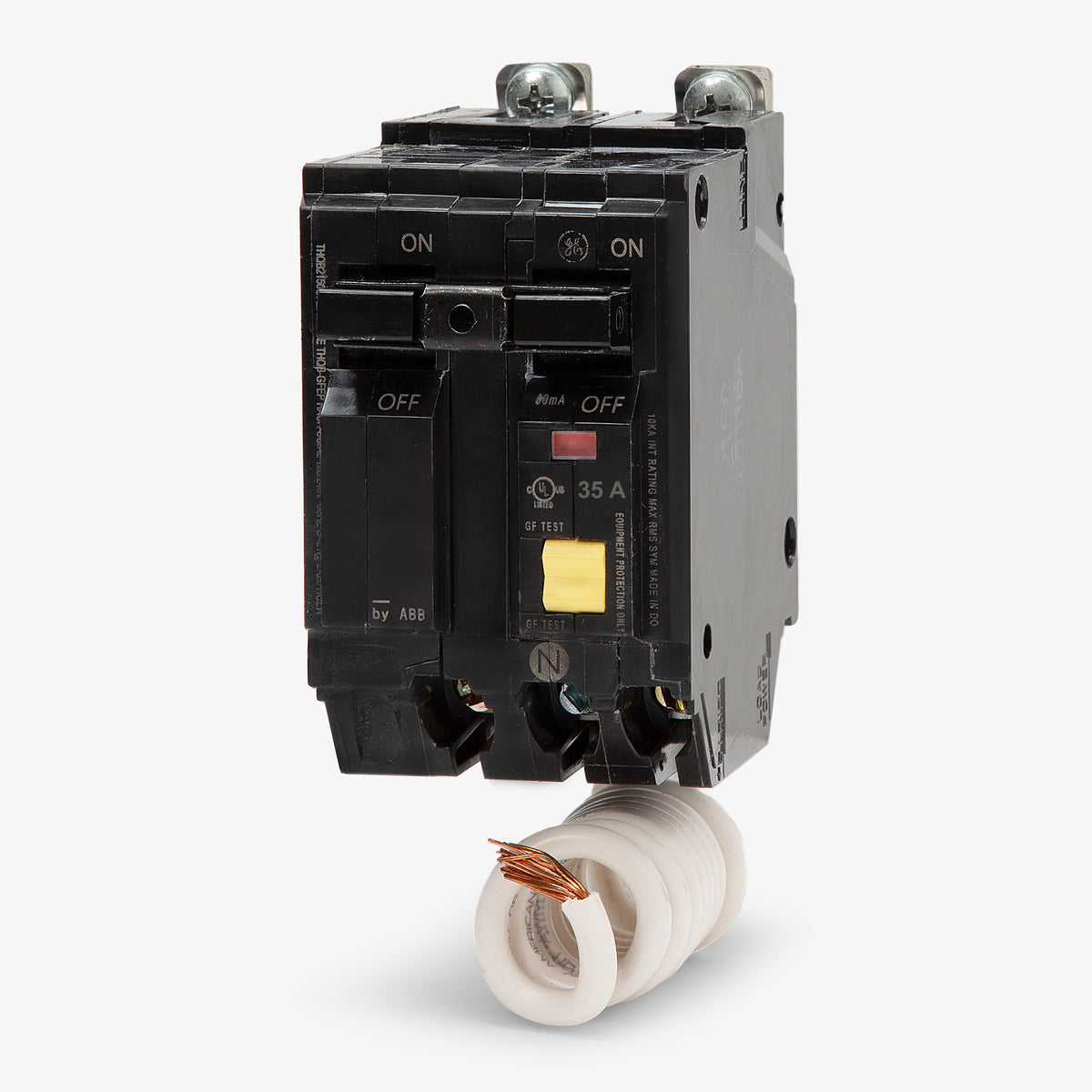

ABB / General Electric THQB2135GFEP2 GFEP Miniature Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2135GFEP2
GFEP Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2135GFEP2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2135GFEP2 - 35A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB2140GFEP
40A GFEP Miniature Circuit Breaker
ABB / General ElectricTHQB2130GFEP
30A GFEP Miniature Circuit Breaker
ABB / General ElectricTHQB2150GFEP2
50A GFEP Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, the GE THQB2135GFEP2 delivers reliable 30mA ground fault equipment protection. Unlike standard 5mA personnel GFCIs, this 35-amp breaker is specifically calibrated to prevent nuisance tripping while safeguarding heavy machinery and heat tracing equipment from damaging electrical faults. The unit mounts securely into GE A-Series panelboards and AQ lighting panels via a robust bolt-on connection. It features a 10kAIC rating at 120/240VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Ground Fault Equipment Protection (30mA) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Internal Common Trip |
Product FAQs
6 answersWhat is the difference between this GFEP breaker and a standard GFCI breaker?
This Ground Fault Equipment Protection (GFEP) breaker has a 30mA trip threshold designed to protect machinery, heat trace cables, and deicing systems. Standard GFCI breakers have a 5mA trip threshold intended for personnel protection. The 30mA rating prevents nuisance tripping on equipment with higher natural leakage currents.
Which panelboards are compatible with the THQB2135GFEP2?
This breaker is designed exclusively for GE A-Series panelboards and GE AQ lighting panels that accept bolt-on Q-Line breakers. It cannot be installed in standard residential load centers that require plug-on connections.
Can I use this bolt-on breaker in a plug-on GE load center?
No. The THQB series features a bolt-on connection designed for commercial and industrial panelboards. If your panel requires plug-on breakers, you will need the THQL equivalent instead.
What type of protection does the LIG trip function provide?
The Long-Time, Instantaneous, and Ground-Fault (LIG) designation means this thermal-magnetic breaker protects against overloads, short circuits, and ground faults of 30mA or greater. It also features an internal common trip mechanism that disconnects both poles simultaneously during a fault.
Are there interchangeable alternatives from other brands for this GE THQB breaker?
No. You must use GE THQB breakers in GE A-Series and AQ panels to maintain UL listing and compliance. Breakers from other manufacturers are not listed or classified for use in these specific GE bolt-on panelboards.

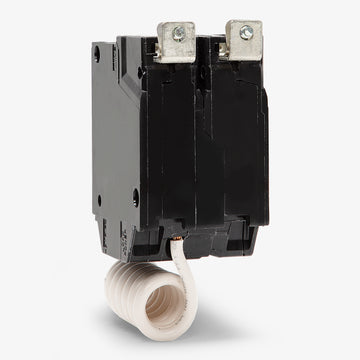

How is the neutral connection handled on this GFEP breaker?
This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the panelboard neutral bus bar to ensure the ground fault equipment protection circuitry functions correctly.
